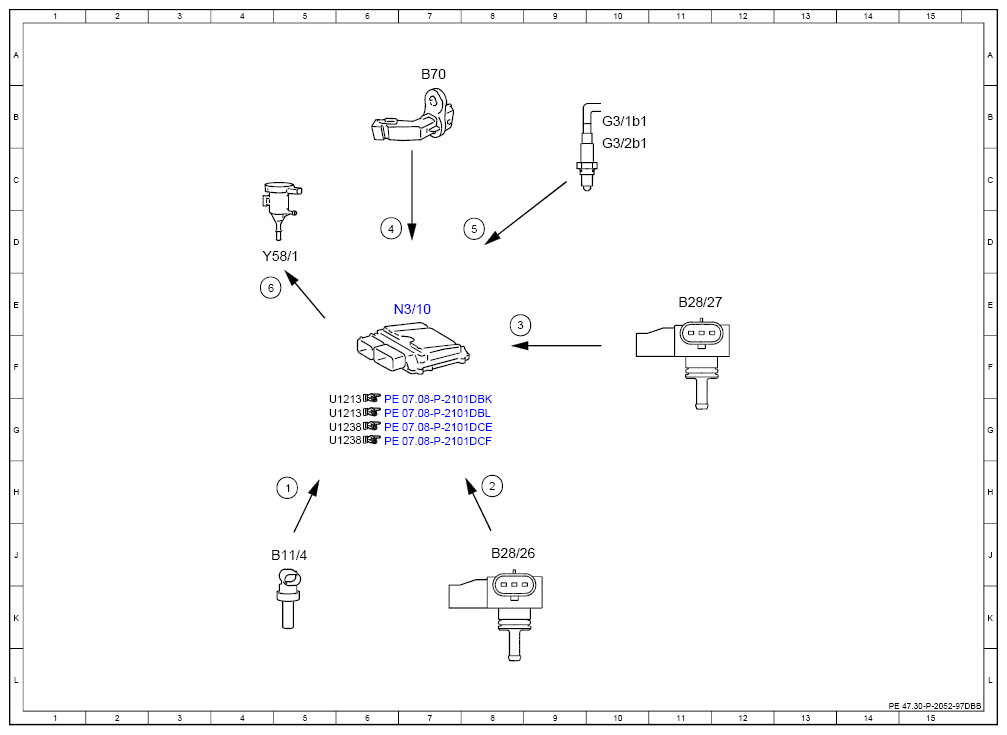

Electrical Function Diagram For Purging Function - PE47.30-P-2052-97DBB
Engine 264.9 in model 213, 238 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Coolant temperature sensor, signal | 5H |
| 2 | Pressure and temperature sensor upstream of throttle valve, signal | 8H |
| 3 | Pressure and temperature sensor downstream of throttle valve, signal | 9E |
| 4 | Crankshaft Hall sensor, signal | 6D |
| 5 | Oxygen sensor, sensor element, signal | 8D |
| 6 | Purging switchover valve, actuation | 4E |
| B11/4 | Coolant temperature sensor | 5J |
| B28/26 | Pressure and temperature sensor upstream of throttle valve | 8J |
| B28/27 | Pressure and temperature sensor downstream of throttle valve | 11E |
| B70 | Crankshaft Hall sensor | 7A |
| G3/1b1 | Sensor element of oxygen sensor downstream of catalytic converter | 10B |
| G3/2b1 | Sensor element of oxygen sensor upstream of catalytic converter | 10C |
| N3/10 | ME-SFI [ME] control unit | 7E |
| Y58/1 | Purge control valve | 4D |
