Overview Of System Components For Gasoline Injection And Ignition System With Direct Injection - GF07.70-P-9998MNF
Engine 176.9 in model 463
as of model year 2016 up to model year 2019

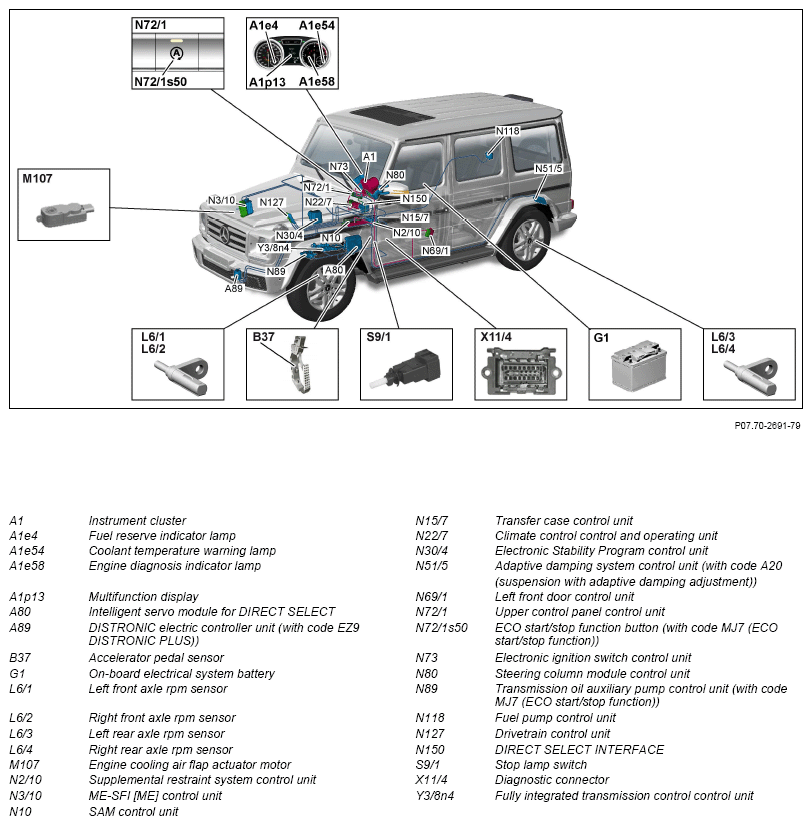

Vehicle view of model 463.2

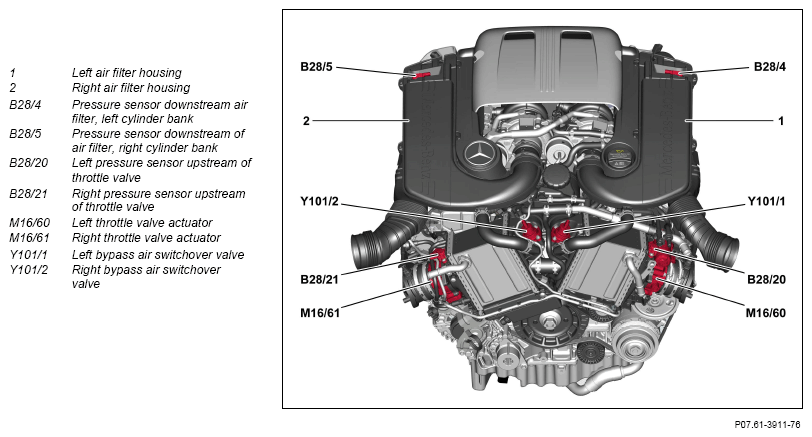

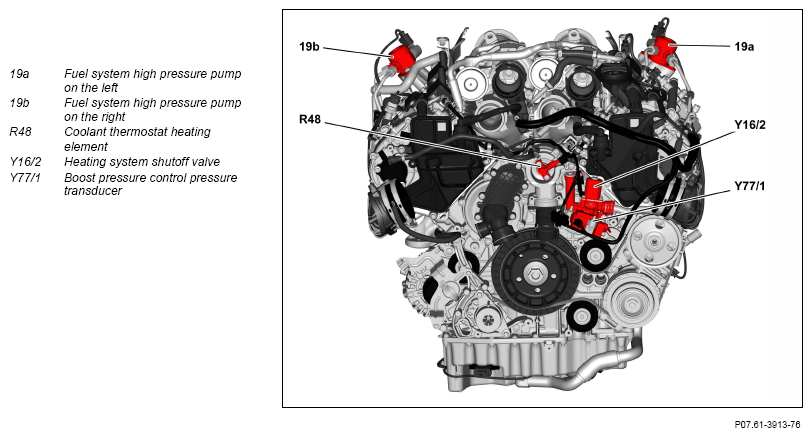

View of engine from top front

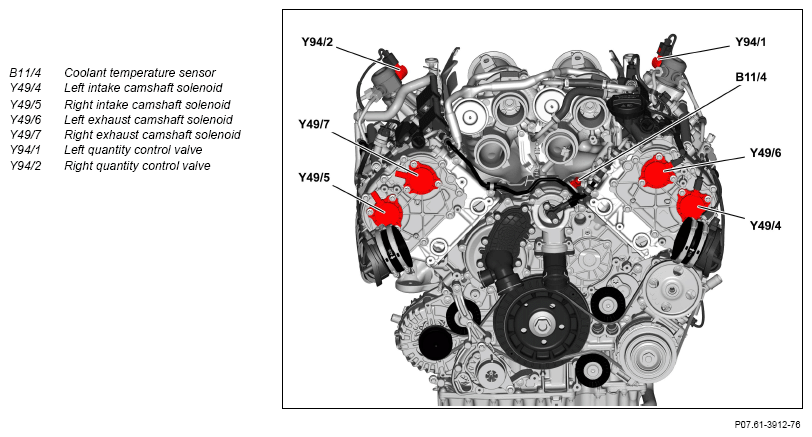

Front view of engine
Front view of engine

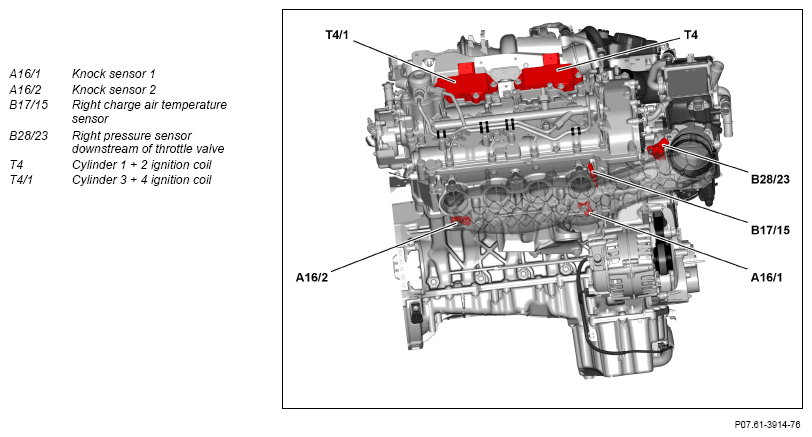

View of engine from right
View of engine from right rear

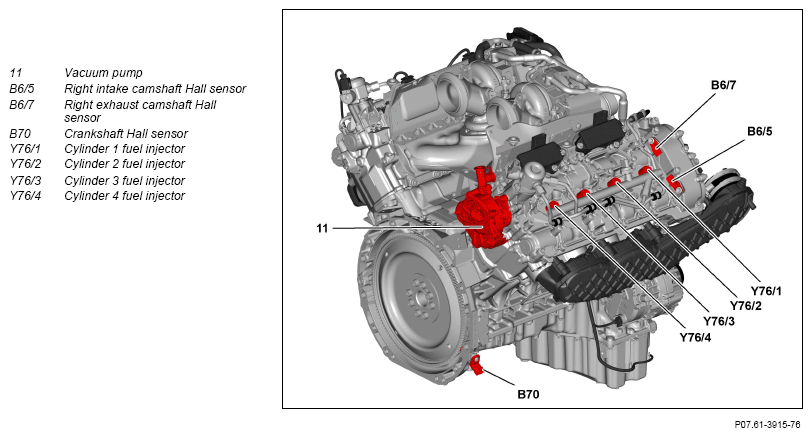

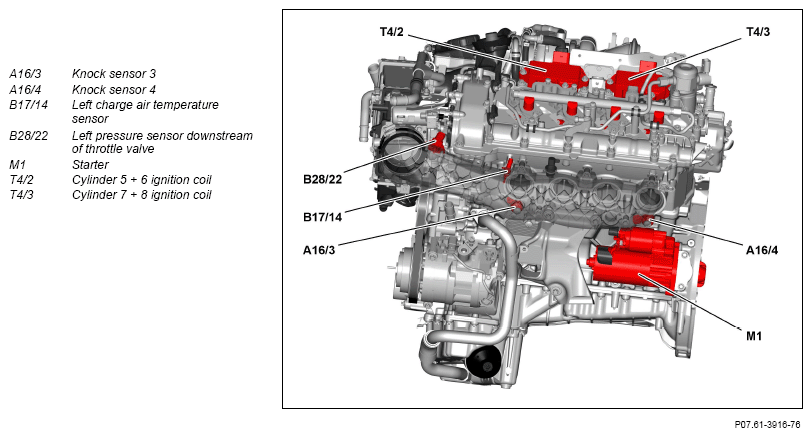

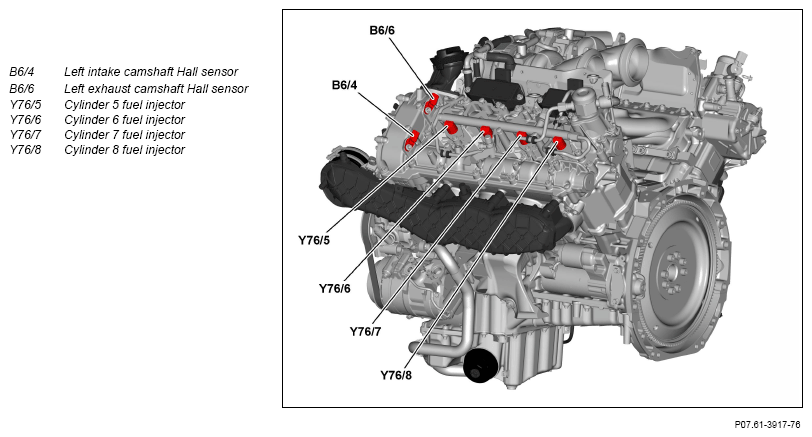

View of engine from left
View of engine from left rear

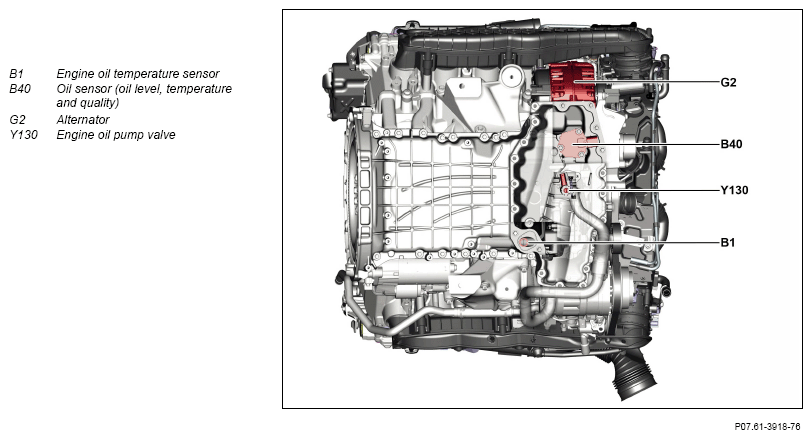

View of engine from below

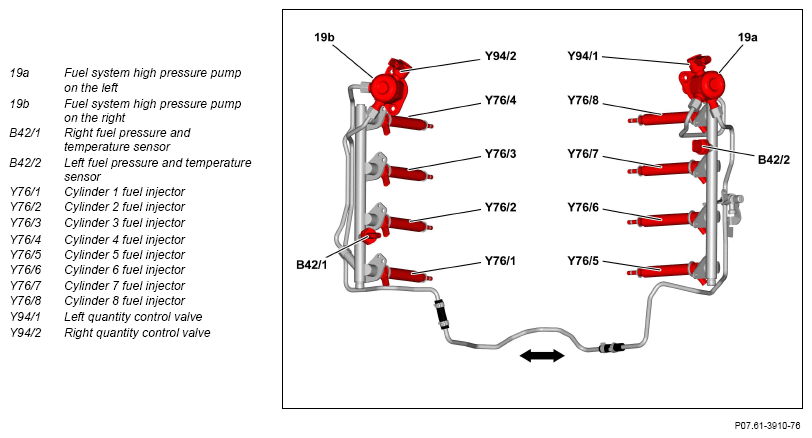

Shown: fuel high-pressure circuit

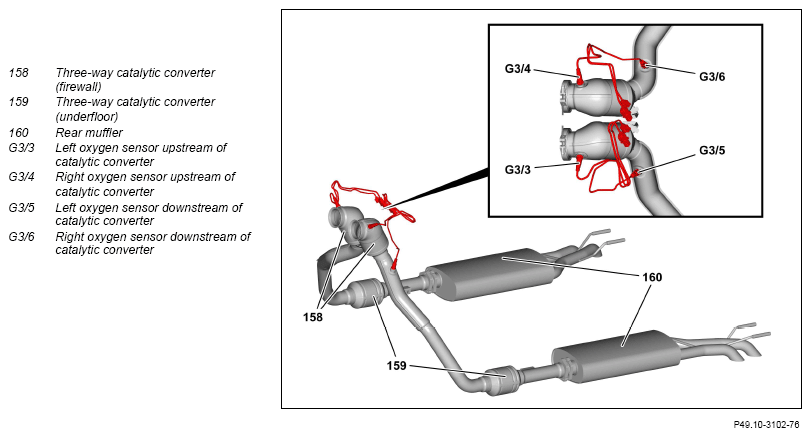

View of exhaust system

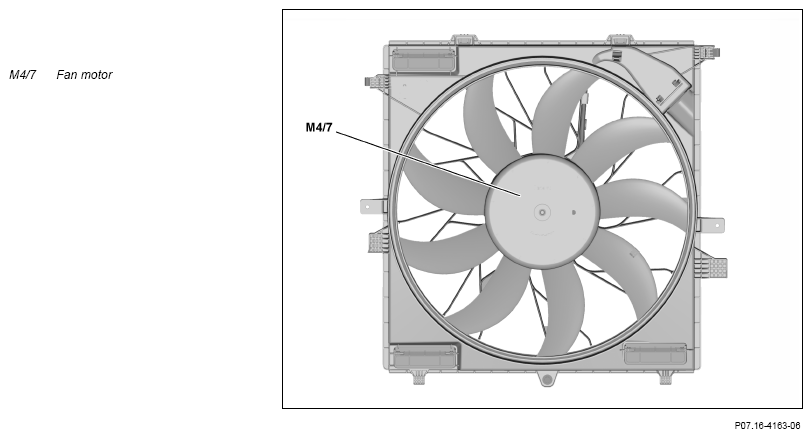

View of fan motor from rear

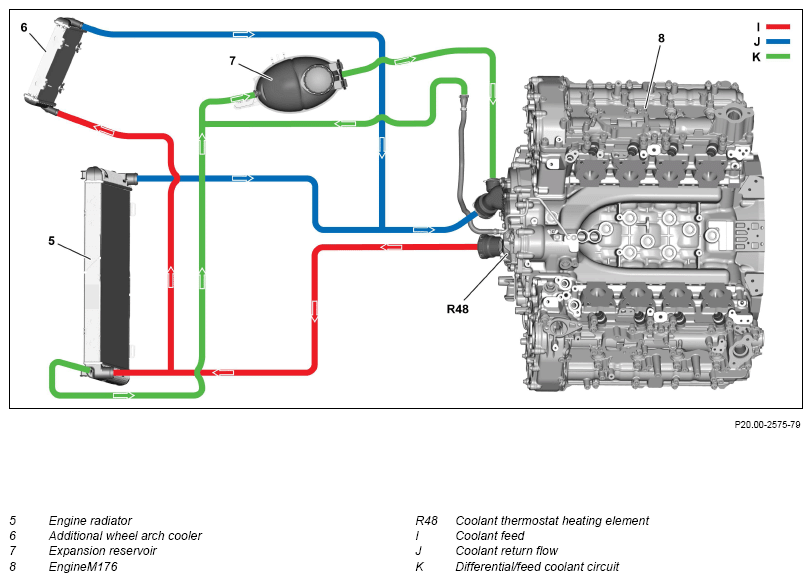

Schematic diagram of coolant circuit

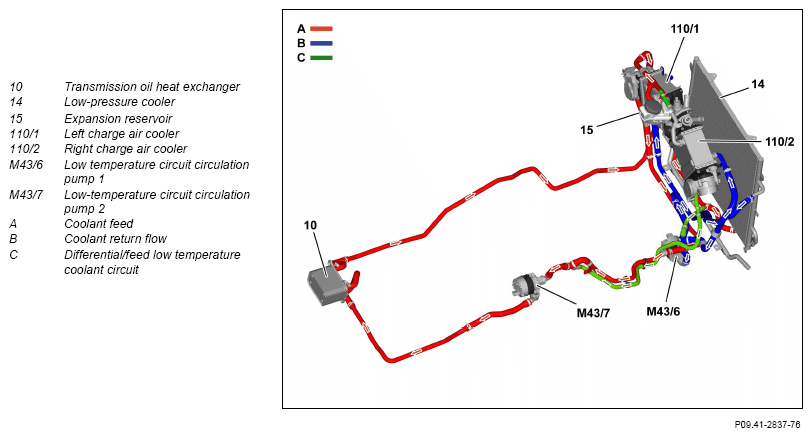

View of low-temperature circuit from the right

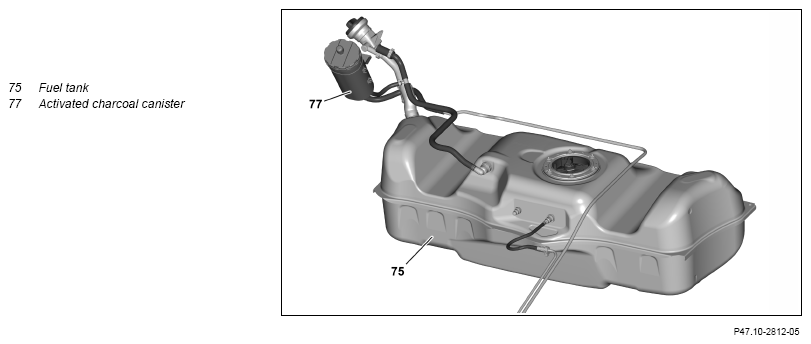

Phantom view of the fuel tank (except code ZU8 (USA national version))
Shown on upper side of fuel filter module

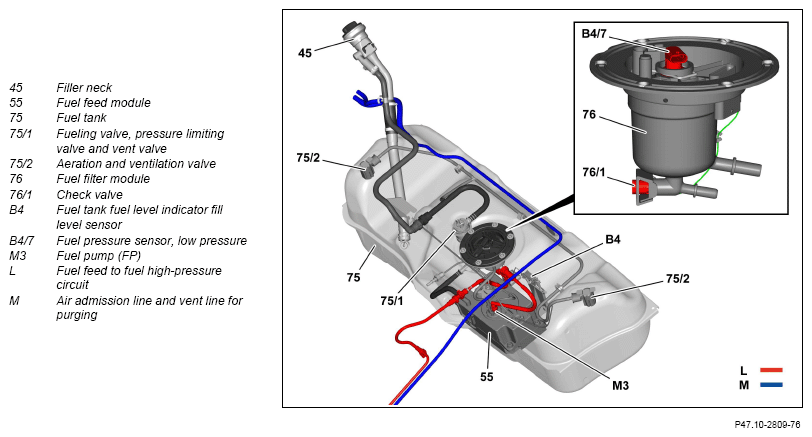

Phantom view of the fuel tank (except code ZU8 (USA national version))

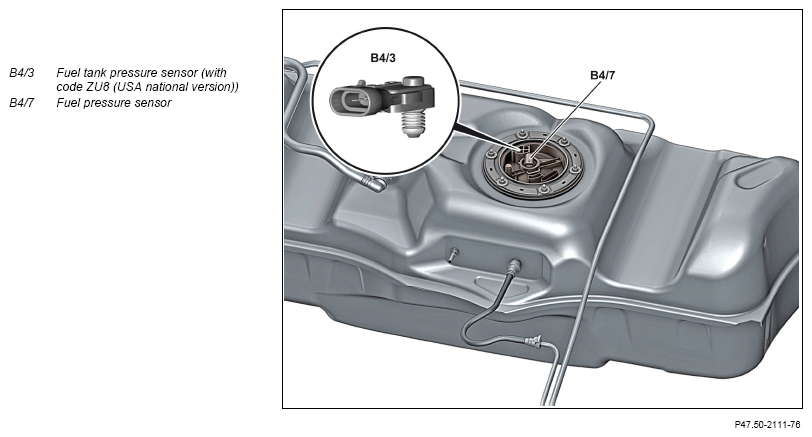

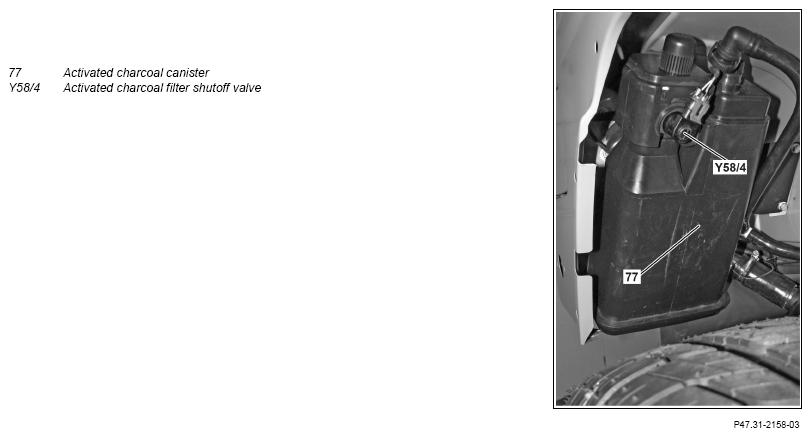

View of wheel arch from rear right (with code ZU8 (USA national version))

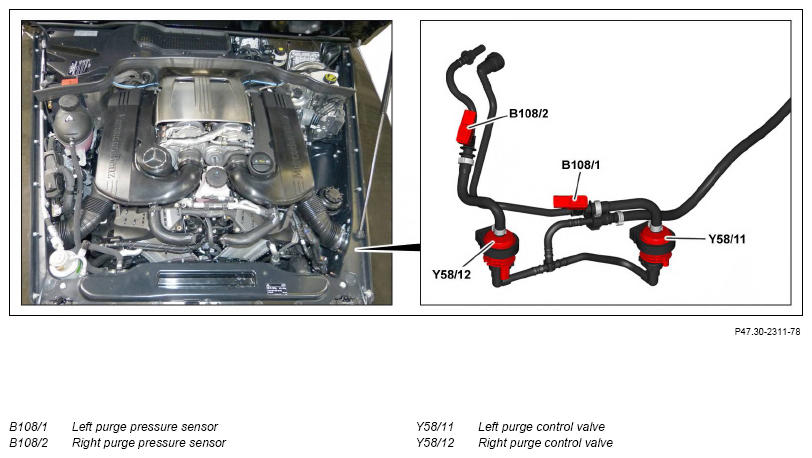

View of engine compartment from above

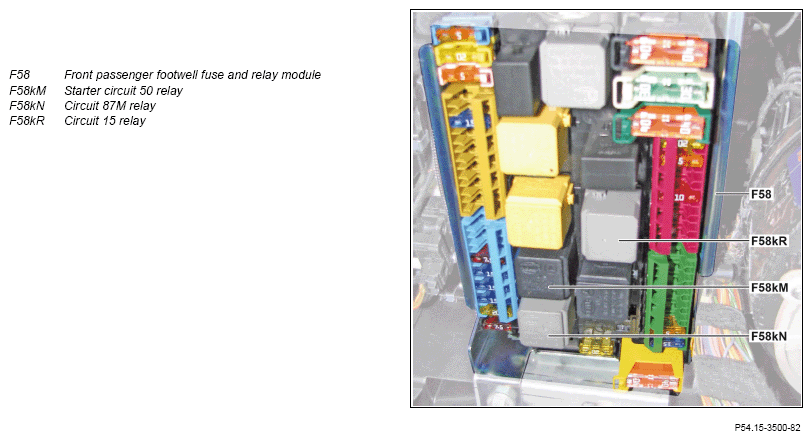

View of the fuse and relay module
| Component description for instrument cluster | A1 | GF54.30-P-6000GW | |
| Component description for intelligent servo module for DIRECT SELECT | Engine 176.9 in model 463 with transmission 722.9 as of model year 2016 up to model year 2019 A80 |
GF27.19-P-4020AHG | |
| Component description for DISTRONIC electric controller unit | Model 463 with engine 176.9 as of model year 2016 up to model year 2019 with code EZ9 (DISTRONIC PLUS) A89 |
GF30.30-P-3213GW | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GW | |
| Component description for ME-SFI (ME) control unit | N3/10 | GF07.61-P-6000MNF | |
| SAM control unit, component description | N10 | GF54.21-P-4157GW | |
| Component description of transfer case control unit | Engine 176.9 in model 463 with transmission 722.9 as of model year 2016 up to model year 2019 N15/7 |
GF28.19-P-3200VGE | |
| Component description for climate control, control and operating unit | N22/7 | GF83.40-P-3002GW | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119GW | |
| Component description for adaptive damping system control unit | Model 463 with engine 176.9 as of model year 2016 up to model year 2019 with code A20 (Suspension with Adaptive Damping system) N51/5 |
GF32.32-P-1010GW | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GW | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040GW | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GW | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GW | |
| Component description for transmission oil auxiliary pump control unit | Transmission 722.9 in model 463 with engine 176.9 as of model year 2016 up to model year 2019 with code MJ7 (ECO start/stop function) N89 |
GF27.19-P-4030AHG | |
| Component description for fuel pump control unit | N118 | GF47.40-P-2001MNF | |
| Drivetrain control unit, component description | N127 | GF54.21-P-2141MNF | |
| DIRECT SELECT interface, component description | Engine 176.9 in model 463 with transmission 722.9 as of model year 2016 up to model year 2019 N150 |
GF27.19-P-1300AHG | |
| Component description for fully integrated transmission control unit | Engine 176.9 in model 463 with transmission 722.9 as of model year 2016 up to model year 2019 Y38n4 |
GF27.60-P-5165AHG | |
| Table of contents for function description of gasoline injection and ignition system with direct injection | GF07.70-P-0998MNF |
