Overview Of System Components For Gasoline Injection And Ignition System With Direct Injection - GF07.70-P-9998MNH
Engine 176.9, 177.9 in model 463
as of model year 2019

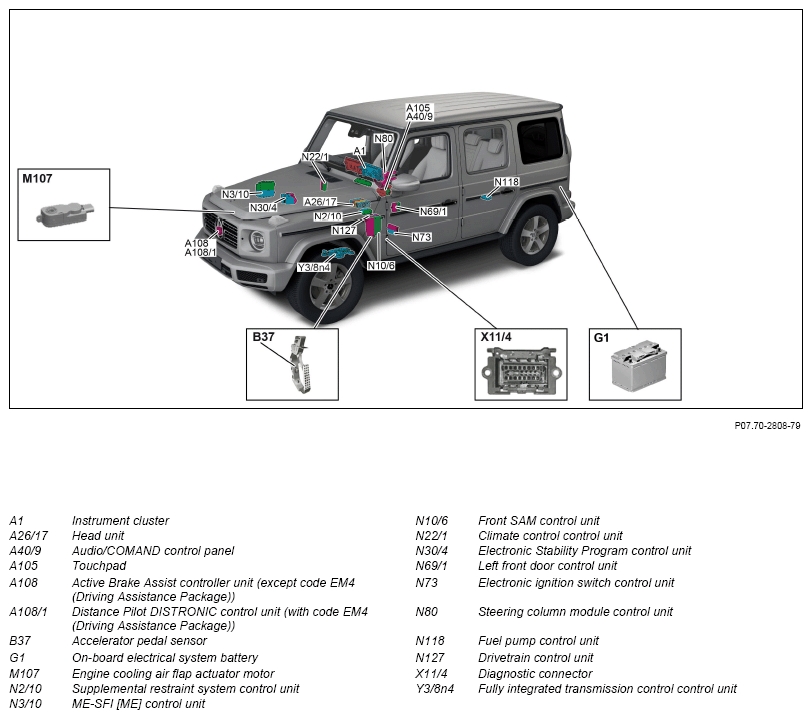

Vehicle view for model 463.2
View of engine from top front (for engine 176.9)

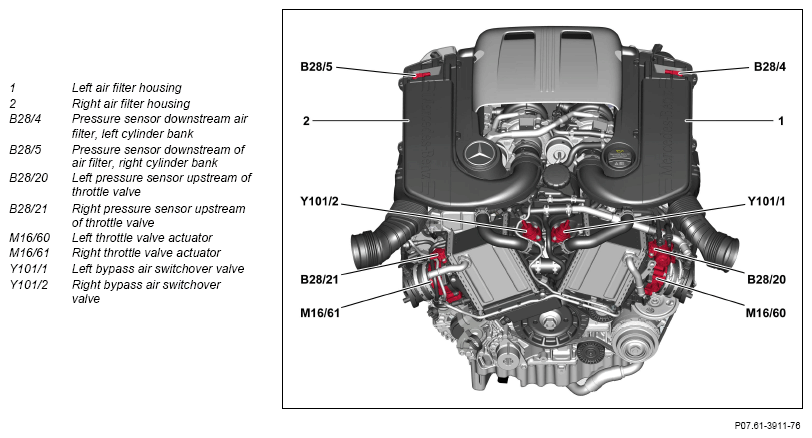

View from top front (for engine 177.9)

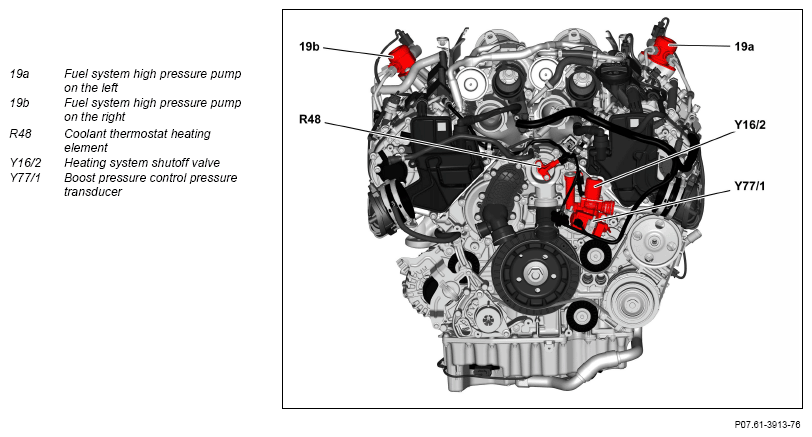

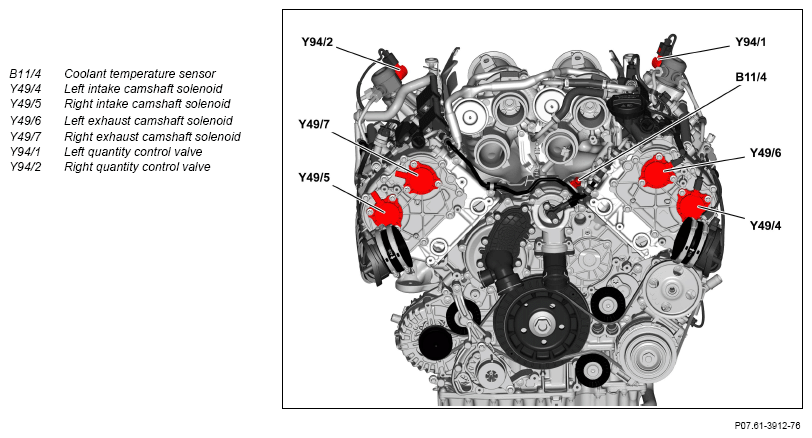

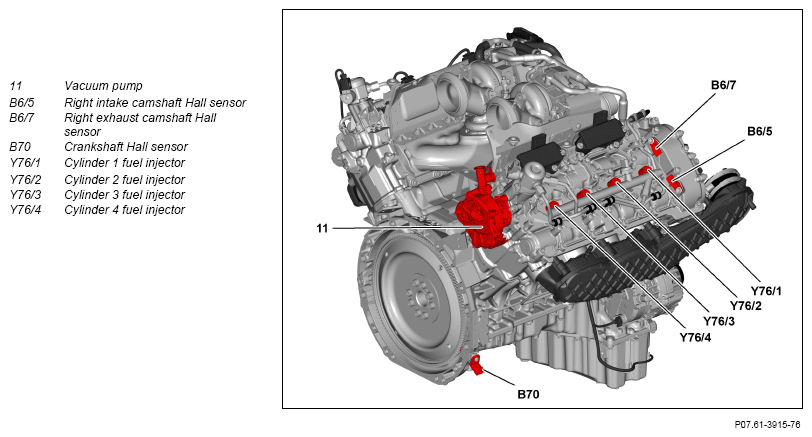

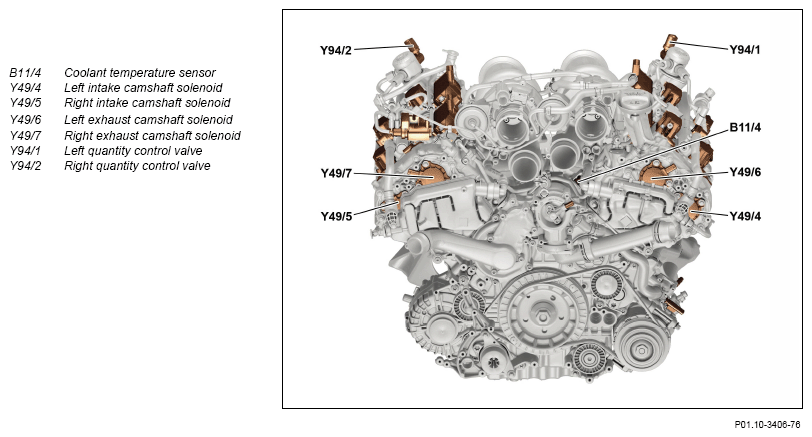

View of engine from front (for engine 176.9)
View from top front (for engine 177.9)
View of engine from front (for engine 176.9)

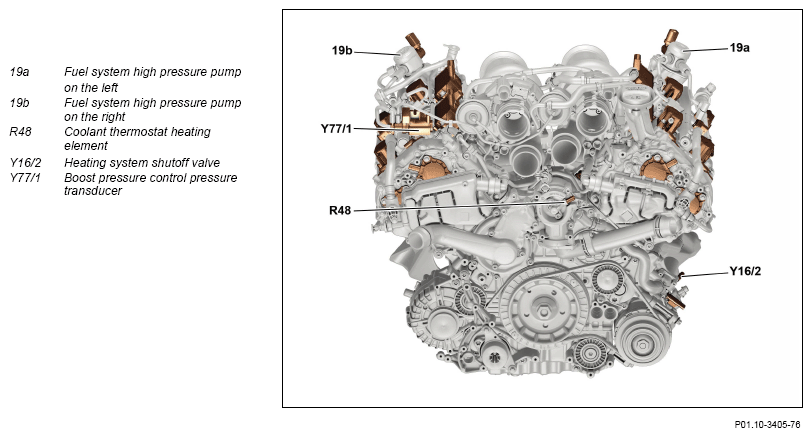

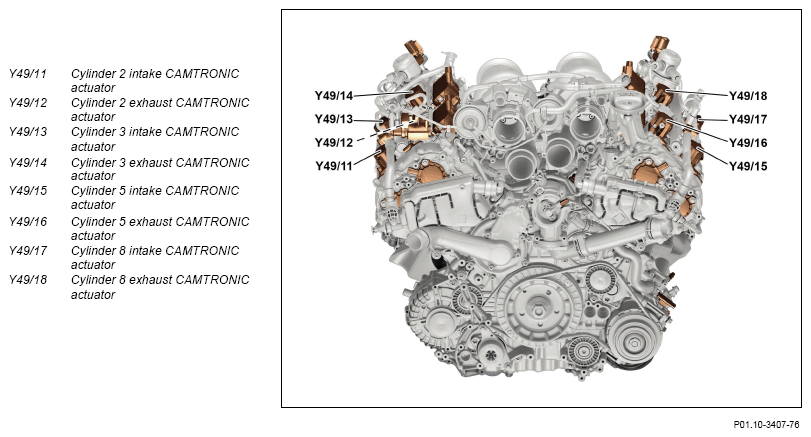

View from the front (for engine 177.9)
View from the front (for engine 177.9)
View from the front (for engine 177.9)

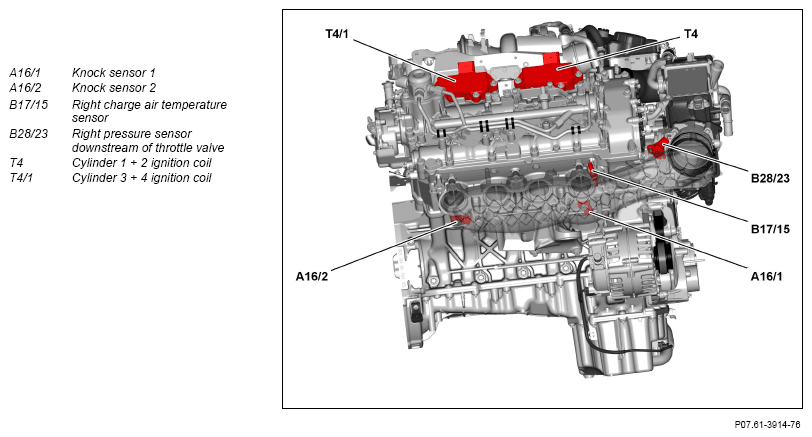

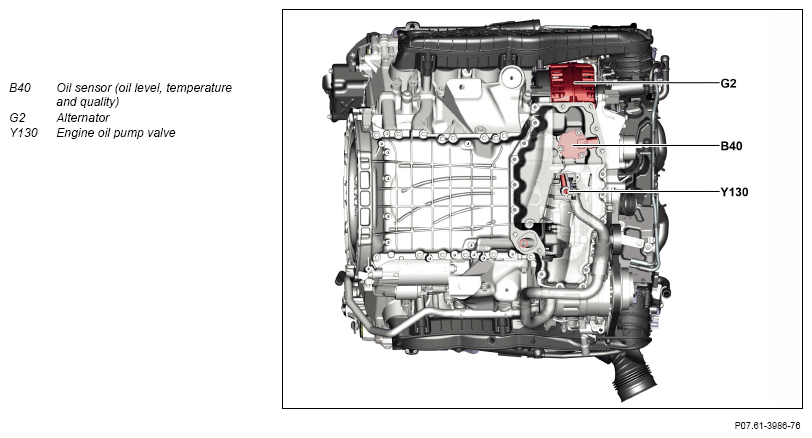

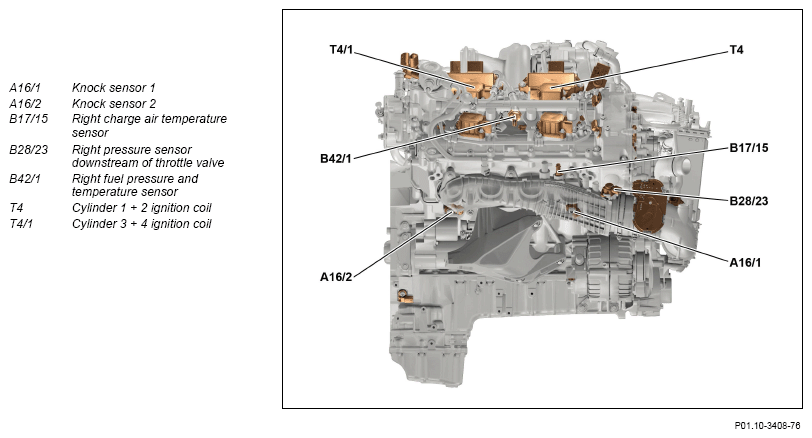

View of engine from right (for engine 176.9)
View from the right (for engine 177.9 with code M005 (4MATIC))

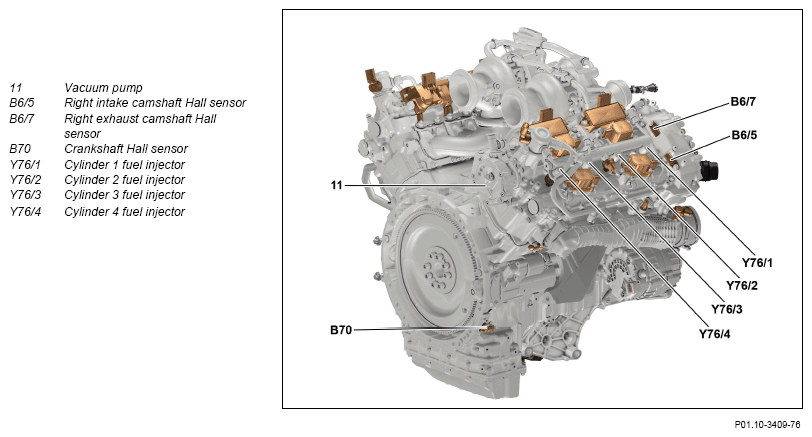

View of engine from rear right (for engine 176.9)
View from right rear (for engine 177.9 with code M005 (4MATIC))

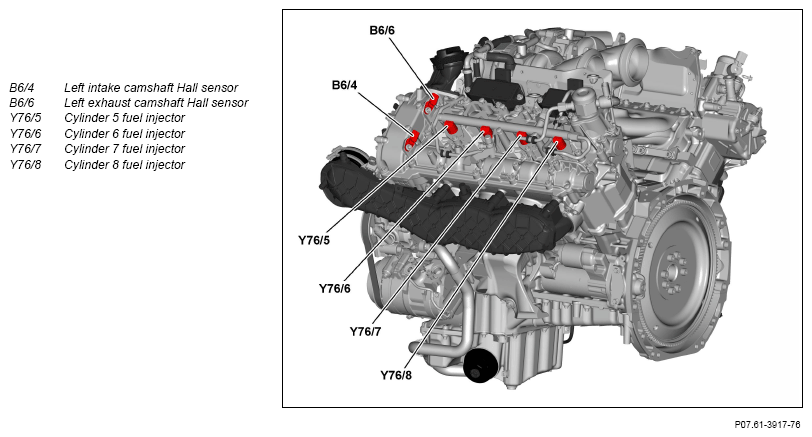

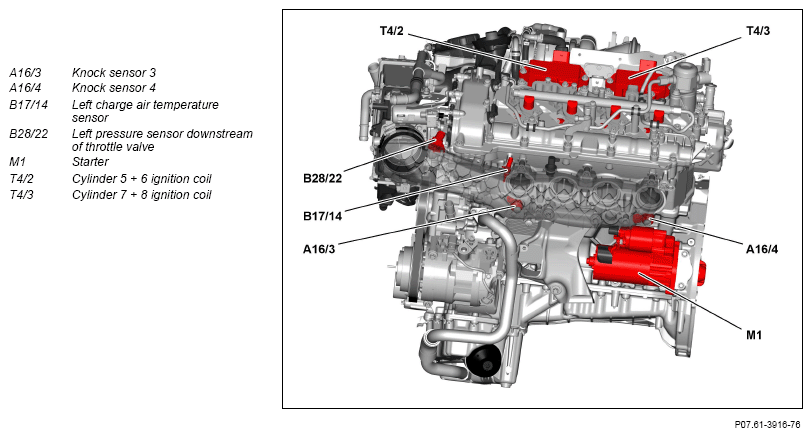

View of engine from left (for engine 176.9)

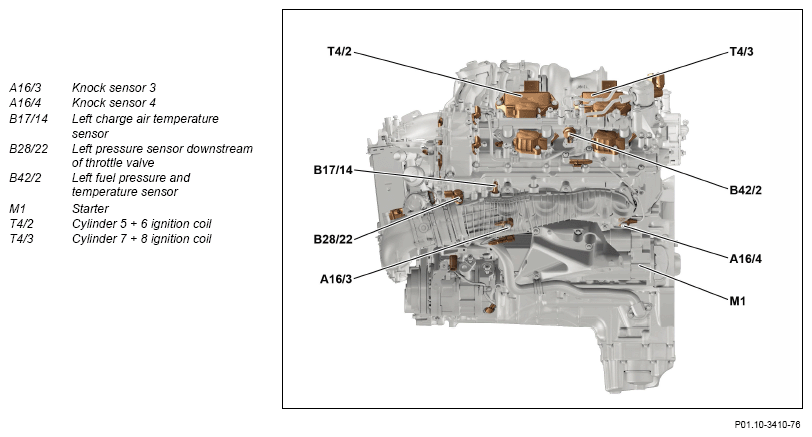

View from the left (for engine 177.9 with code M005 (4MATIC))

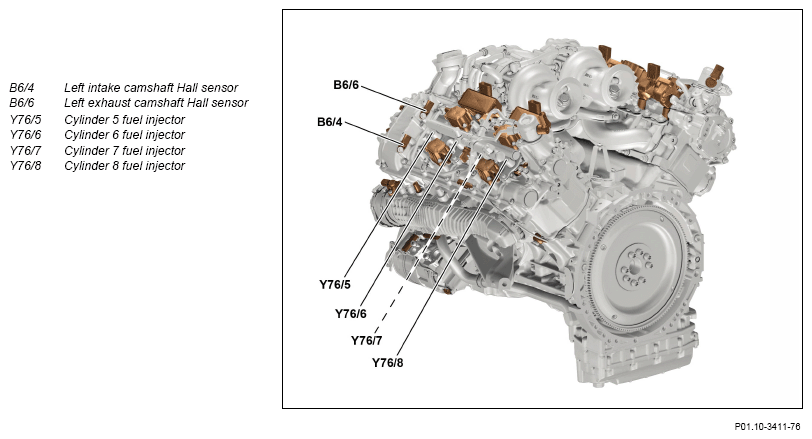

View of engine from rear left (for engine 176.9)
View from left rear (for engine 177.9 with code M005 (4MATIC))

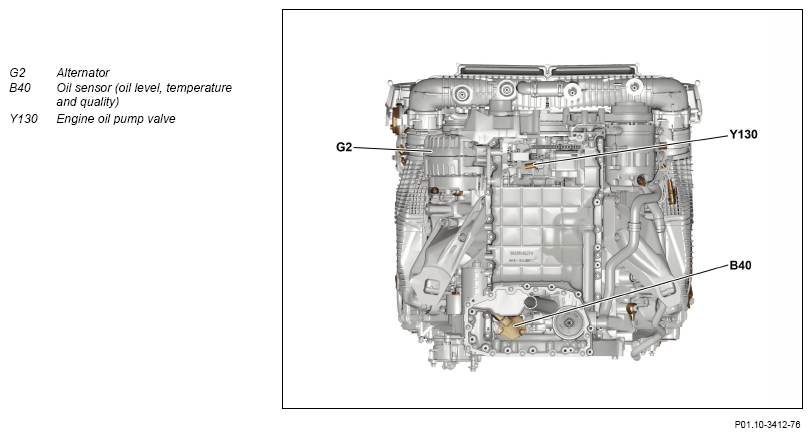

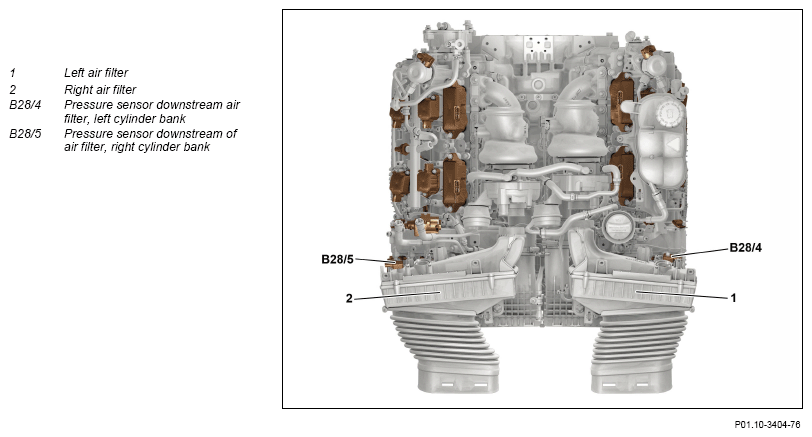

View of engine from underneath (for engine 176.9)

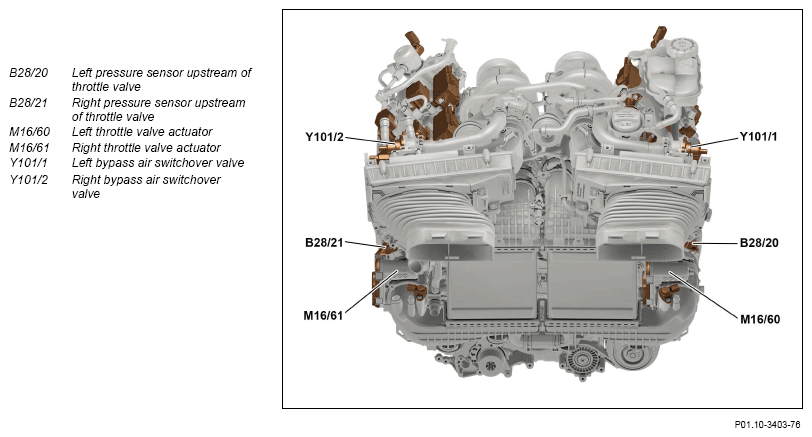

View from below (for engine 177.9)

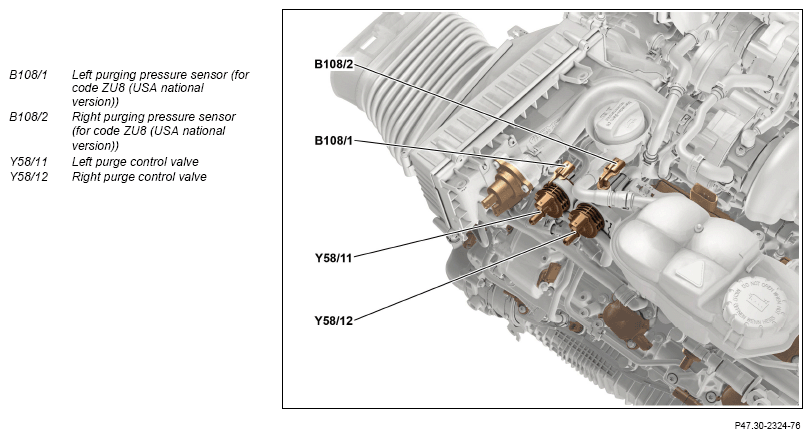

View from top left (shown on engine 177.9)

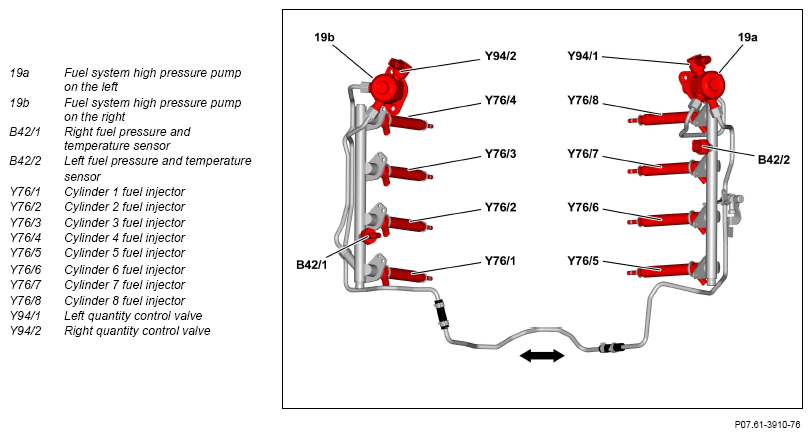

Shown: fuel high-pressure circuit

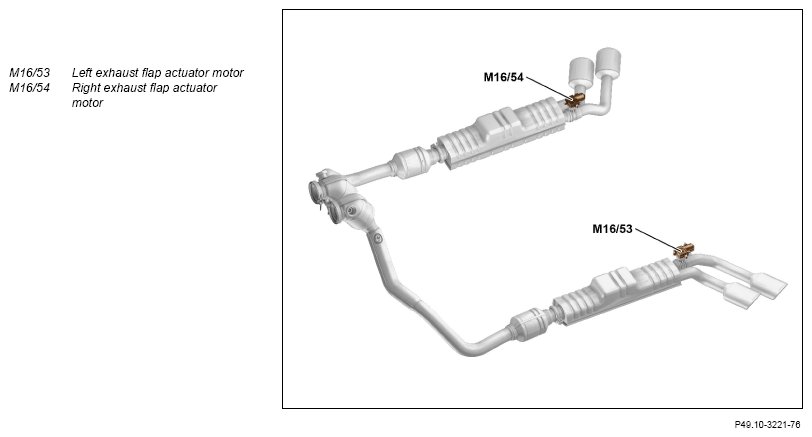

View of exhaust system

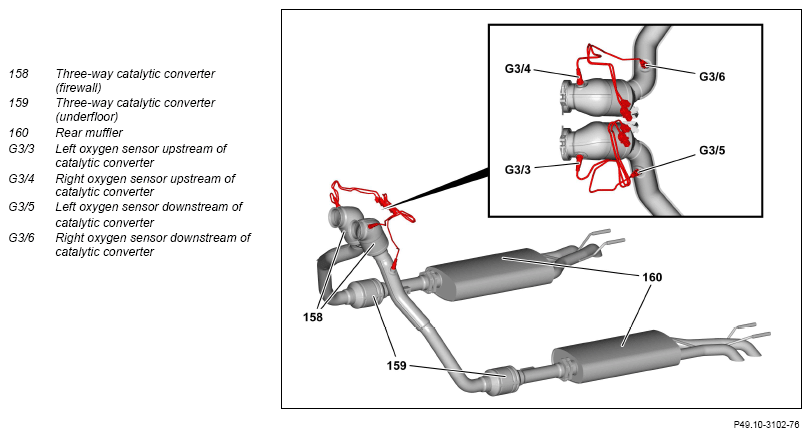

View of exhaust system

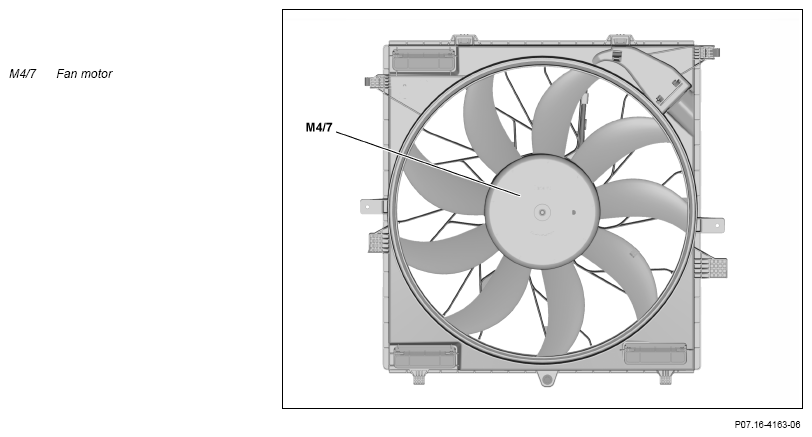

View of fan motor from rear

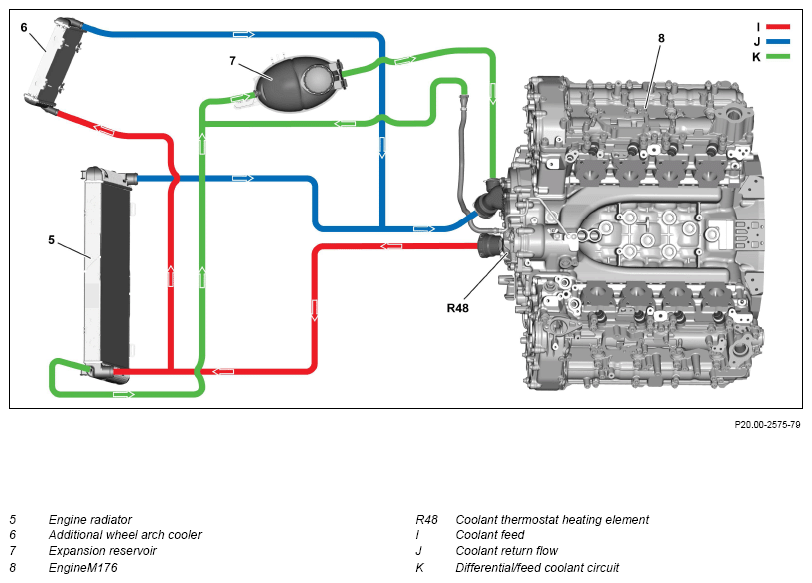

Schematic diagram of coolant circuit

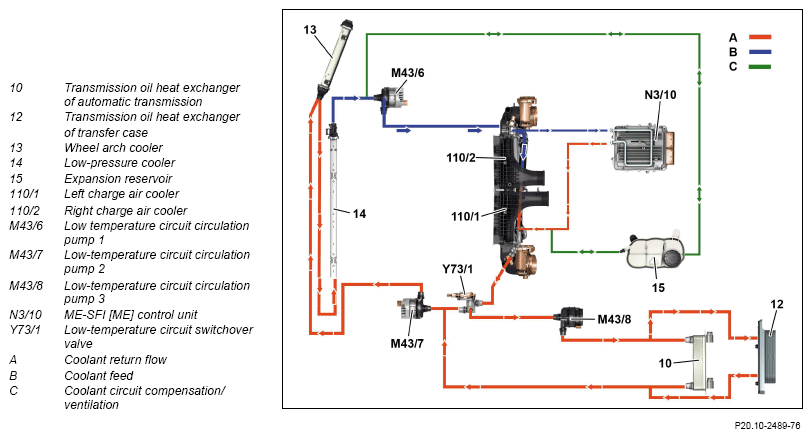

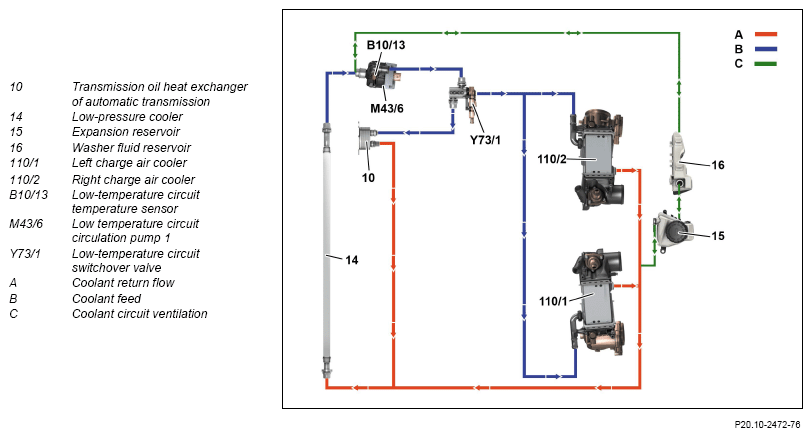

Low temperature circuit view (for engine 176.9)
Low temperature circuit view (for engine 177.9)

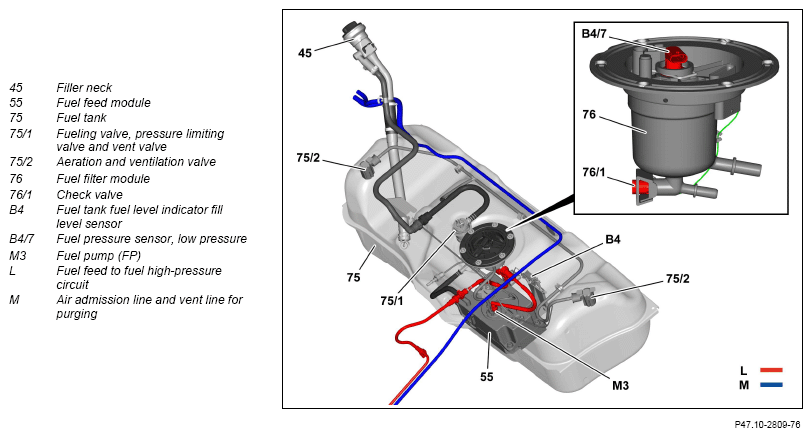

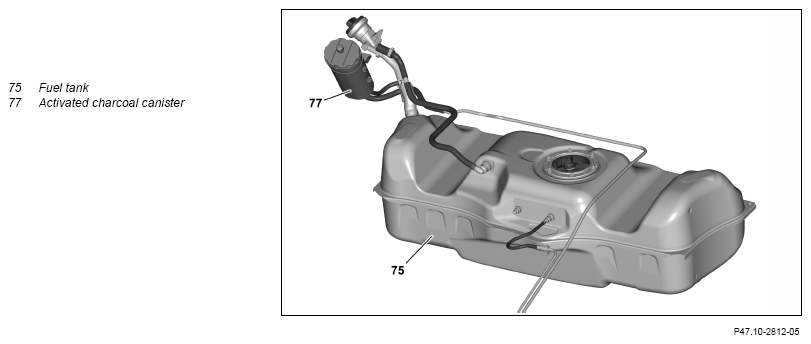

Phantom view of the fuel tank (except code ZU8 (USA national version))
Shown on upper side of fuel filter module

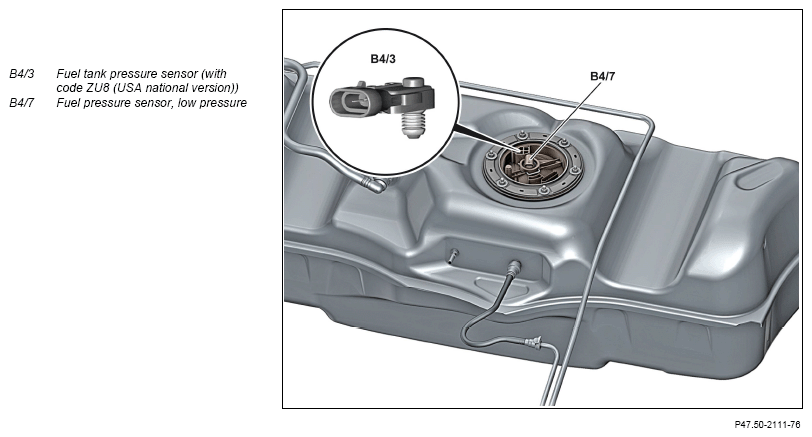

Phantom view of the fuel tank (except code ZU8 (USA national version))

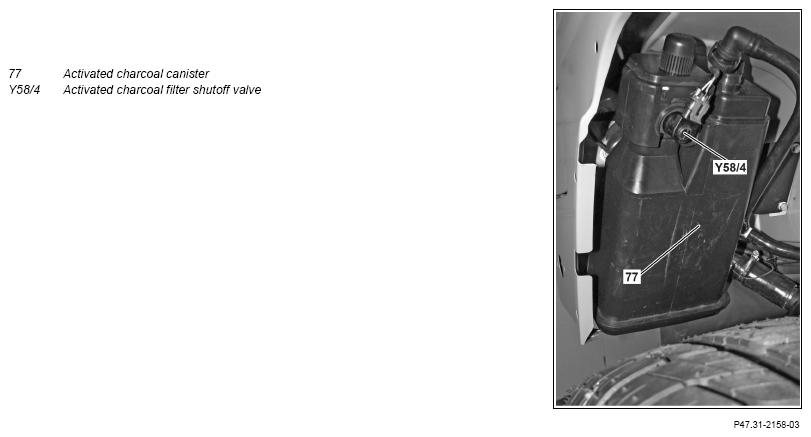

View of wheel arch from rear right (with code ZU8 (USA national version))

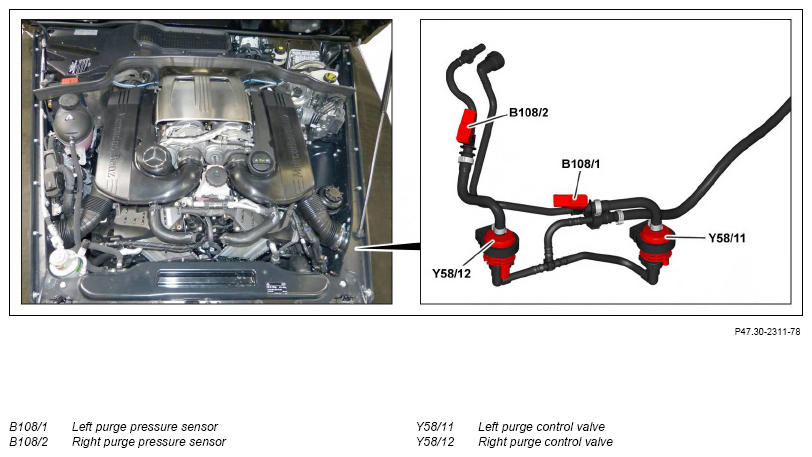

View of engine compartment from above

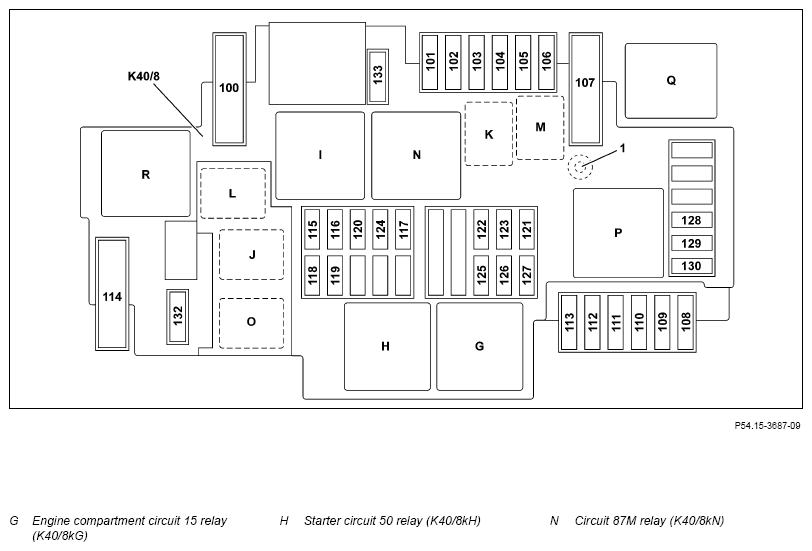

View of engine fuse and relay module (K40/8)
| Component description for instrument cluster | A1 | GF54.30-P-6000GW | |
| Head unit, component description | A26/17 | GF82.85-P-3140GW | |
| Component description for Audio/COMAND control panel | A40/9 | GF54.21-P-4501GWM | |
| Touchpad, component description | A105 | GF54.21-P-4511GW | |
| Active Brake Assist controller unit, component description | Model 463 (except 463.342) with engine 176.9, 177.9 as of model year 2019 except code EM4 (Driving Assistance package) A108 |
GF30.30-P-3222GWM | |
| DISTRONIC Distance-Pilot controller unit, component description | Model 463 with engine 176.9, 177.9 as of model year 2019 with code EM4 (Driving Assistance package) A108/1 |
GF30.30-P-3218GWM | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GWM | |
| Component description for ME-SFI (ME) control unit | N3/10 | GF07.61-P-6000MNH | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010GWM | |
| Climate control, control unit, component description | N22/1 | GF83.40-P-2250GWM | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119GWM | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GW | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GWM | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GWM | |
| Component description for fuel pump control unit | N118 | GF47.40-P-2001MNH | |
| Drivetrain control unit, component description | N127 | GF54.21-P-2141MNH | |
| Component description for fully integrated transmission control unit | Model 463 with engine 177.9 with transmission 725.0 as of model year 2019 Y38n4 |
GF27.60-P-5165ANE | |
| Table of contents for function description of gasoline injection and ignition system with direct injection | GF07.70-P-0998MNH |
