Remove/Install Fuel Pump Control Unit - AR47.20-P-5717XGA
Engine 176 in model 463
as of model year 2019
Engine 177 in model 463
as of model year 2019

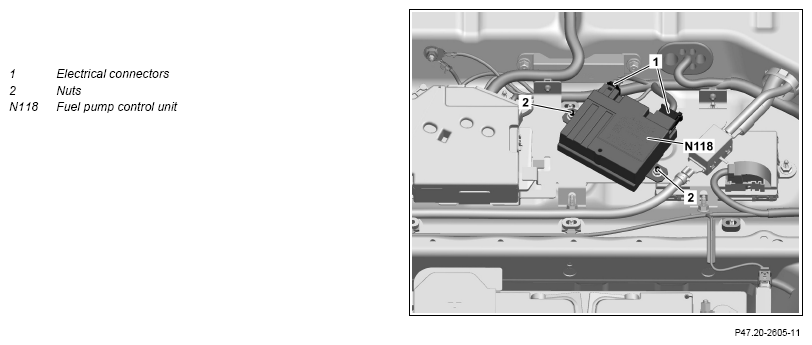

Fig 1: Fuel Pump Control Unit Components Location - Engine 176 And 177 In Model 463 As Of Model Year 2019
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 |
Connect vehicle diagnosis system and read out variant coding of fuel system control unit (N118). | If the fuel system control unit (N118) is replaced: |
AD00.00-P-2000-04B |
| 2 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 3 | Remove load compartment floor. | AR68.80-P-5800XG | |
| 4 | Release and disconnect electrical connections (1). | ||
| 5 | Unscrew nuts (2). | *BA54.21-P-1001-01F | |
| 6 | Remove fuel system control unit (N118). | ||
| 7 | Install in the reverse order. | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Perform an engine test run and check the engine for proper function. |
CONTROL UNITS/BASE MODULE
| Number | Designation | Model 463 as of model year 2019 | ||
|---|---|---|---|---|
| BA54.21-P-1001-01F | Nut, fuel system control unit to holder | M5 | Nm | 3 |
