Basic Function Of Engine Oil Pressure And Temperature Sensor - GF18.40-P-2004A
Engine all (4xWD)
Engine all (CAR)

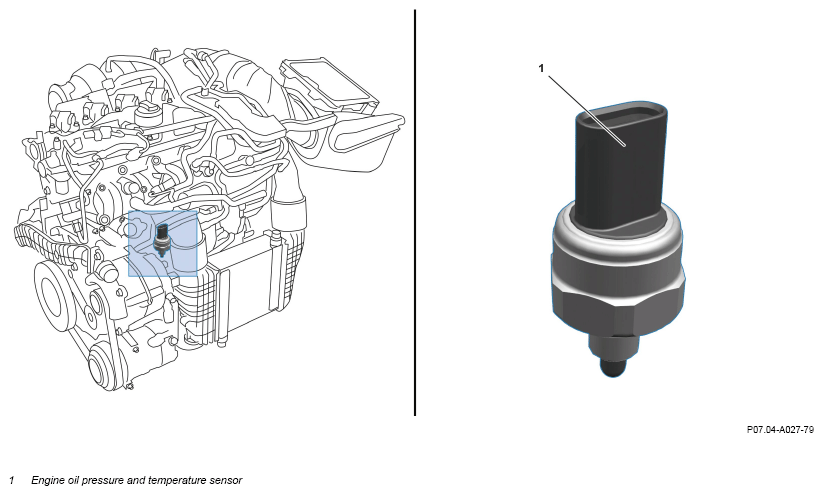

Sample illustration of engine oil pressure-and-temperature sensor
Overview
This document contains information on:
- General
- Function
General
The engine oil pressure and temperature sensor (1) monitors the oil pressure and temperature of the engine oil.
Function
A piezoresistive sensor element and electronics system for signal boosting and temperature compensation are integrated on a micromechanical chip. The pressure and temperature of the engine oil are routed via a connection fitting to the underside of the diaphragm of the sensor element, where it is measured.
By integrating a cap chip, the engine oil pressure and temperature sensor (1) is used to measure absolute pressures. The engine oil pressure and temperature sensor (1) transmits the recorded data to the combustion engine control unit.
| Component description | |||
| Engine oil pressure and temperature sensor, component description | Engine 256 in model 223 | GF18.40-P-4102A | |
| Engine 254, 654 in model 206 | GF18.40-P-4102C | ||
| Engine 139 in model 232 | GF18.40-P-4102F | ||
| Engine 254, 654 in model 254 | GF18.40-P-4102H | ||
| Engine 254, 256, 654, 656 in model 214 | GF18.40-P-4102K | ||
| Model 118, 177, 247 as of model year 2023 | GF18.40-P-4102L | ||
| Engine 256, 654 in model 167 as of model year 2023 | GF18.40-P-4102M |
