Remove/Install Fuel Pump And Fill Level Sensor - AR47.20-P-7000MFD
Engine 260 in model 118, 177, 247
Engine 282 in model 118, 177, 247
Shown in model 118
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||

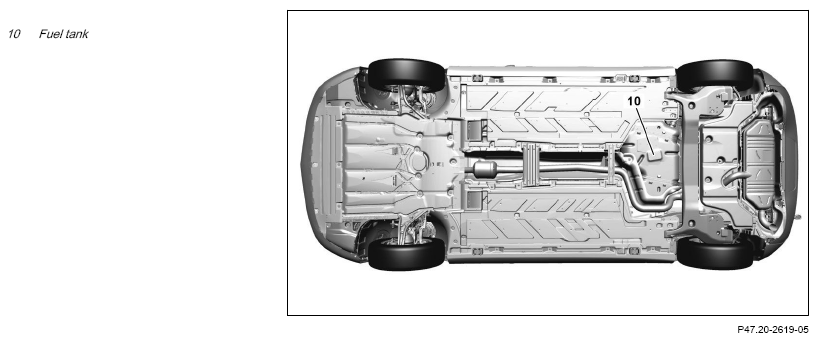

| 1 | Empty the fuel tank (10). | AR47.10-P-4001MFD | |
| 2 | Remove fuel tank (10). | Engine 282 in model 118, 177, 247 with code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN)) | AR47.10-P-4100MFH |
| Engine 260 in model 118, 177, 247 Engine 282 in model 118, 177, 247 except code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN)) |
AR47.10-P-4100MFD | ||

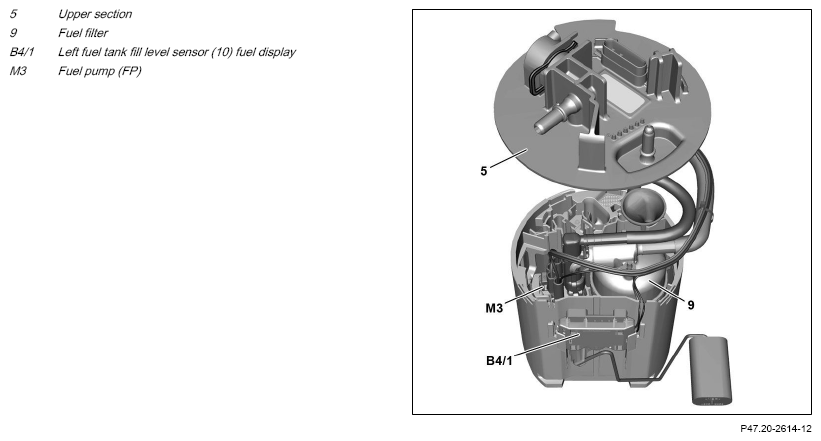

| 3 | Release and disconnect electrical connector (1) from fuel pump (M3) and electrical connector (2) from left fuel tank fill level sensor (10) fuel display (B4/1). | ||
| 4 | Release and disconnect fuel line (3) and seal openings with suitable stop plugs. | Fig 2 | |
| 5 | Remove fuel line (3) from fuel tank (10). | ||

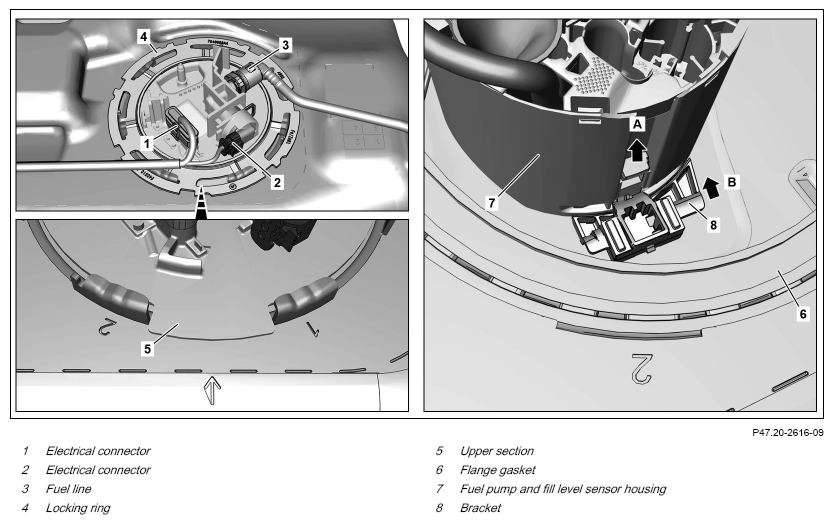

| 6 | Remove locking ring (4). | Fig 1 | |
| 7 | Lift upper section (5) and place to one side carefully. | Replace flange seal (6). |
|
| 8 | Release locking clip from fuel pump and fill level sensor housing (7) in fuel tank (10) by pulling upward (arrow A). | ||
| 9 | Carefully push fuel level sensor and fuel pump housing (7) in direction of arrow (arrow B) out of bracket (8) at base of fuel tank (10). Then remove together with the upper part (5). | ||
| 10 | Seal exposed opening with suitable means. | Ensure scrupulous cleanliness. The fuel system will otherwise be damaged. |
|
| 11 | Install in the reverse order. |
