Remove/Install Fuel Pump And Fill Level Sensor - AR47.20-P-7000MFG
Engine 139 in model 118, 177, 247
MODIFICATION NOTES
| 13.11.2019 | Document completely revised. |
Shown on model 177.0
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove fuel tank (10). | AR47.10-P-4100MFG | |
| 2 | Release and disconnect electrical connector (1) from fuel pump (M3). | ||
| 3 | Release and disconnect electrical connector (2) from fuel tank fuel level indicator fill level sensor, left (B4/1). | ||
| 4 | Release and disconnect fuel line (3). | ||
| 5 | Seal exposed openings with suitable stop plugs. | Fig 2 | |
| 6 | Remove fuel line (3) from fuel tank (10). | ||

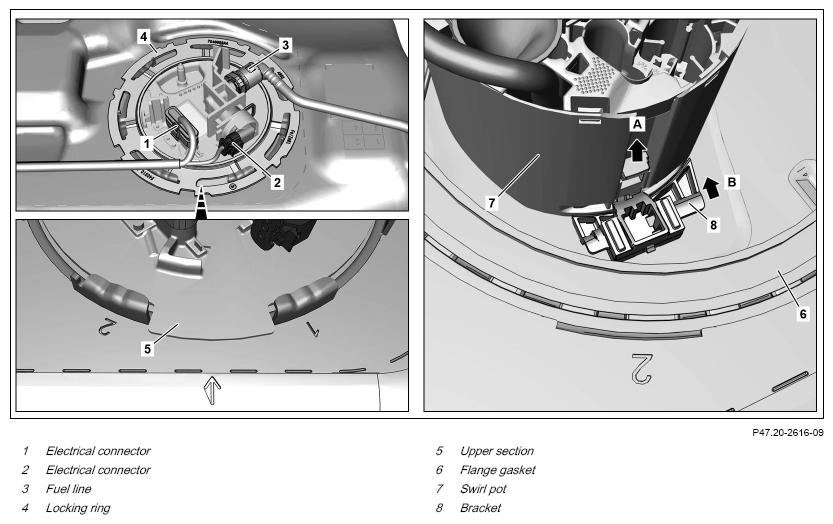

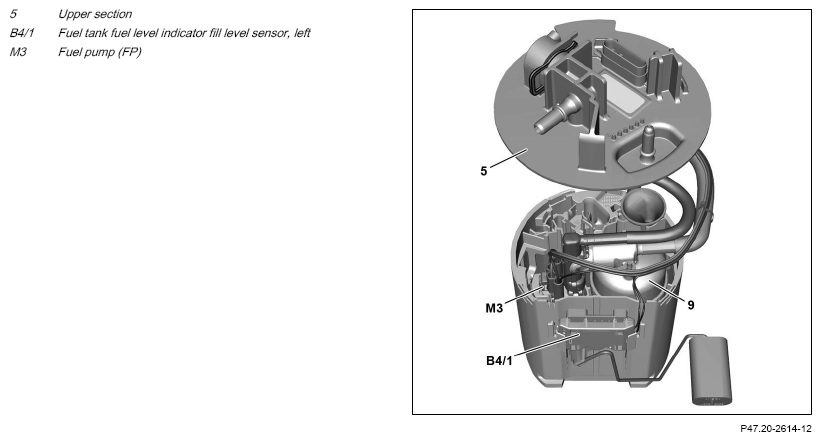

| 7 | Remove locking ring (4). | Fig 1 | |
| 8 | Lift upper section (5) and carefully place to one side. | Replace flange seal (6). |
|
| 9 | Release retainer of swirl pot (7) in fuel tank (10) by pulling upward (arrow A). | ||
| 10 | Carefully slide swirl pot (7) in direction of arrow (arrow B) out of bracket (8) and remove together with upper section (5). | ||
| 11 | Cover exposed opening with a clean rag. | Ensure scrupulous cleanliness. Fuel system will otherwise be damaged. |
|
| 12 | Install in the reverse order. | ||
| 13 | Read out the fault memory and delete if necessary. | ||
| AD00.00-P-2000-06MFA |
