Air Quality Sensor, Basic Function - GF83.40-P-2022A
Model All (CAR)
with code 581 (Automatic climate control)
Model All (CAR)
with code 830 (China version)

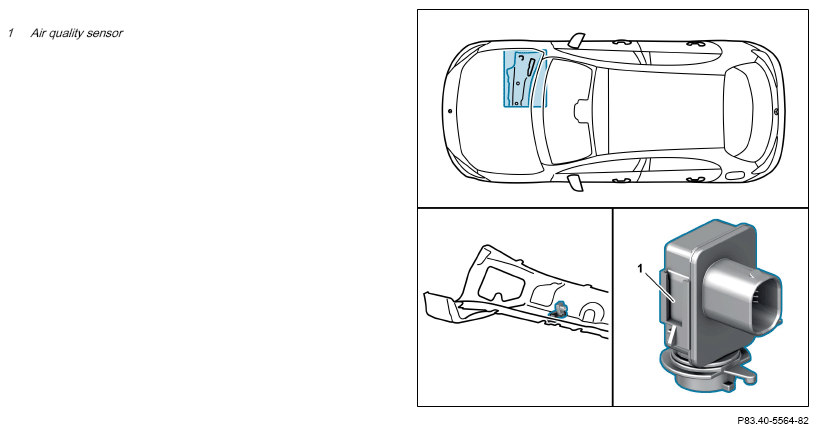

Example illustration of air quality sensor
Overview
This document contains information on:
- General
- Function requirements
- Function
General
The air quality sensor (1) detects the concentration of the following pollutants in the outside air:
- Carbon monoxide (CO)
- Nitrogen oxides (NOx )
The air quality sensor (1) is attached to a holder in the air/water duct.
Function requirements
- Circuit 15 on
- Climate control switched on
Function
The air quality sensor (1) is a NOx sensor that measures the nitrogen oxide and oxygen concentration in the exhaust gas and sends the signal to the front signal acquisition and actuation module control unit.
The front signal acquisition and actuation module control unit forwards the signal to the upper or lower control panel control unit depending on the model and equipment installed.
The upper or lower control panel control unit is finally connected to the control for climate control via LIN.
The control for climate control regulates the pollutant-controlled air-recirculation mode based on this.
| Component descriptions | |||
| Air quality sensor, component description | Model 223 with code 581 (Automatic climate control) | GF83.10-P-2194A | |
| Model 243 | GF83.10-P-2194B | ||
| Model 206 | GF83.10-P-2194C | ||
| Model 297 | GF83.10-P-2194D | ||
| Model 295 | GF83.10-P-2194E | ||
| Model 232 | GF83.10-P-2194F | ||
| Model 296 | GF83.10-P-2194G | ||
| Model 254 | GF83.10-P-2194H | ||
| Model 214 | GF83.10-P-2194H | ||
| Model 118 as of model year 2023 Model 177 as of model year 2023 Model 247 as of model year 2023 | GF83.10-P-2194L | ||
| Model 167 as of model year 2023 | GF83.10-P-2194M | ||
| Model 294 | GF83.10-P-2194N | ||
| Model 192 | GF83.10-P-2194R |
