Fragrance System, Basic Function - GF83.80-P-9900A
Model All (CAR)
with code P21 (Air quality package)

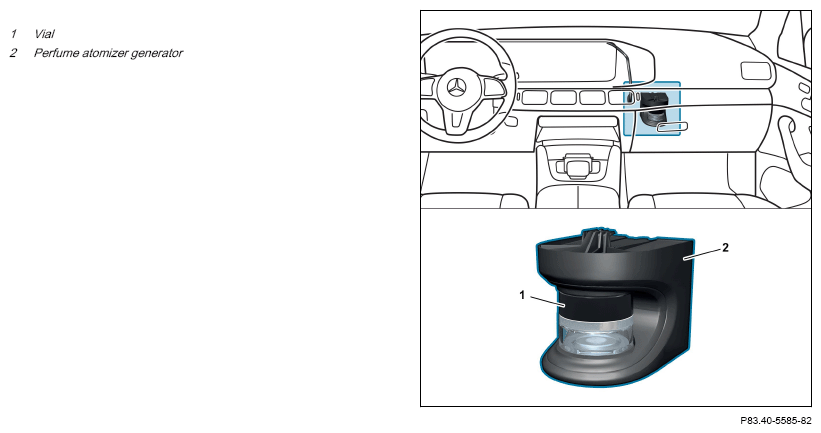

Example illustration of fragrance system
Overview
This document contains information on:
- General
- Function requirements
- Function
General
Using the fragrance system can enrich the vehicle interior air with different fragrances. The fragrance system is controlled via the climate control.
The flacon (1) with the liquid fragrance is located in a holder in the glove compartment and is stored safely in the event of shocks or accidents.
Function requirements
- Circuit 15 ON
- Climate control switched on
- Flacon (1) inserted
- Glove compartment CLOSED
- Perfume atomization activated
Function
A fan in the fragrance system generates its own air flow. This flows over the surface of the fragrance and becomes enriched with fragrance molecules. The air then flows through an opening in the vehicle interior and diffuses there.
The fragrance is timed. After approx. 5 min it switches off and on again. Due to the timing, the vehicle occupants do not get used to the fragrance and so the fragrance remains effective.
When the glove compartment is opened, the fragrance system switches off, the flacon lighting switches on and the flacon (1) changes from the operating position to the removal position.
| Function schematics | |||
| Function schematic for actuating fragrance system generator | Model 167 | PE83.80-P-2501-97A | |
| Model 223 | PE83.80-P-2501-97B | ||
| Model 293 | PE83.80-P-2501-97C | ||
| Model 213, 238, 257, 290 as of model year 2021 | PE83.80-P-2501-97D | ||
| Model 206, 214, 236, 254 | PE83.80-P-2501-97E | ||
| Model 294, 295, 296, 297 | PE83.80-P-2501-97G | ||
| Further basic functions | |||
| Climate control, basic function | GF83.00-P-9901A | ||
| Component descriptions | |||
| Fragrance system control unit, component description | Model 223 with code P21 (Air quality package) | GF83.80-P-0001A | |
| Model 206 with code P21 (Air quality package) | GF83.80-P-0001C | ||
| Model 297 with code P21 (Air quality package) | GF83.80-P-0001D | ||
| Model 295 with code P21 (Air quality package) | GF83.80-P-0001E | ||
| Model 296 with code P21 (Air quality package) | GF83.80-P-0001G | ||
| Model 254 with code P21 (Air quality package) | GF83.80-P-0001H | ||
| Model 214 with code P21 (Air quality package) | GF83.80-P-0001K | ||
| Model 294 with code P21 (Air quality package) | GF83.80-P-0001N |
