Ionization, Basic Function - GF83.80-P-9901A

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model All (CAR)

with code P21 (Air quality package)

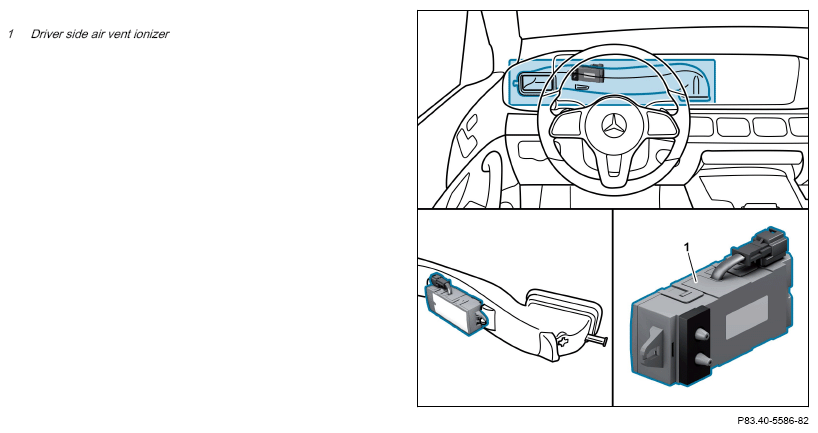

Example illustration of ionizer

Courtesy of MERCEDES-BENZ USA

Overview

This document contains information on:

General
Function requirements
Function

General

Air ionization makes it possible to refresh and clean the air in the vehicle interior. Interior air ionization is odorless, as such vehicle occupants cannot directly perceive it. The ionizer (1) is controlled through the control unit of the climate control.

The ionizer (1) is located on the air duct leading to the driver's side air vent.

Function requirements

Climate control switched on
Ionization active
Blower switched on

Function

The ionizer (1) binds dust. This effect is based on the fact that charged ions attach to dust particles in the air.

As a result of their electrostatic interaction, they encourage integration with other particles to form a larger cluster. The ionizer (1) then filters this cluster more easily than individual particles.

Further basic functions
Climate control, basic function		GF83.00-P-9901A
Function schematics
Function schematic for actuating ionization	Model 167	PE83.80-P-2502-97A
	Model 223	PE83.80-P-2502-97B
	Model 293	PE83.80-P-2502-97C
	Model 213, 238, 257, 290 as of model year 2021	PE83.80-P-2502-97D
	Model 206, 214, 236, 254	PE83.80-P-2502-97E
	Model 294, 295, 296, 297	PE83.80-P-2502-97G
