Refrigerant Pressure Sensor, Basic Function - GF83.40-P-2021A
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model All (4xWD)
Model All (CAR)

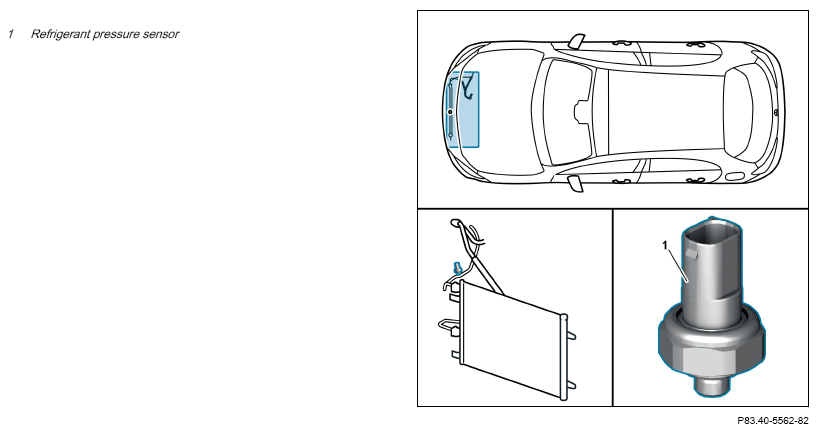

Example illustration of refrigerant pressure sensor
Overview
This document contains information on:
- General
- Function requirements
- Function
General
The refrigerant pressure sensor (1) detects the refrigerant pressure on the high-pressure side of the air conditioning system.
The refrigerant pressure sensor (1) is screwed into the connection fitting of the refrigerant line (high-pressure side) in the area of the condenser.
Function requirements
- Ignition ON (circuit 15)
- Climate control switched on
Function
The value for the refrigerant pressure is read in directly by the control for climate control via the refrigerant pressure sensor (1).
The refrigerant pressure sensor (1) works in a pressure value range of approx. 0 to 35 bar.
| Component descriptions | |||
| Refrigerant pressure sensor, component description | Model 206 | GF83.40-P-2202C | |
| Model 223 with engine 177 | GF83.40-P-2202A | ||
| Model 232 | GF83.40-P-2202F | ||
| Model 254 | GF83.40-P-2202H | ||
| Model 464 | GF83.40-P-2202J | ||
| Model 214 | GF83.40-P-2202K | ||
| Model 118 as of model year 2023 Model 177, 247 as of model year 2022 | GF83.40-P-2202L | ||
| Model 167 as of model year 2023 | |||
| Model 192 | GF83.40-P-2202R |
