Dual-Clutch Transmission ATF Temperature Sensor, Basic Function - GF27.19-P-2000A
Model All with Transmission 700.4, 724.0/1

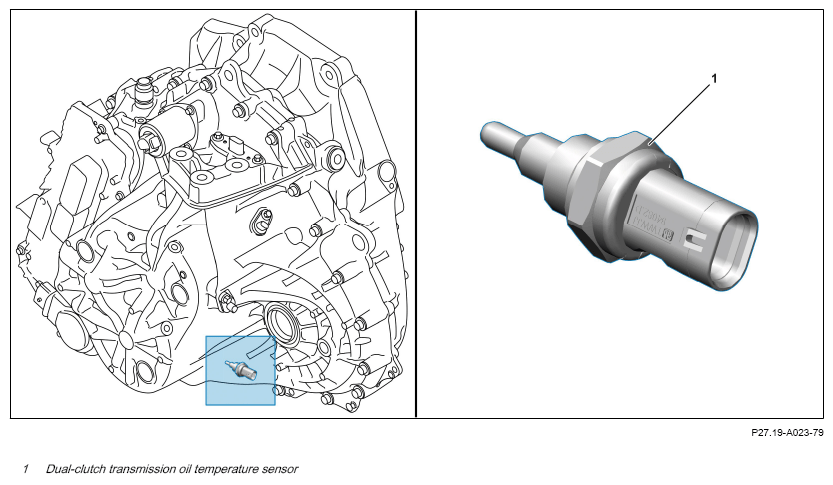

Example illustration of temperature sensor
Overview
This document contains information on:
- General
- Function
General
The Transmission oil temperature sensor continuously measures the Transmission oil temperature. The dual-clutch Transmission oil temperature sensor is located at the housing of the dual-clutch Transmission or is implemented in the fully integrated Transmission control electrohydraulic controller unit.
Function
The measured Transmission oil temperature is continuously forwarded to the fully integrated Transmission control electrohydraulic controller unit or to the dual-clutch Transmission control unit.
The measured Transmission oil temperature is continuously forwarded to the dual-clutch Transmission control unit or to the fully integrated Transmission control electrohydraulic controller unit.
