Remove/Install Track Rod - AR46.40-P-0200MFA
Model 118, 177, 243, 247
MODIFICATION NOTES
| 10.03.2021 | Operation steps 3 and 4 summarized. | Operation step 3 |
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Remove left or right wheel and tire assembly. | AR40.10-P-1102MFA | |

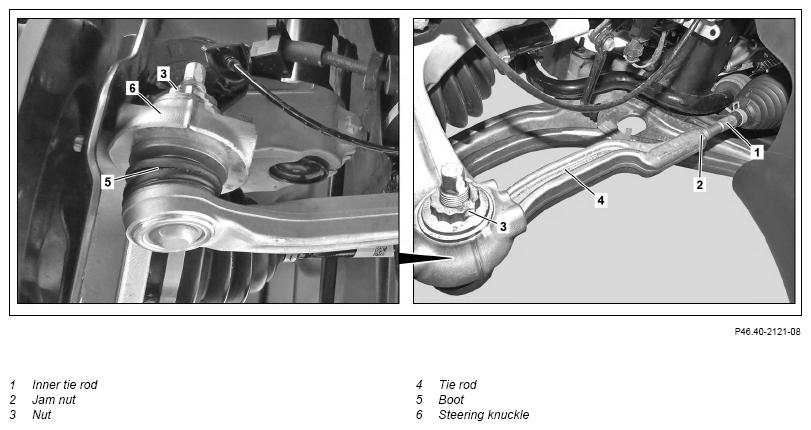

| 2 | Loosen counternut (2) on inner tie rod (1). | ||
| *BA46.40-P-1002-01Q | |||
| 3 | Pry tie rod (4) off steering knuckle (6). | AR46.40-P-0200-02MFA | |
Otherwise, the ball head or steering knuckle (6) will be damaged. |
|||
| *BA46.40-P-1001-01Q | |||
| Fig 2 | |||
| Fig 4 | |||
| Fig 3 | |||
| 4 | Remove tie rod (4) from inner tie rod (1). | ||
| 5 | Install in the reverse order. | ||
| Finishing activity | |||
| 6 | Perform chassis alignment. | AR40.20-P-0200MFA |
FRONT AXLE TIE ROD
| Number | Designation | Model 118, 177, 247 | Model 243 | ||
|---|---|---|---|---|---|
| BA46.40-P-1001-01Q | Nut, tie rod to steering knuckle | Stage 1 | Nm | 90 | 90 |
| Stage 2 | ∠° | 90 | 90 | ||
FRONT AXLE TIE ROD
| Number | Designation | Model 118, 177, 247 | Model 243 | |
|---|---|---|---|---|
| BA46.40-P-1002-01Q | Jam nut, tie rod | Nm | 60 | 60 |
