Overview Of System Components, Automatically Controlled All-Wheel Drive (4MATIC) - GF28.00-P-9998AVG
MODEL 205, 253 with transmission 725.041

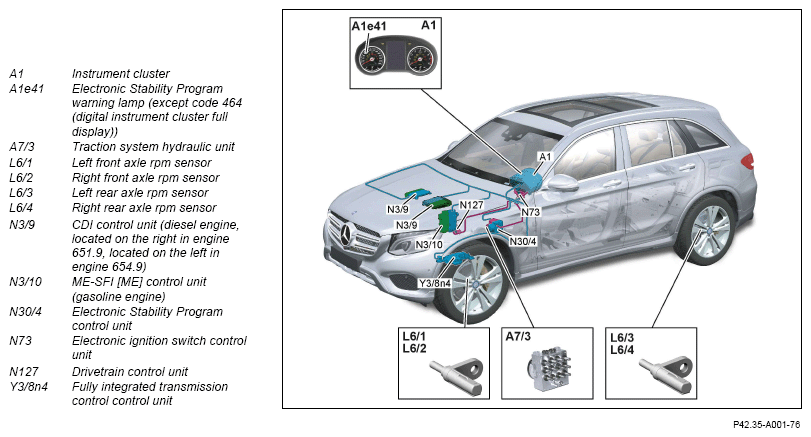

Show on model 253.9
Model 205, 253 with transmission 725.041 with code 464 (Full display digital instrument cluster)
The indicator and warning lamps are shown as pictograms in the display.

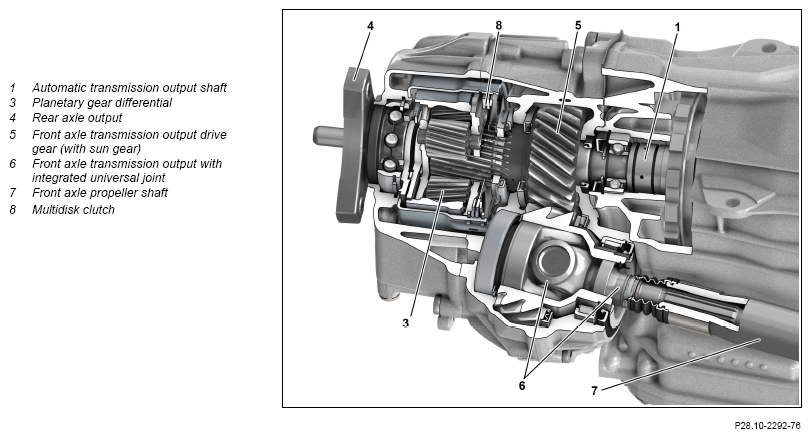

Sectional view of transfer case, shown on double planetary gear set
| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| Component description for CDI control unit | Model 253 with engine 651.9 with transmission 725.041 N3/9 |
GF07.16-P-6000OLD | |
| Model 253 (except 253.311/911) with engine 654.9 with transmission 725.041 N3/9 |
GF07.16-P-6000ORF | ||
| Component description for ME-SFI (ME) control unit | Model 205 with engine 276.8 with transmission 725.041 N3/10 |
GF07.61-P-6000MMV | |
| Model 253 with engine 264.9 with transmission 725.041 N3/10 |
GF07.61-P-6000MRS | ||
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119RF | |
| Component description for the electronic ignition lock control unit | Model 205 with transmission 725.041 up to model year 2019 Model 253 (except 253.99) with transmission 725.041 up to model year 2020 N73 |
GF80.57-P-6001RF | |
| Model 205 with transmission 725.041 as of model year 2019 Model 253 (except 253.99) with transmission 725.041 as of model year 2020 N73 |
GF80.57-P-6001RFM | ||
| Drivetrain control unit, component description | Model 205 with engine 276.8 with transmission 725.041 N127 |
GF54.21-P-2141RF | |
| Model 253 with engine 264.9 with transmission 725.041 N127 |
GF54.21-P-2141MRS | ||
| Model 253 with engine 651.9 with transmission 725.041 N127 |
GF54.21-P-2141OLD | ||
| Model 253 with engine 654.9 with transmission 725.041 N127 |
GF54.21-P-2141ORH | ||
| Component description for fully integrated transmission control unit | Model 205 with transmission 725.041 Y38n4 |
GF27.60-P-5165ANG | |
| Model 253 with transmission 725.041 Y38n4 |
GF27.60-P-5165ANI | ||
| Table of contents for function description, automatically controlled all-wheel drive (4MATIC) | GF28.00-P-0999AVG |
