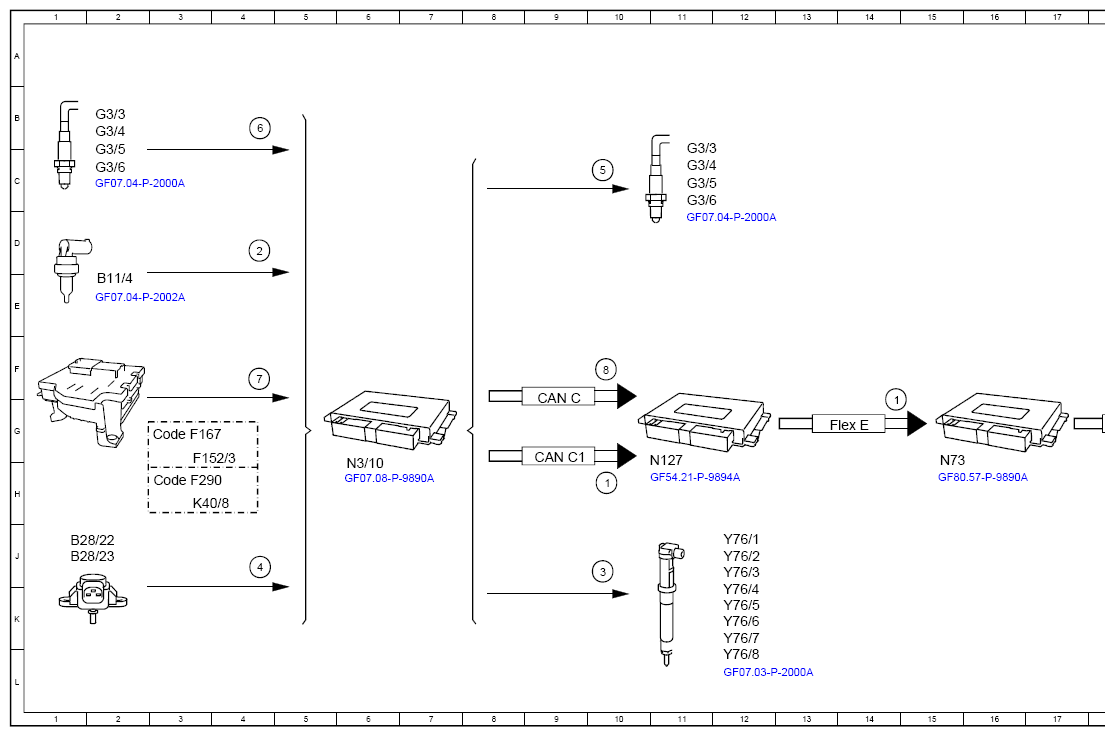

Function Schematic For Lambda Control - PE07.10-P-2511-97B
Engine 176, 177 in model 167
Engine 177 in model 290 as of model year 2021
| Code: | Designation: | Position |
|---|---|---|
| 1 | Engine diagnosis indicator lamp, actuation | 10H |
| 1 | Engine diagnosis indicator lamp, actuation | 14G |
| 1 | Engine diagnosis indicator lamp, actuation | 19G |
| 1 | Engine diagnosis indicator lamp, actuation | 21E |
| 2 | Coolant temperature sensor, signal | 4D |
| 3 | Fuel injectors, actuation | 10J |
| 4 | Engine load, signal | 4J |
| 5 | Oxygen sensor sensor element, signal | 10C |
| 6 | Oxygen sensor heater, actuation | 4B |
| 7 | Circuit 87, status | 4F |
| 8 | Engine running, signal | 10F |

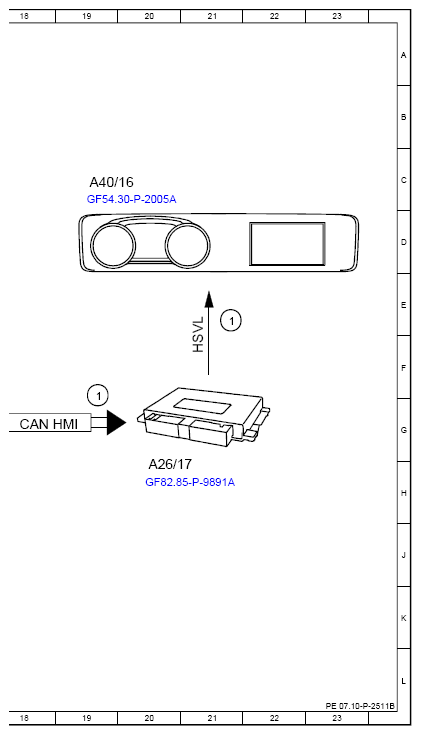

| A26/17 | Head unit | 20H |
| A40/16 | Head unit/instrument cluster display cluster | 19C |
| B11/4 | Coolant temperature sensor | 2E |
| B28/22 | Left pressure sensor downstream of throttle valve | 1J |
| B28/23 | Right pressure sensor downstream of throttle valve | 1J |
| CAN C | Engine CAN | 9G |
| CAN C1 | Drive train CAN | 9H |
| CAN HMI | User interface CAN | 18G |
| Code F167 | Model series 167 | 3G |
| Code F290 | Model series 290 | 3H |
| F152/3 | Engine compartment fuse and relay module | 3H |
| Flex E | Chassis FlexRay | 14G |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 2B |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 11C |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 2B |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 11C |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 2C |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 11C |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 2C |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 11C |
| HSVL | High-speed video link | 21E |
| K40/8 | Engine fuse and relay module | 3H |
| N127 | Drivetrain control unit | 11H |
| N3/10 | ME-SFI [ME] control unit | 6H |
| N73 | Electronic ignition switch control unit | 15H |
| Y76/1 | Cylinder 1 fuel injector | 12J |
| Y76/2 | Cylinder 2 fuel injector | 12J |
| Y76/3 | Cylinder 3 fuel injector | 12J |
| Y76/4 | Cylinder 4 fuel injector | 12K |
| Y76/5 | Cylinder 5 fuel injector | 12K |
| Y76/6 | Cylinder 6 fuel injector | 12K |
| Y76/7 | Cylinder 7 fuel injector | 12K |
| Y76/8 | Cylinder 8 fuel injector | 12L |
