Overview Of System Components For Electric Seats - GF91.29-S-9992TRF
Model 447
With Code U90 (Left luxury seat of 1st seat row)
With Code XM0 (Facelift)
Model 447
With Code U91 (Right luxury seat of 1st seat row)
With Code XM0 (Facelift)

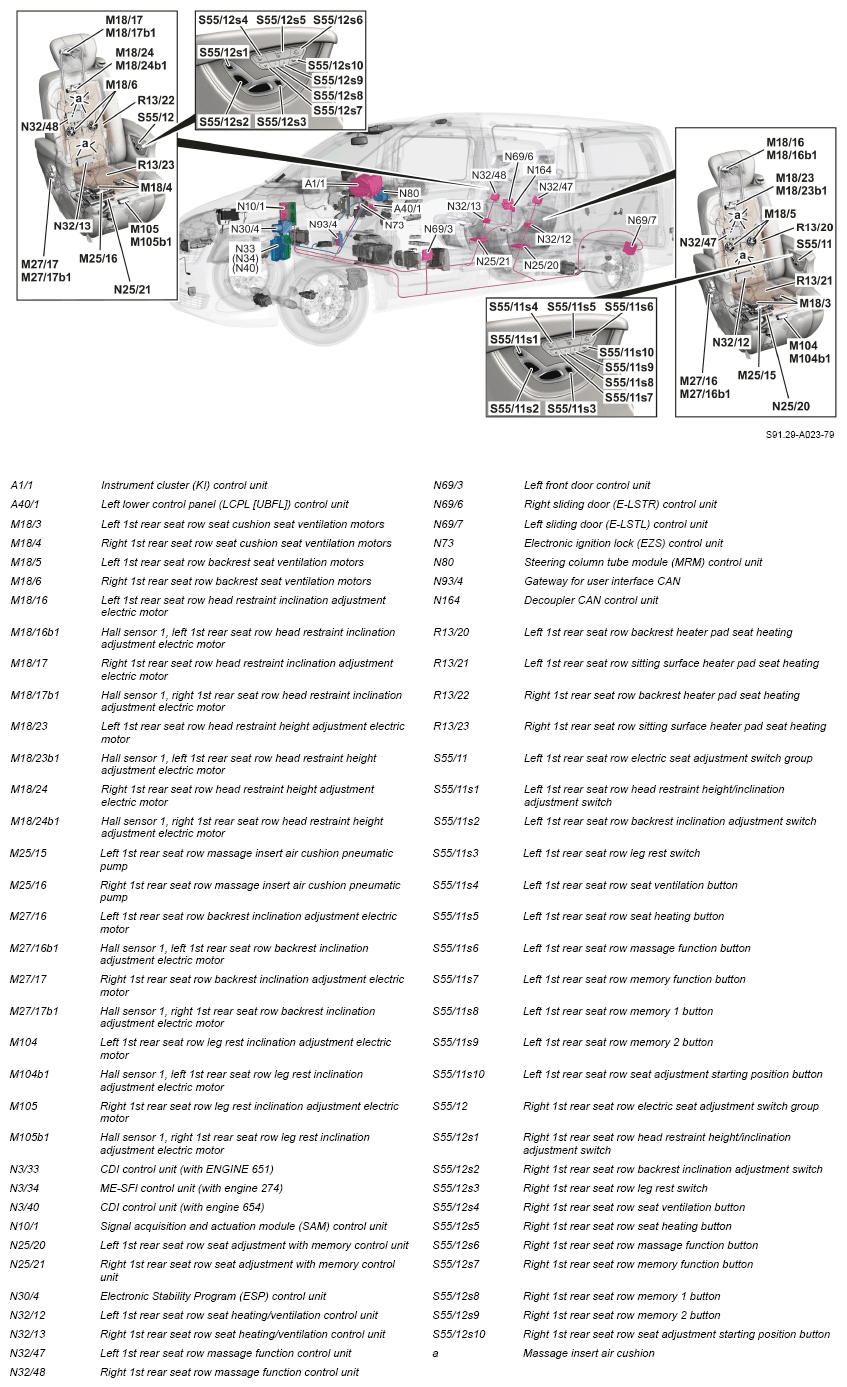

Illustration shows MODEL 447.8
| Instrument cluster (IC) control unit, component description | A1/1 | GF54.30-S-6004TRF | |
| Left rear individual seat control unit, component description | With code U90 (Left 1st seat row luxury seat) N25/20 |
GF91.29-S-5242TRF | |
| Right rear individual seat control unit, component description | With code U91 (Right 1st seat row luxury seat) N25/21 |
GF91.29-S-5243TRF | |
| Electronic Stability Program (ESP(R)) control unit, component description | Model 447 with code U90 (Left luxury seat of 1st seat row) with code XM0 (Facelift) except code XM7 (MOPF II) Model 447 with code U91 (Right luxury seat of 1st seat row) with code XM0 (Facelift) except code XM7 (MOPF II) N30/4 |
GF42.45-S-3005TRA | |
| Component description for massage function control unit | Model 447 with code U90 (Left luxury seat of 1st seat row) with code XM0 (Facelift) except code XM7 (MOPF II) Model 447 with code U91 (Right luxury seat of 1st seat row) with code XM0 (Facelift) except code XM7 (MOPF II) N32/47, N32/48 |
GF91.25-S-5212TRF | |
| Component description for left front door control unit | Model 447 with code U90 (Left luxury seat of 1st seat row) with code XM0 (Facelift) except code XM7 (MOPF II) Model 447 with code U91 (Right luxury seat of 1st seat row) with code XM0 (Facelift) except code XM7 (MOPF II) N69/3 |
GF72.29-S-6001TRA | |
| Component description for the electronic ignition lock control unit | Model 447 with code U90 (Left luxury seat of 1st seat row) with code XM0 (Facelift) except code XM7 (MOPF II) Model 447 with code U91 (Right luxury seat of 1st seat row) with code XM0 (Facelift) except code XM7 (MOPF II) N73 |
GF80.57-S-6001TRF | |
| Table of contents for function description of electric seats | GF91.29-S-0992TRF |
