Remove/Install Triangular Window - AR67.30-P-2560S

Model 223.0/1

except code Z07 (B7 armoring on special protection version)

Courtesy of MERCEDES-BENZ USA

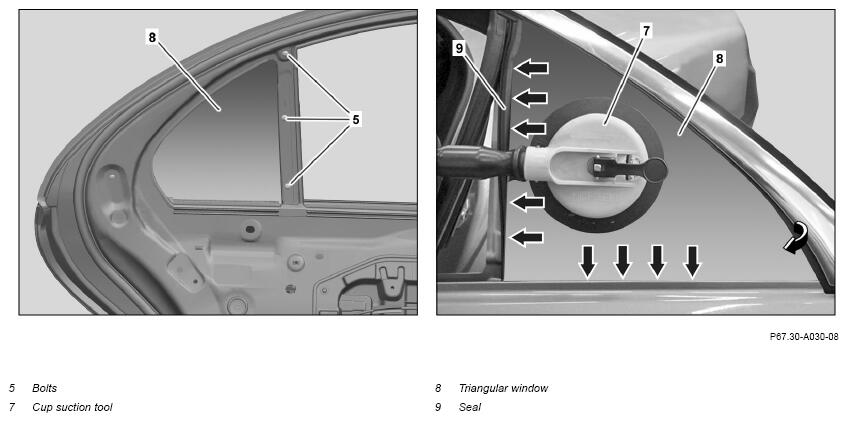

Shown with code 297 (Electric roller sun blinds in left and right rear doors)

Courtesy of MERCEDES-BENZ USA

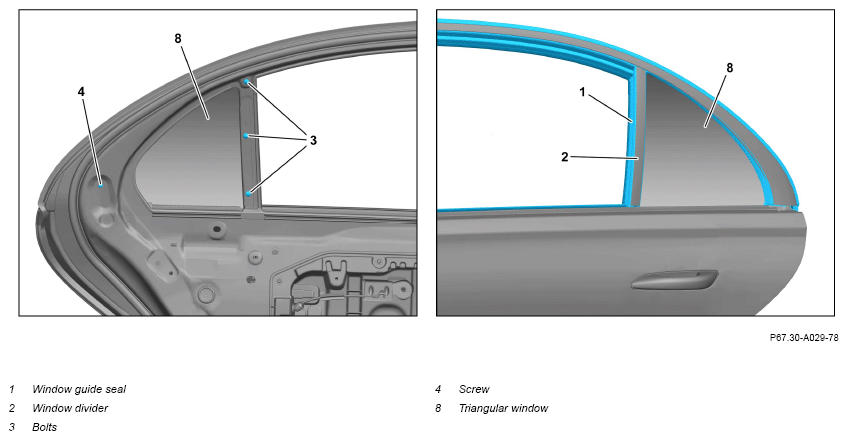

Shown except code 297 (Electric roller sun blinds in left and right rear doors)

	Remove/install
1	Remove rear door window frame lining.		AR72.12-P-0008S
2	Remove roller sunblind.	Model 223.0/1 with code 297 (Electric roller sun blind in left and right rear door) except code Z07 (B7 armoring on special protection version)	AR68.50-P-3402S
3	Remove screws (5) and remove cover above window divider (2).	Model 223.0/1 with code 297 (Electric roller sun blind in left and right rear door) except code Z07 (B7 armoring on special protection version)
4	Remove lower trim strip from window frame.		AR72.12-P-1712S
5	Remove rear window guide seal (1) from window divider (2).
6	Remove screw/bolts (3).	Model 223.0/1 with code 297 (Electric roller sun blind in left and right rear door) except code Z07 (B7 armoring on special protection version) Only two screws (3) are installed.
7	Remove window divider (2).	Carefully remove window divider (2) from window channel. The window divider (2) may otherwise be damaged. Slide window divider (2) downward, swivel to side, and remove from window channel. Coat window divider (2), seal (9), and window guide seal (1) at rear in assembly area with lubricant. Lubricant, rubber assembly 1 L	*BR00.45-Z-1010-06A
8	Unscrew screw (4).
9	Attach cup suction tool (7) to outside of triangular window (8).
10	Use long wedge to press seal (9) out of triangular window (8) at bottom and side, as shown (arrows).	Long wedge	Fig 1
11	Remove triangular window (8) from seal (9).	Coat groove of seal (9) with lubricant. Lubricant, rubber assembly 1 L	*BR00.45-Z-1010-06A
12	Install in the reverse order.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
