Remove/Install Left Fuel Pressure Sensor - AR07.04-P-0201SC

Engine 176 in model 223

Courtesy of MERCEDES-BENZ USA

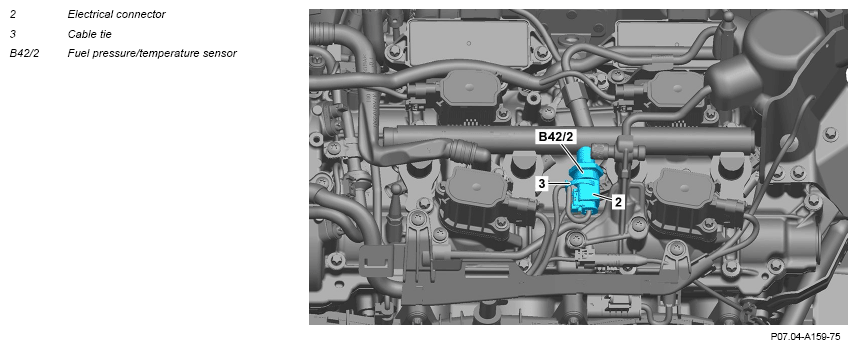

Fig 1: Left Fuel Pressure Sensor Components Location - Model 223 With Engine 176

Courtesy of MERCEDES-BENZ USA

	Risk of explosion caused by fuel igniting. Risk of injury to skin and eyes caused by fuel spraying out at high pressure	Keep all ignition sources out of hazard area. Do not carry out any work on system when it is pressurized.	AS07.16-Z-0001-01A
	Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel.	No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
Topical note	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	General information on work on gasoline direct injection system		AH07.00-P-2000-01A
	Remove/install
1	Clamp off ground line of on-board electrical system battery (G1).		AR54.10-P-0051S
2	Remove left air filter housing.	: Do not install upper engine cover until after the leak test.	AR09.10-P-1151SC

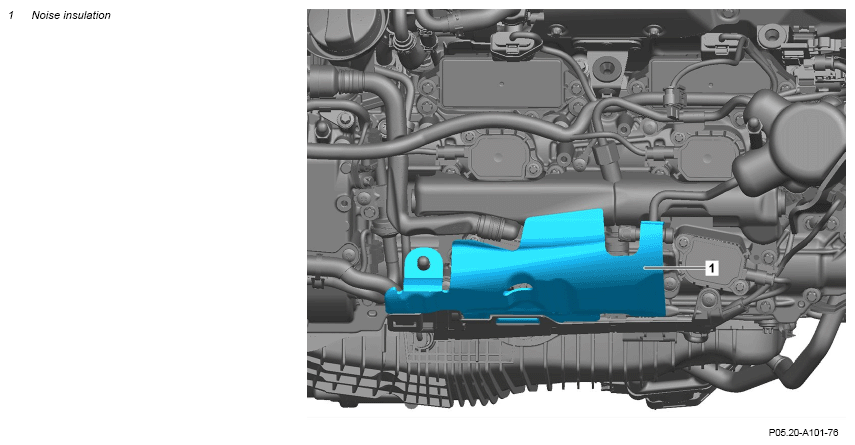

3	Remove noise insulation (1).
4	Remove fuel pressure via the service connection.		AR07.03-P-1460-01SC
		Dust protection cap to service connection	*BA07.03-P-1005-01H
		Pressure hose	Fig 3
5	Disconnect cable tie (3).	: Install new cable tie (3).
6	Release and disconnect the electrical connector (2).
7	Thoroughly clean the rail in the area of the fuel pressure/temperature sensor (B42/2).	Ensure absolute cleanliness when working on the high-pressure fuel circuit. Use only lint-free cleaning cloths High-pressure fuel circuit will otherwise be damaged. Assembly cleaner	*BR00.45-Z-1028-04A
8	Remove the fuel pressure/temperature sensor (B42/2).	: Replace the fuel pressure/temperature sensor (B42/2). Collect exuded fuel using a suitable absorbent rag. Pressure transducer to fuel distributor	*BA07.52-P-1002-01J
		Tool kit	Fig 2
9	Install in the reverse order.
	Check
10	Check fuel high-pressure circuit for leak tightness.		AR07.03-P-1010-04MM
	Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area.	AS49.00-Z-0001-01A
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
11	Perform engine test run. While doing so, check engine for proper operation and leak tightness.
