Function Schematic For User Interface - PE54.30-P-2505-97G
Model 223
with code 803 (YoM 22/1)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Central locking, status | 25E |
| 1 | Central locking, status | 25C |
| 10 | Driver camera, status | 25A |
| 11 | Driver camera eye distance, signal | 25A |
| 12 | Driver camera head position, signal | 24A |
| 13 | Flashing over the air | 18A |
| 2 | Door rotary tumbler switch, status | 25E |
| 2 | Door rotary tumbler switch, status | 18E |
| 2 | Door rotary tumbler switch, status | 25C |
| 3 | Circuit 15, status | 24E |
| 4 | Display ON/OFF, request | 34G |
| 4 | Display ON/OFF, request | 28F |
| 5 | Display settings, request | 34G |
| 5 | Display settings, request | 28E |
| 6 | Image data, signal | 34F |
| 6 | Image data, signal | 34B |
| 7 | Operation, signal | 24E |
| 7 | Operation, signal | 18B |
| 7 | Operation, signal | 12B |
| 7 | Operation, signal | 25K |
| 7 | Operation, signal | 25G |
| 7 | Operation, signal | 24C |
| 7 | Operation, signal | 7B |
| 8 | Instrument cluster message, request | 24C |
| 9 | Driver camera calibration, request | 34C |
| A26/17 | Head unit | 27H |

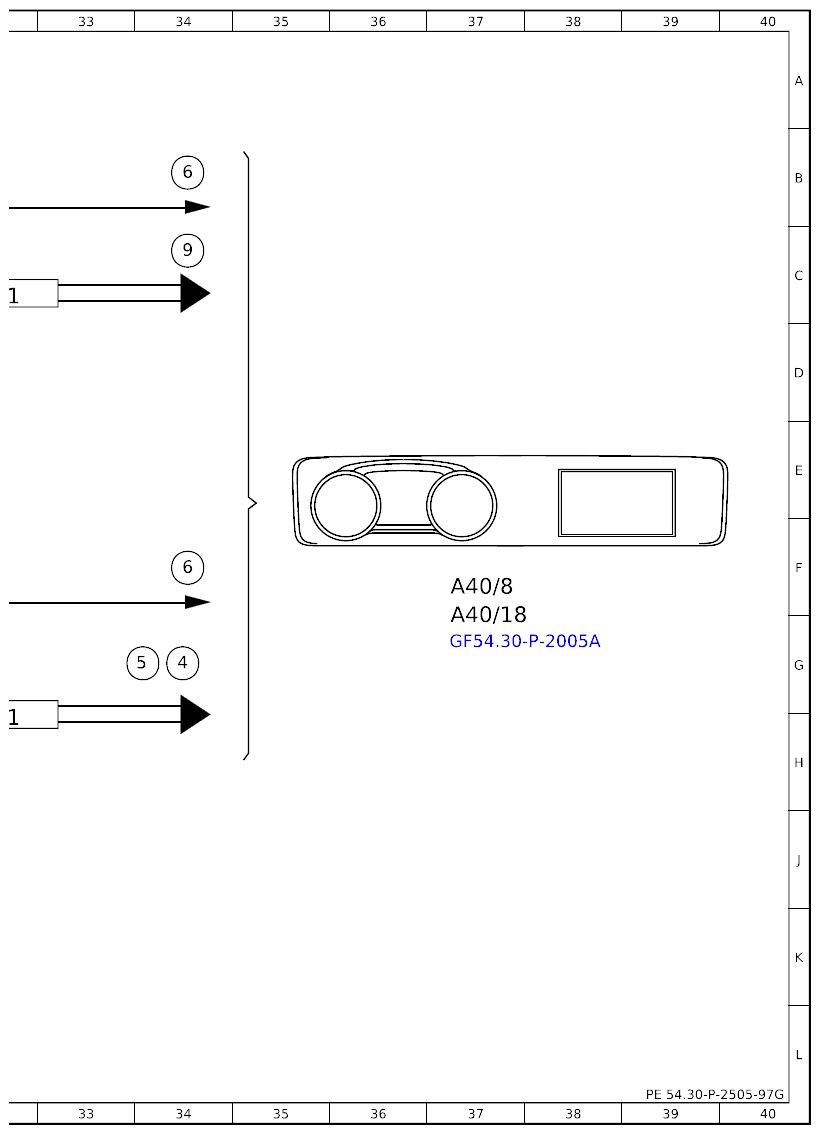

| A40/18 | Instrument cluster display | 37G |
| A40/18 | Instrument cluster display | 20B |
| A40/8 | Touchscreen | 37F |
| B25/36 | Microphone | 2K |
| B25/37 | Microphone | 2K |
| CAN A1 | CAN 1 for telematics | 9G |
| CAN A1 | CAN 1 for telematics | 18G |
| CAN A1 | CAN 1 for telematics | 24B |
| CAN A1 | CAN 1 for telematics | 32C |
| CAN A1 | CAN 1 for telematics | 32H |
| CAN B1 | CAN 1 for vehicle interior | 8E |
| CAN B1 | CAN 1 for vehicle interior | 15E |
| CAN LR | CAN for steering wheel | 11C |
| CAN LR1 | CAN for steering wheel gearshift buttons | 6C |
| Ethernet | Ethernet | 24F |
| Ethernet | Ethernet | 24D |
| Ethernet | Ethernet | 27E |
| Flex E | Chassis FlexRay | 17C |
| HSVL | High-speed video link | 32F |
| HSVL | High-speed video link | 32B |

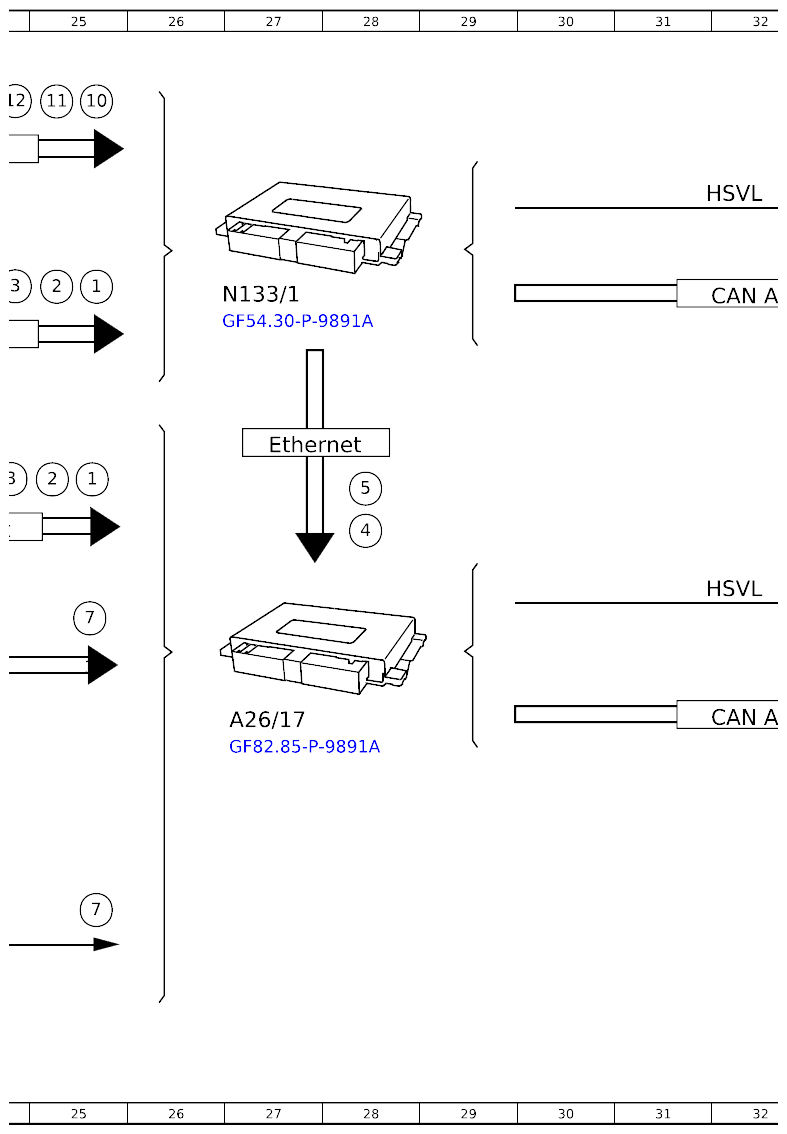

| N133/1 | Instrument cluster control unit | 26C |
| N135 | Steering wheel electronics | 8D |
| N69/1 | Left front door control unit | 2F |
| N72/1 | Upper control panel control unit | 2H |

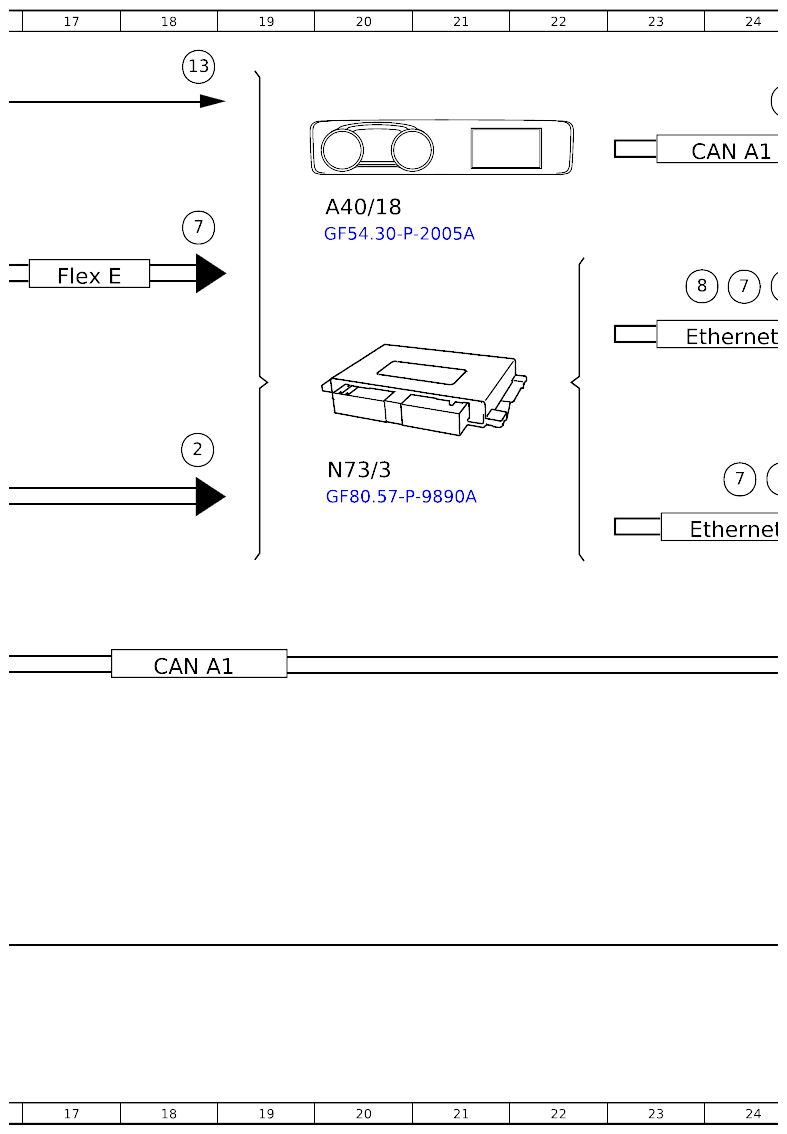

| N73/3 | Electronic ignition switch control unit | 20E |

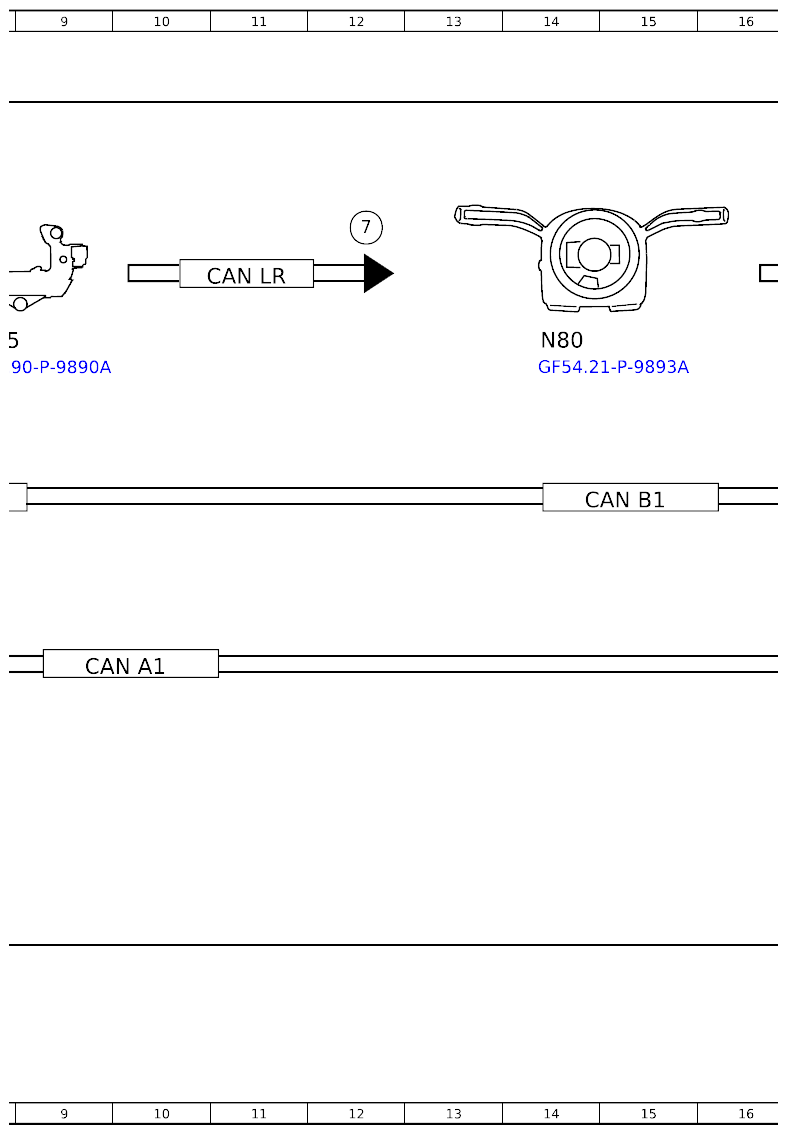

| N80 | Steering column module control unit | 14D |

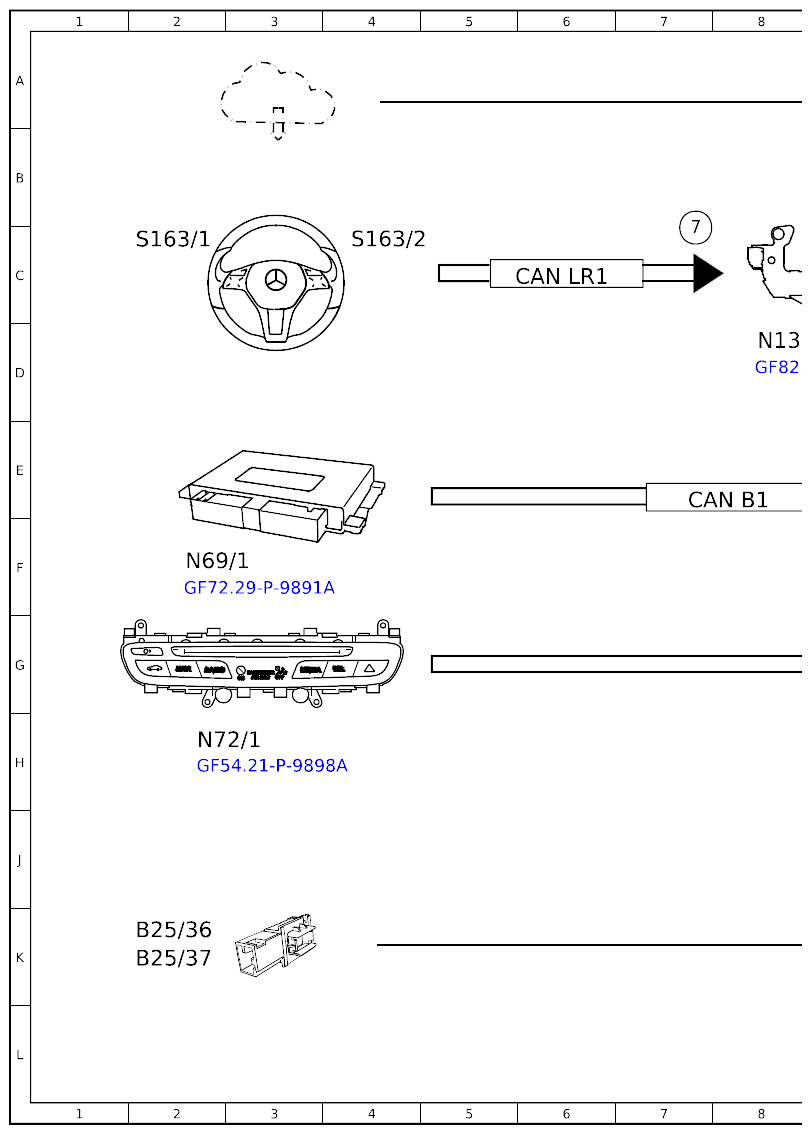

| S163/1 | Multifunction steering wheel button group 1 | 2C |
| S163/2 | Multifunction steering wheel button group 2 | 4C |
