Component Description For Pressure Sensor - GF06.40-P-0010A

Model 223 With Engine 256

Courtesy of MERCEDES-BENZ USA

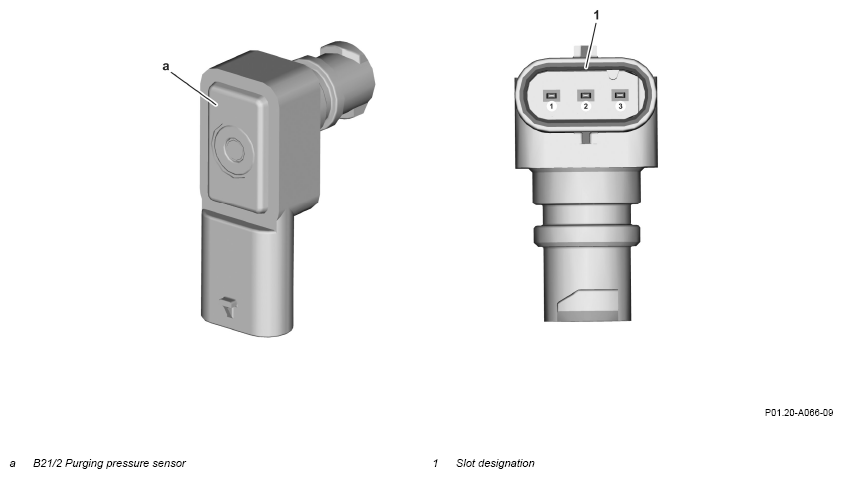

Depiction valid for model 223 with engine M256

The numbers on the pins indicate the pin numbering of the slots.

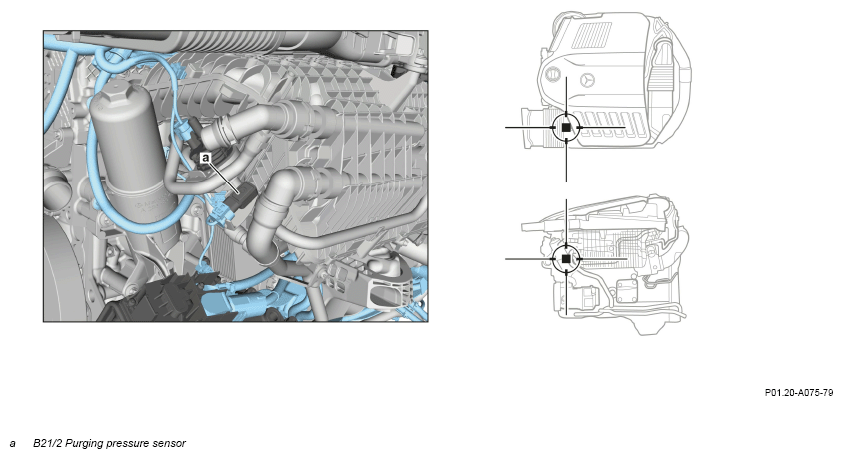

Fig 1: Pressure Sensor Components Location - Model 223 With Engine 256

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with engine M256
