Smooth Running Control, Function - GF07.10-D-1011TSA

Engine 651 in model 907

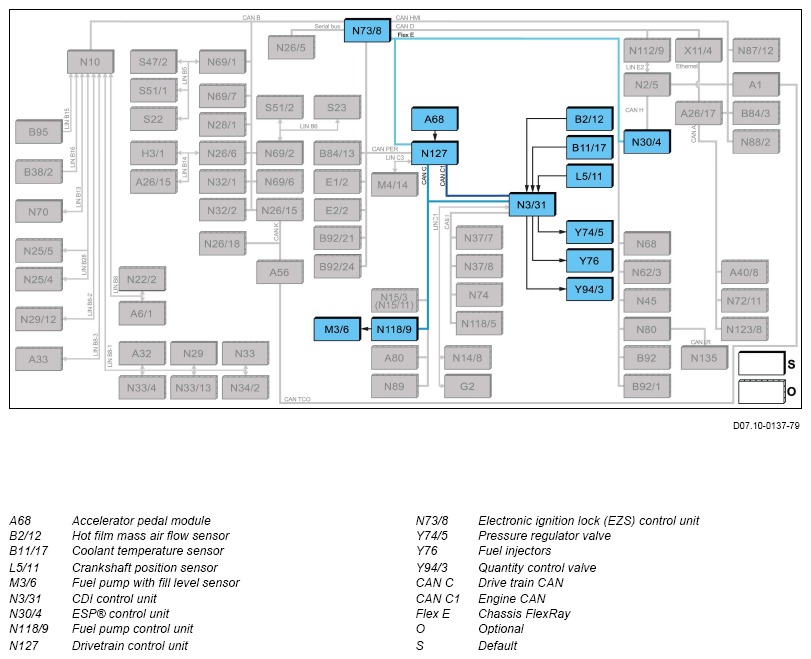

Block diagram

Function requirements for smooth running control, general points

• Circuit 87M (engine timing ON)
• Engine running.

Smooth running control, general points

Smooth running control reduces any rough running in the RPM range from approx. 750 to approx. 2,600 RPM.

For smooth running control, the CDI control unit (N3/28) reads in the following sensors and signals:

• Hot film MAF sensor, engine load
• Coolant temperature sensor
• Crankshaft position sensor, engine speed +
• Accelerator pedal module, accelerator pedal setting via powertrain control unit and drive train CAN
• Control unit for ESP®, wheel speed signal via chassis FlexRay, control unit for drive train and drive CAN
• Fuel pump with fill level sensor via the control unit for the fuel pump and the drive CAN

Function sequence for smooth running control

The function sequence is described in the following steps:

• Function sequence for combustion misfire detection
• Function sequence for sensor adaptation

Function sequence for combustion misfire detection

To do this the CDI control unit reads in the signal from the crankshaft position sensor and evaluates its regularity. If irregularities are found on the crankshaft position sensor signal, the CDI control unit corrects the fuel pressure in the rails via the pressure regulating valve and the quantity control valve, and it corrects the injection period via actuation of the fuel injectors.

The fuel pressure in the rails and the injection period of the fuel injectors combine to produce a specific injection quantity.

Function sequence for sensor adaptation

The tolerance range for smooth running analysis is reduced after successful adaptation of the crankshaft position sensor.

In this way, the smooth running analysis can be adapted to the specific smooth running characteristics of the engine.

In decel mode (accelerator pedal not pressed), if a uniform smooth operation is given, the CDI control unit stores the engine's smooth running properties. These are required as a comparison parameter for misfire detection.

The tolerance range for smooth running analysis is preset in the CDI control unit and can be adapted using Xentry Diagnostics if necessary.
