Remove/Install Radar Sensor - Ar30.30-D-1210TS
Model 907
MODIFICATION NOTES
| 112.08.2020 | Work procedure completely revised. |
Shown on model 907.6 with code D51 (full-width partition wall with one window) and with code JB6 (Parking Package with 360° camera)
Shown on model 907.6 with code D51 (full-width partition wall with one window) and with code JB6 (Parking Package with 360° camera)
| Notes on preventing damage to electronic components due to a magnetic tool | AH54.00-P-0002-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove radiator grille (5). | AR88.40-D-4001TS | |

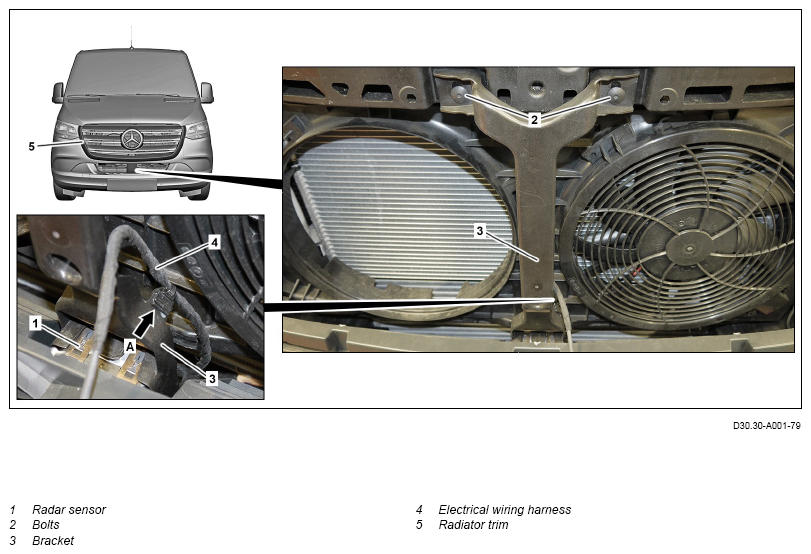

| 2 | Unclip electrical wiring harness (4) from holder (3) (arrow A). | Model 907 with code JB6 (Parking package with 360-degree camera) |
Fig 1 |
| 3 | Remove screws (2). | ||

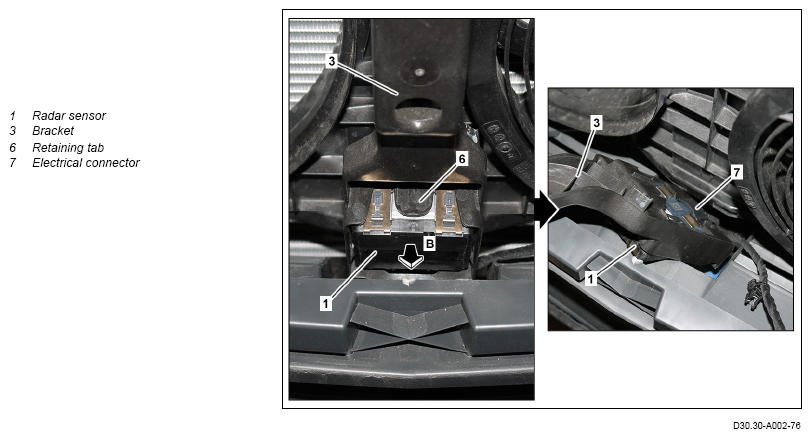

| 4 | Release radar sensor (1) at retaining tab (6) and swivel forward in direction of arrow (arrow B) out of bracket (3). | ||
| 5 | Lift bracket (3) with radar sensor (1) far enough for electrical connector (7) to be accessible. | ||
| 6 | Disconnect electrical connector (7) and remove radar sensor (1) from bracket (3). | ||
| 7 | Install in the reverse order. | ||
| 8 | Commission radar sensor (1) with diagnostic system. | ||
| AD00.00-D-2000-06TS |
