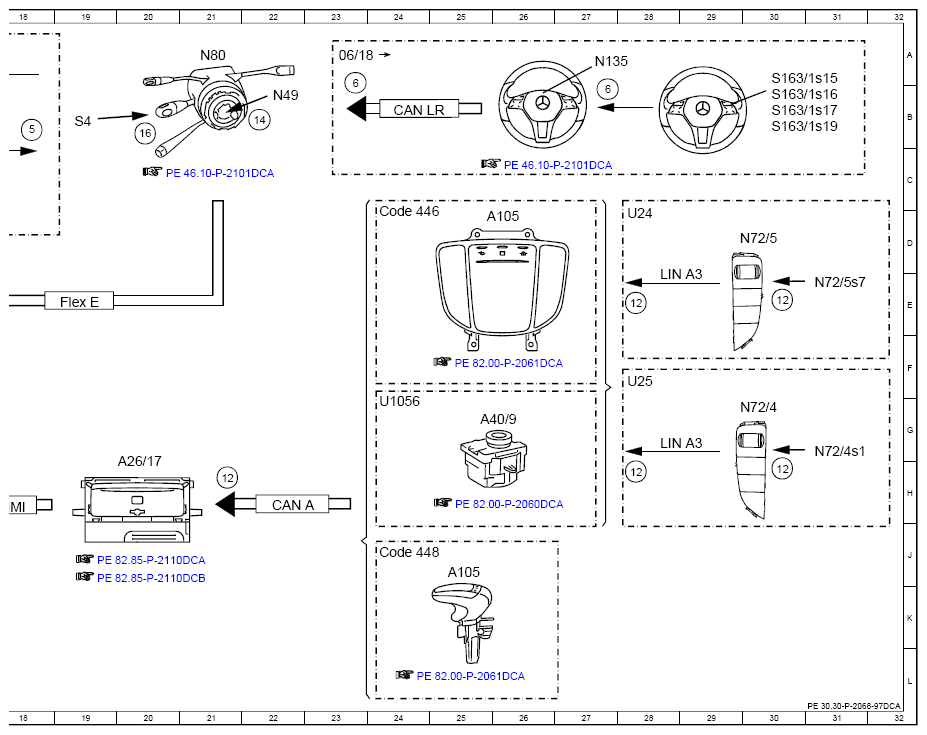

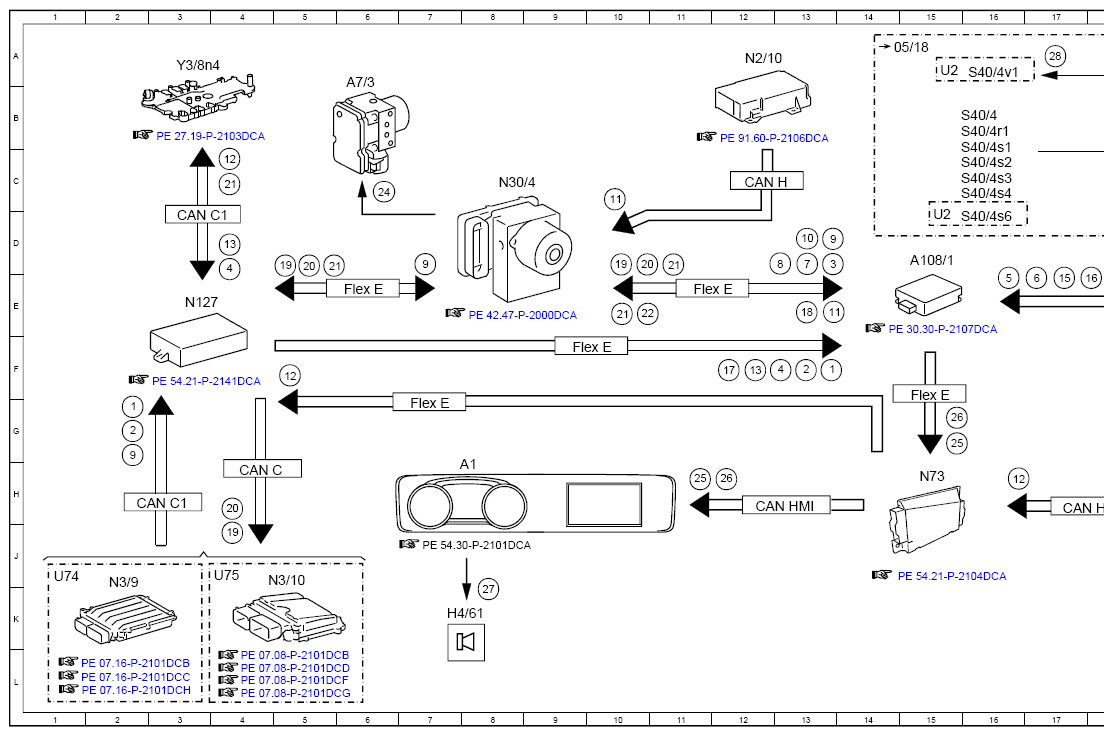

Electrical Function Schematic For DISTRONIC Distance-Pilot - PE30.30-P-2068-97DCA
Model 238 Up To Model Year 2021
With Code 239 (Adaptive Cruise Control Pro (Distronic Pro))
Except Code 23P (Drive Package)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 14F |
| 1 | Engine running, signal | 2G |
| 10 | Braking torque, signal | 13D |
| 11 | Speed, turn rate and lateral acceleration, signal | 10C |
| 11 | Speed, turn rate and lateral acceleration, signal | 13E |
| 12 | DYNAMIC SELECT switch, status | 4C |
| 12 | DYNAMIC SELECT switch, status | 5F |
| 12 | DYNAMIC SELECT switch, status | 16H |
| 12 | DYNAMIC SELECT switch, status | 21H |
| 12 | DYNAMIC SELECT switch, status | 28E |
| 12 | DYNAMIC SELECT switch, status | 30E |
| 12 | DYNAMIC SELECT switch, status | 28H |
| 12 | DYNAMIC SELECT switch, status | 30H |
| 13 | Transmission mode, signal | 12F |
| 13 | Transmission mode, signal | 4D |
| 14 | Steering wheel angle sensor, signal | 22B |
| 15 | Steering wheel angle, signal | 17E |
| 16 | Combination switch, status | 20B |
| 16 | Combination switch, status | 18E |
| 17 | Accelerator pedal position, signal | 12F |
| 18 | Brake pedal, status | 13E |
| 19 | Engine torque, increase request | 10D |
| 19 | Engine torque, increase request | 5D |
| 19 | Engine torque, increase request | 4J |
| 2 | Drivetrain operational, signal | 13F |
| 2 | Drivetrain operational, signal | 2G |
| 20 | Engine torque, reduce request | 5D |
| 20 | Engine torque, reduce request | 4H |
| 20 | Engine torque, reduce request | 11D |
| 21 | Engage targeted gear, request | 4C |
| 21 | Engage targeted gear, request | 6D |
| 21 | Engage targeted gear, request | 11D |
| 22 | Braking torque reduction, request | 11E |
| 24 | Traction system hydraulic unit, actuation | 6C |
| 25 | Warning and system messages, request | 15G |
| 25 | Warning and system messages, request | 11H |
| 26 | Warning tone, request | 12H |
| 26 | Warning tone, request | 15G |
| 27 | Speaker, actuation | 8K |
| 28 | Light-emitting diode actuation | 17A |
| 3 | Parking brake, status | 13D |
| 4 | Gear range, status | 12F |
| 4 | Gear range, status | 4D |
| 5 | CRUISE CONTROL lever, signal | 16E |
| 5 | CRUISE CONTROL lever, signal | 18B |
| 6 | Operation, signal | 17E |
| 6 | Operation, signal | 23B |
| 6 | Operation, signal | 27B |
| 7 | Wheel speed, signal | 13D |
| 8 | ESP®, status | 13D |
| 9 | Available torque, signal | 2G |
| 9 | Available torque, signal | 13D |
| 9 | Available torque, signal | 7D |
| A1 | Instrument cluster | 8H |
| A105 | Touchpad | 25J |
| A105 | Touchpad | 26D |
| A108/1 | DISTRONIC Distance-Pilot controller unit | 15D |
| A26/17 | Head unit | 20H |
| A40/9 | Audio/COMAND control panel | 25G |
| A7/3 | Traction system hydraulic unit | 6B |
| CAN A | Telematics CAN | 22H |
| CAN C | Engine CAN | 4H |
| CAN C1 | Drive train CAN | 3H |
| CAN C1 | Drive train CAN | 3D |
| CAN H | Vehicle dynamics CAN | 12C |
| CAN HMI | User interface CAN | 12H |
| CAN HMI | User interface CAN | 17H |
| CAN LR | Steering wheel CAN | 24B |
| Code 446 | Touchpad only | 24D |
| Code 448 | Touchpad | 24J |
| Flex E | Chassis FlexRay | 6E |
| Flex E | Chassis FlexRay | 11E |
| Flex E | Chassis FlexRay | 9F |
| Flex E | Chassis FlexRay | 15G |
| Flex E | Chassis FlexRay | 19E |
| Flex E | Chassis FlexRay | 7G |
| H4/61 | Instrument cluster speaker | 7K |
| LIN A3 | LCP LIN | 28G |
| LIN A3 | LCP LIN | 28E |
| N127 | Drivetrain control unit | 3E |
| N135 | Steering wheel electronics | 27A |
| N2/10 | Supplemental restraint system control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 5J |
| N3/9 | CDI control unit | 2J |
| N30/4 | Electronic Stability Program control unit | 8C |
| N49 | Steering wheel angle sensor | 22B |
| N72/4 | Left lower control panel | 30G |
| N72/4s1 | DYNAMIC SELECT switch | 31G |
| N72/5 | Right lower control panel | 30D |
| N72/5s7 | DYNAMIC SELECT switch | 31E |
| N73 | Electronic ignition switch control unit | 15H |
| N80 | Steering column module control unit | 21A |
| S163/1s15 | Variable speed limiter and Distance-Pilot button | 30A |
| S163/1s16 | Variable speed limiter and Distance-Pilot switch | 30B |
| S163/1s17 | Distance-Pi lot switch | 30B |
| S163/1s19 | Cruise control resume switch | 30B |
| S4 | Combination switch | 19B |
| S40/4 | Cruise control lever | 15B |
| S40/4r1 | DISTRONIC control | 15B |
| S40/4s1 | Resume from memory switch | 15C |
| S40/4s2 | Decelerate and set switch | 15C |
| S40/4s3 | Accelerate and set switch | 15C |
| S40/4s4 | OFF switch | 15C |
| S40/4s6 | Variable speed limiter switch | 15D |
| S40/4v1 | Variable speed limiter light-emitting diode | 16A |
| U1056 | Valid except code 446 (Touchpad only) | 24G |
| U2 | Not valid for USA | 15D |
| U2 | Not valid for USA | 15A |
| U24 | Valid for manual transmission | 28D |
| U25 | Valid for automatic transmission | 28F |
| U74 | Valid for diesel engines | 1J |
| U75 | Valid for gasoline engines | 4J |
| Y3/8n4 | Fully integrated transmission control control unit | 3A |
