Anti-Lock Brake System (ABS) Module C155
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

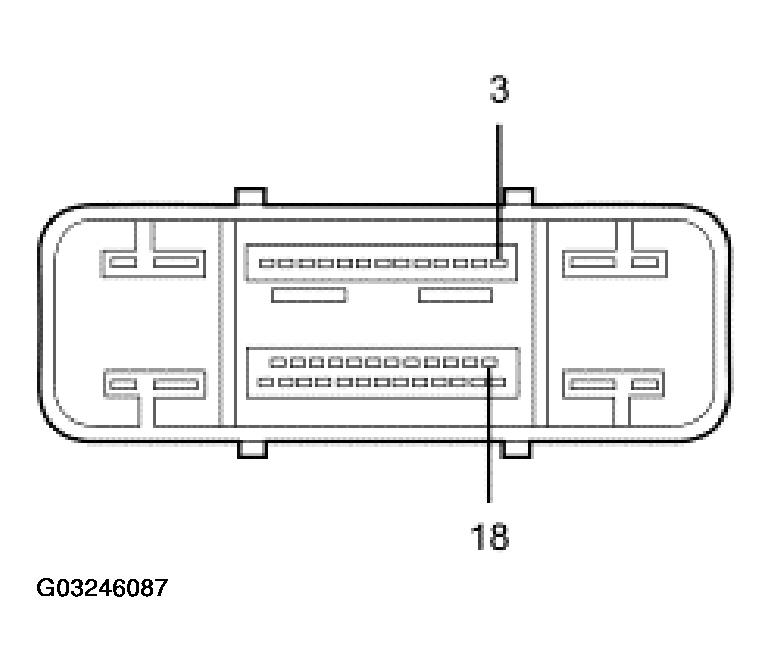

ABS MODULE C155 CONNECTOR CIRCUIT REFERENCE
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 3 | 914 (TN/OG) SCP communication circuit | Less than 5 ohms between the ABS module and the DLC. Greater than 10,000 ohms to ground with all network modules disconnected. |
| 18 | 915 (PK/LB) SCP communication circuit | Less than 5 ohms between the ABS module and the DLC. Greater than 10,000 ohms to ground with all network modules disconnected. |
