Driver Temperature Controlled Seat Module C3031a and Passenger Temperature Controlled Seat Module C3036a

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

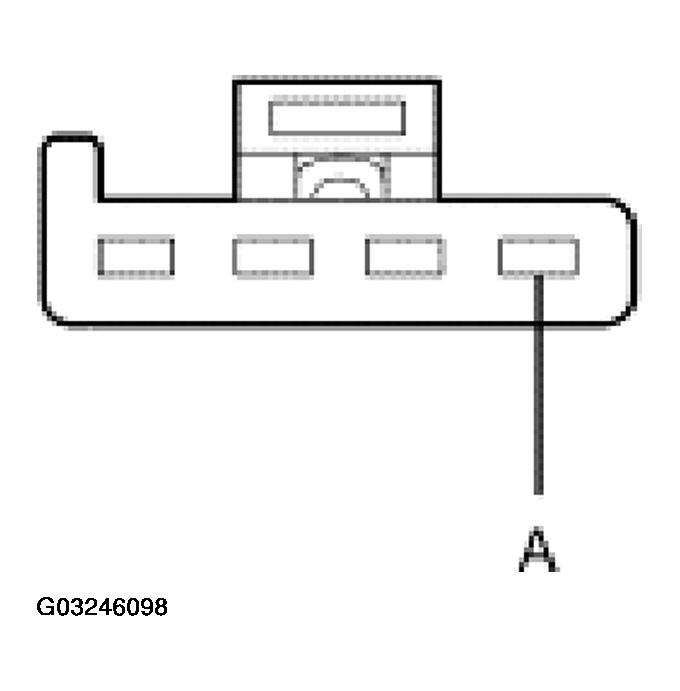

Fig 1: Identifying Driver Temperature Controlled Seat Module Connector Terminal

Courtesy of FORD MOTOR CO.

DRIVER TEMPERATURE CONTROLLED SEAT MODULE C3031A AND PASSENGER TEMPERATURE CONTROLLED SEAT MODULE C3036A CONNECTOR CIRCUIT REFERENCE

Pin Number (s)	Circuit Designation/Description	Normal Condition/Measurement
A (C3031a and C3036a)	2077 (PK/LB) UBP communication circuit	Less than 5 ohms between the temperature controlled seat module in question, and the DLC. Greater than 10,000 ohms to ground with all network modules disconnected.
