Window Relay

With one test lamp lead connected to relay output side and ignition in "ON" or "ACC" position, test lamp should light. If lamp does not light, check continuity of wiring harness from ignition switch to actuating terminal on relay. Check voltage at input terminal. If wiring and voltage are good, replace relay.

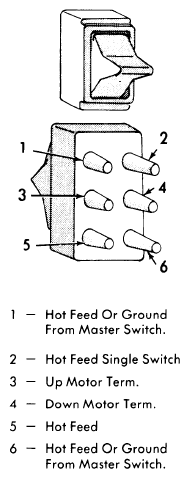

Fig 1: Power Window Single Switch Pin Connection Location and Identification

Courtesy of FORD MOTOR CO.

Fig 2: Two-Door Models Power Window Wiring Diagram LTD II, Cougar, Granada, Monarch, Thunderbird

Courtesy of FORD MOTOR CO.

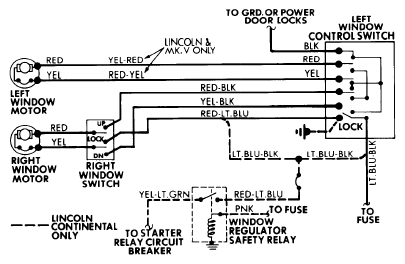

Fig 3: Two-Door Models Power Window Wiring Diagram Ford, Mercury, Lincoln Continental, Continental Mark V

Courtesy of FORD MOTOR CO.

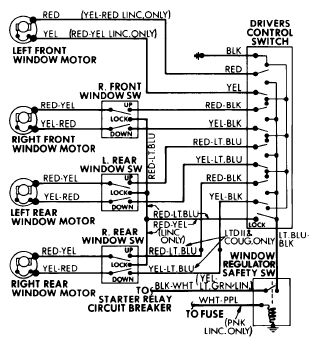

Fig 4: Ford Motor Co. Four-Door Models Power Window Wiring Diagram

Courtesy of FORD MOTOR CO.
