Wiper Switch Continuity Test
Check wiper switch for continuity using the following chart. Disconnect the connector under the steering column and Test using an ohmmeter or self-powered test lamp.
NOTE:

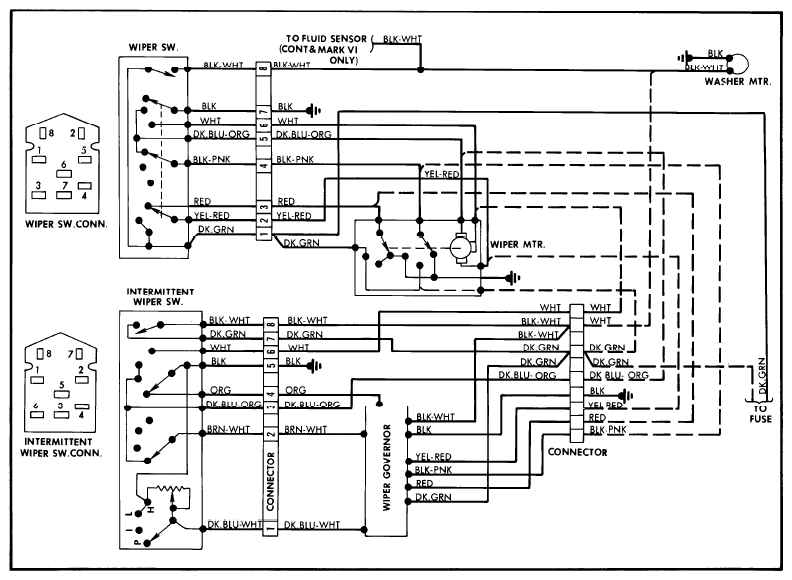

See Wiper switch connector terminal identification in Figure.
WIPER CONTINUITY TEST
| Position | Standard Wiper | Intermittent Wiper | ||
|---|---|---|---|---|
| OFF | 2-3, 4-5 | 2-3, 1-4-5 | ||
| INTER | ..... | (1)1-3-5 | ||
| LOW | 1-2, 5-7 | 1-3-5 | ||
| HIGH | 1-2, 6-7 | 1-5-6 | ||
| WASH | 1-8 | 7-8 | ||
|
||||
