All Models

Sliding type switch mounted on steering column and controlled by an actuating rod which is operated by the lock cylinder through a rack-and-sector mechanism. Up and down movement of actuator moves switch slider back and forth within switch housing, establishing various switch positions.

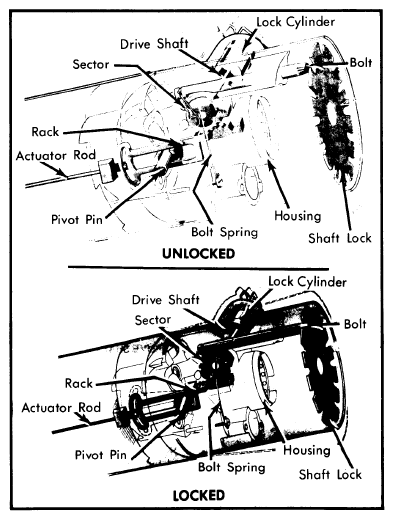

Fig 1: General Motors Steering Column Locking Mechanism (Others Similar)

Courtesy of NOT AVAILABLE

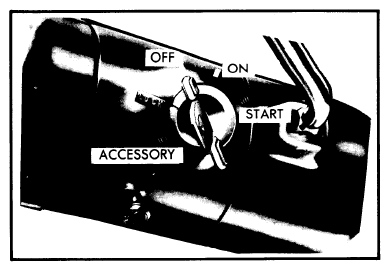

Fig 2: Steering Column Lock Positions Common to All Models

Courtesy of NOT AVAILABLE
