MOTORCRAFT Model 740 2-Barrel: Overhaul: Disassembly: Notes

NOTE: To prevent damage to throttle plates, install carburetor legs or four 2 1/4" bolts into base, using eight nuts. Use separate containers for parts removed from various assemblies.

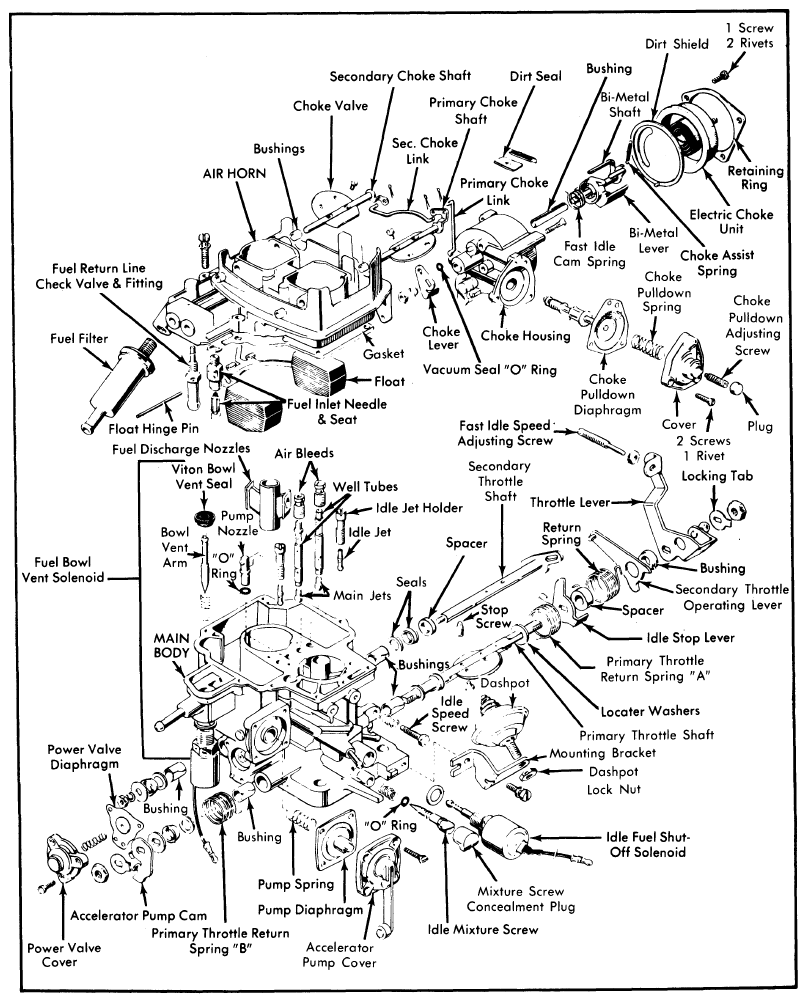

Fig 1: Exploded View of Motorcraft Model 740 2-Bbl. Carburetor

Courtesy of FORD MOTOR CO.

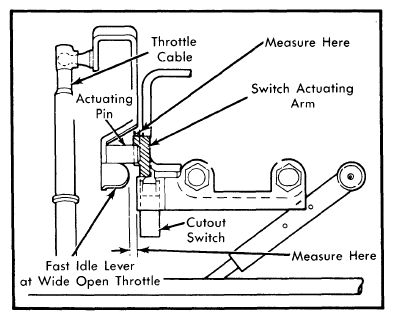

Fig 2: Wide Open Throttle A/C Cutout Switch Adjustment

Courtesy of FORD MOTOR CO.
