Spark Tester

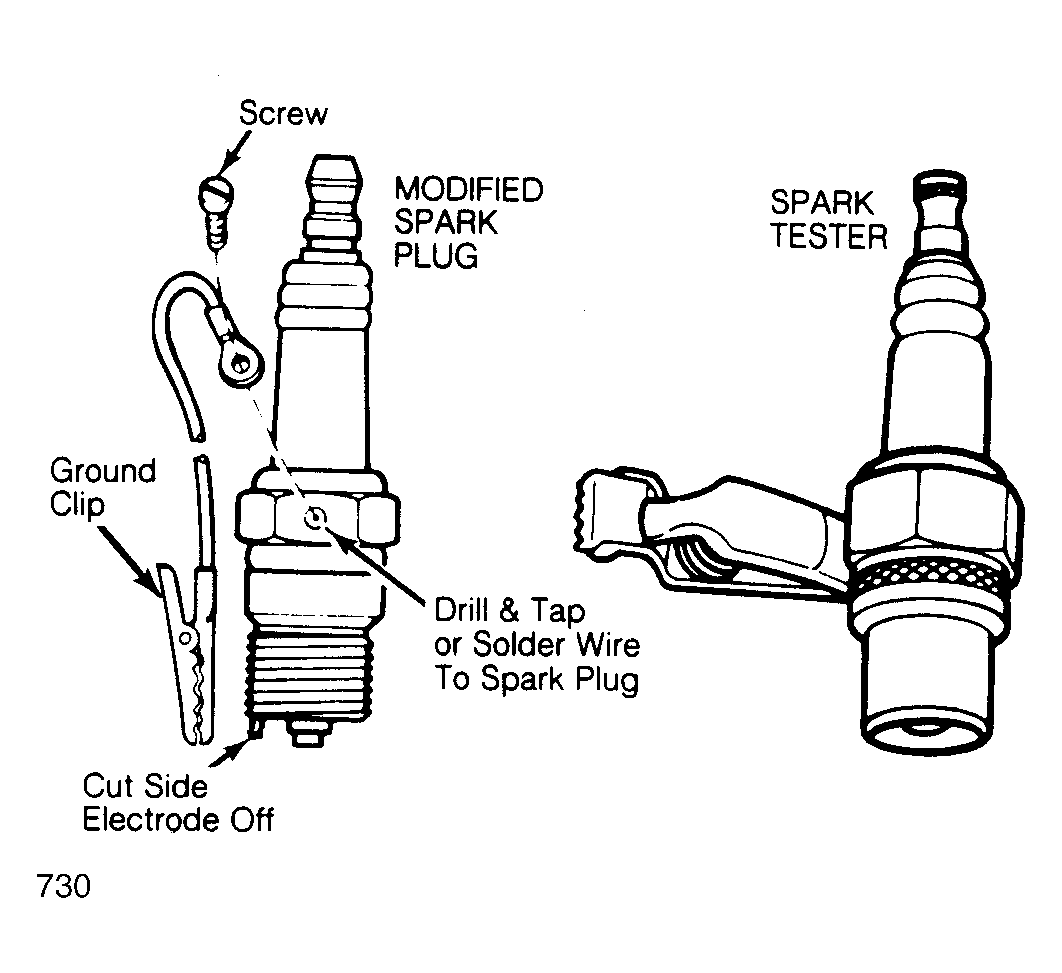

Fig 1: Modified Spark Plug & Spark Tester Spark plug modified by cutting off side terminal and installing spring clip.
G730

Use either a spark tester tool or modify a spark plug (cut off side terminal and install spring clip for grounding plug housing) for use in testing ignition system. See Fig 1.
