Engine Controls

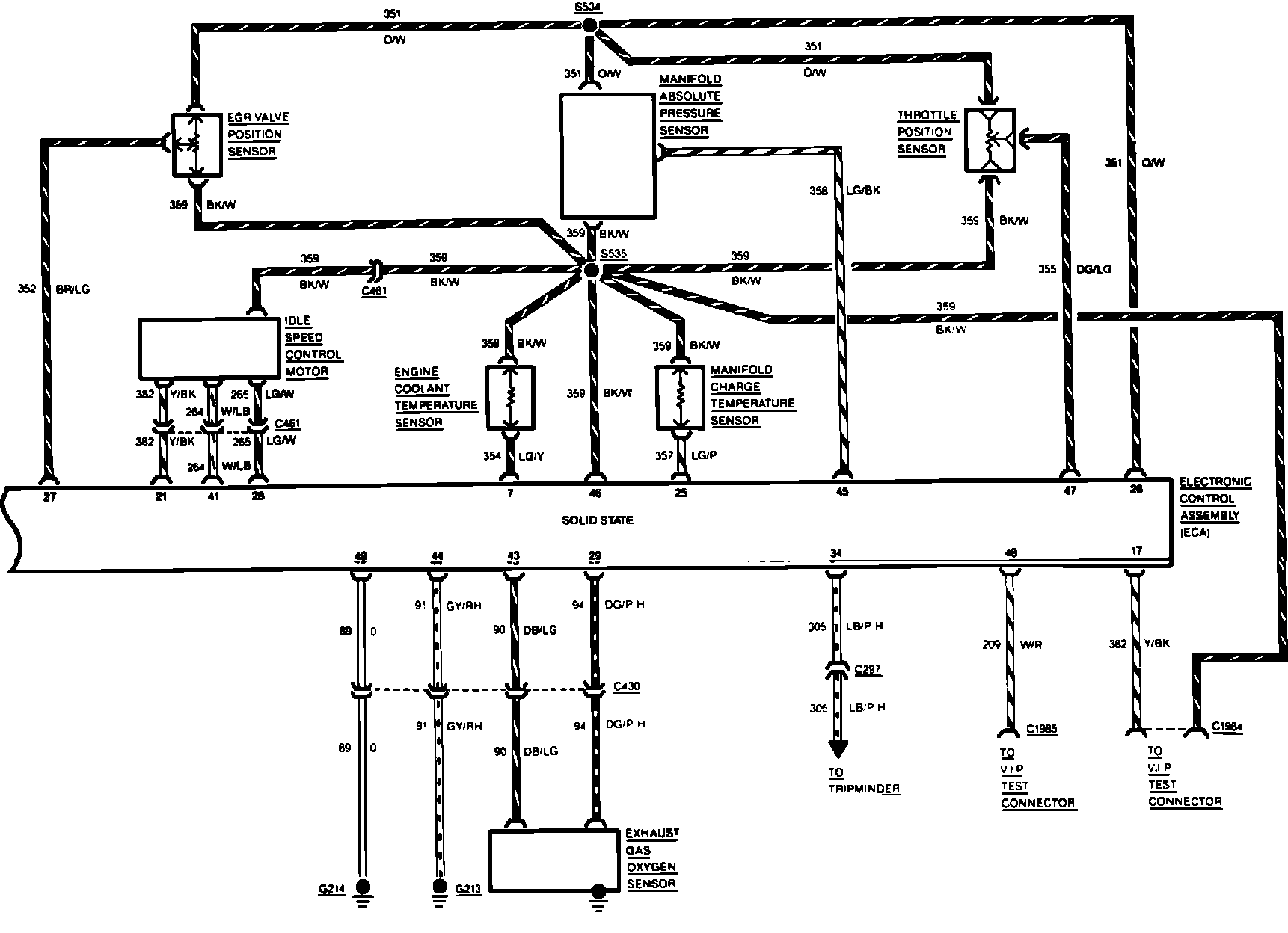

Fig. 24 Electronic Engine Control Wiring Circuit (Part 1 of 3). 1985 3.8 Litre Engine:

Fig. 24 Electronic Engine Control Wiring Circuit (Part 2 of 3). 1985 3.8 Litre Engine:

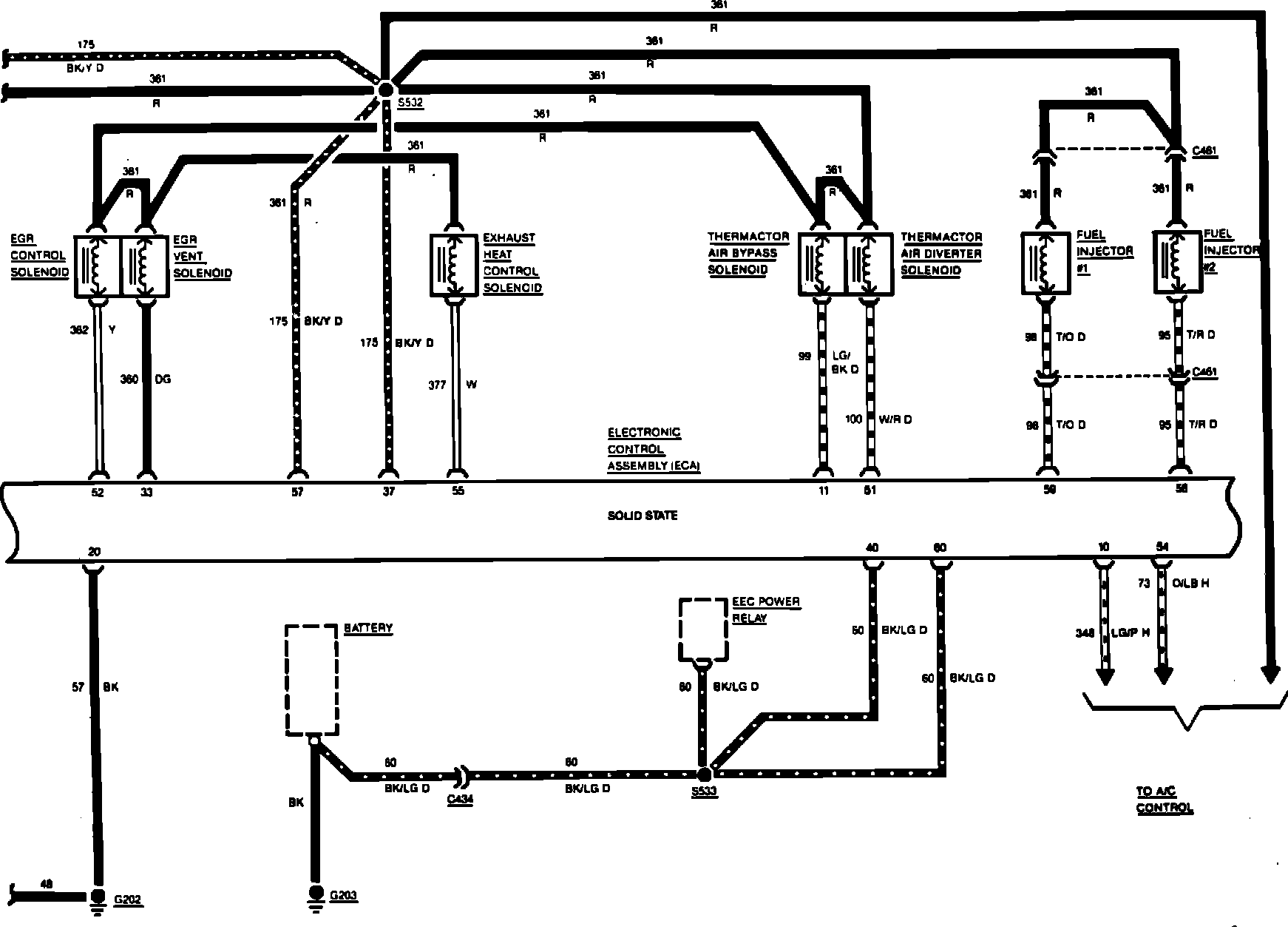

Fig. 24 Electronic Engine Control Wiring Circuit (Part 3 of 3). 1985 3.8 Litre Engine:
