Rear Wheels

Rear wheel toe-in is adjusted with eccentric cams located at the rear control arm-to-body attachments. See Figure . On station wagon models, the adjustment cams are located at the lower suspension arm-to-rear spindle attachment. See Figure .

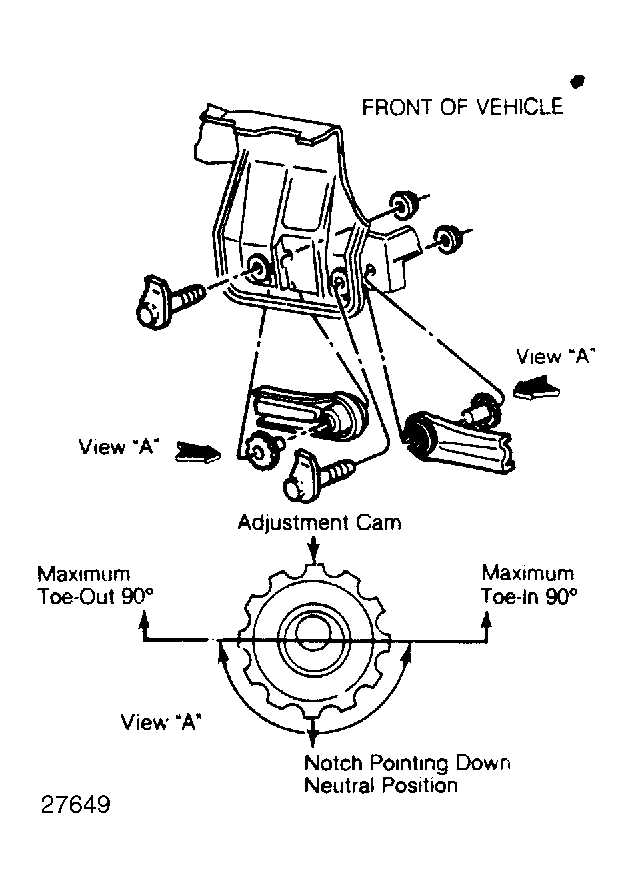

Fig 1: Rear Wheel Toe-In Adjustment Cam (Sedan)

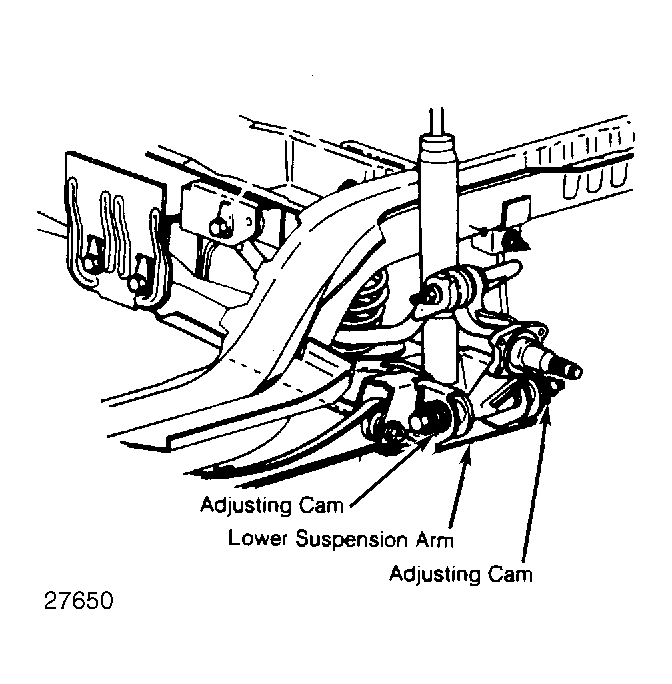

Fig 2: Rear Wheel Toe-In Adjustment Cam (Station Wagons)
