Using STAR Tester

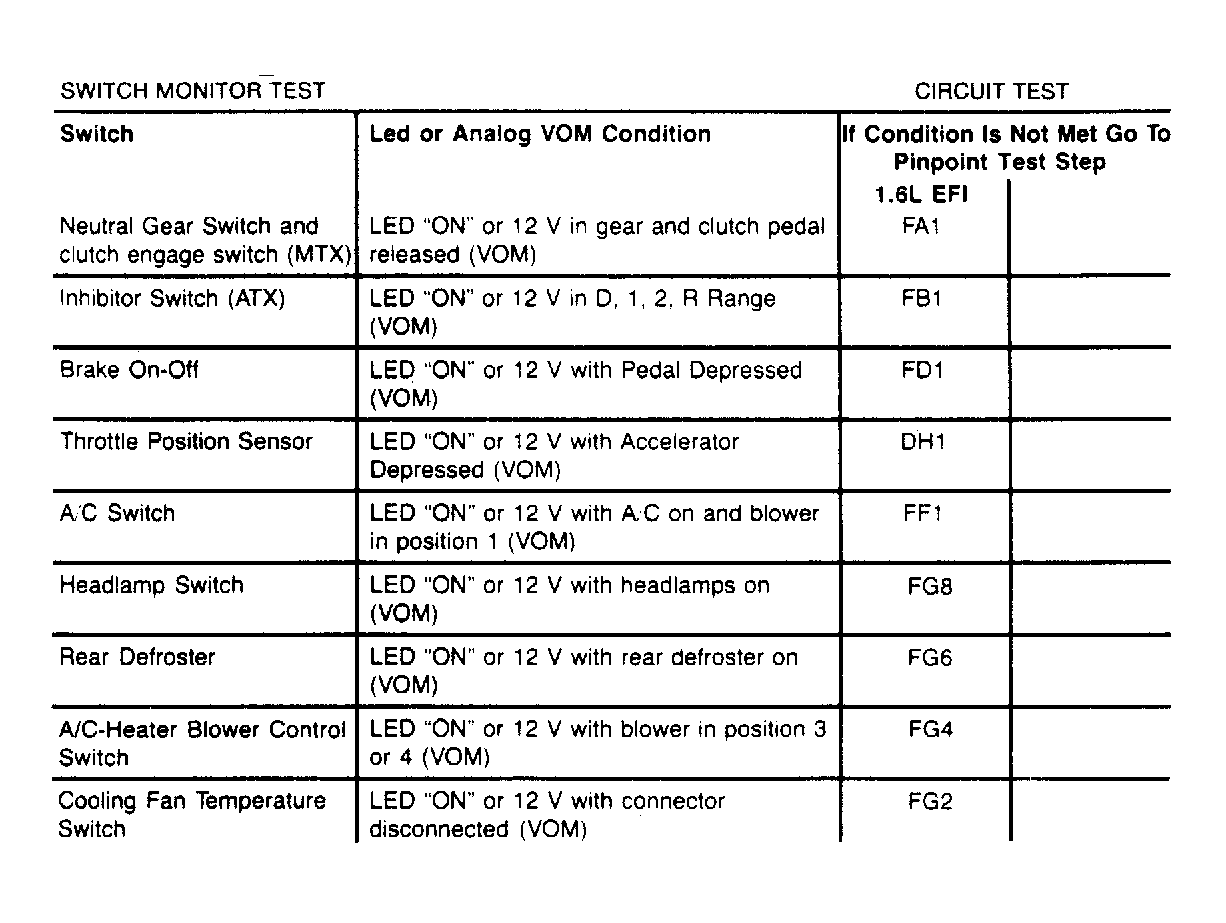

Connect STAR tester adapter cable. Note output of LED on the adapter cable as each switch is actuated. Record all tests results and proceed to SWITCH MONITOR TEST CHART. See Figure .
