Control Module HVAC: Locations

A/C CONTROL AMPLIFIER

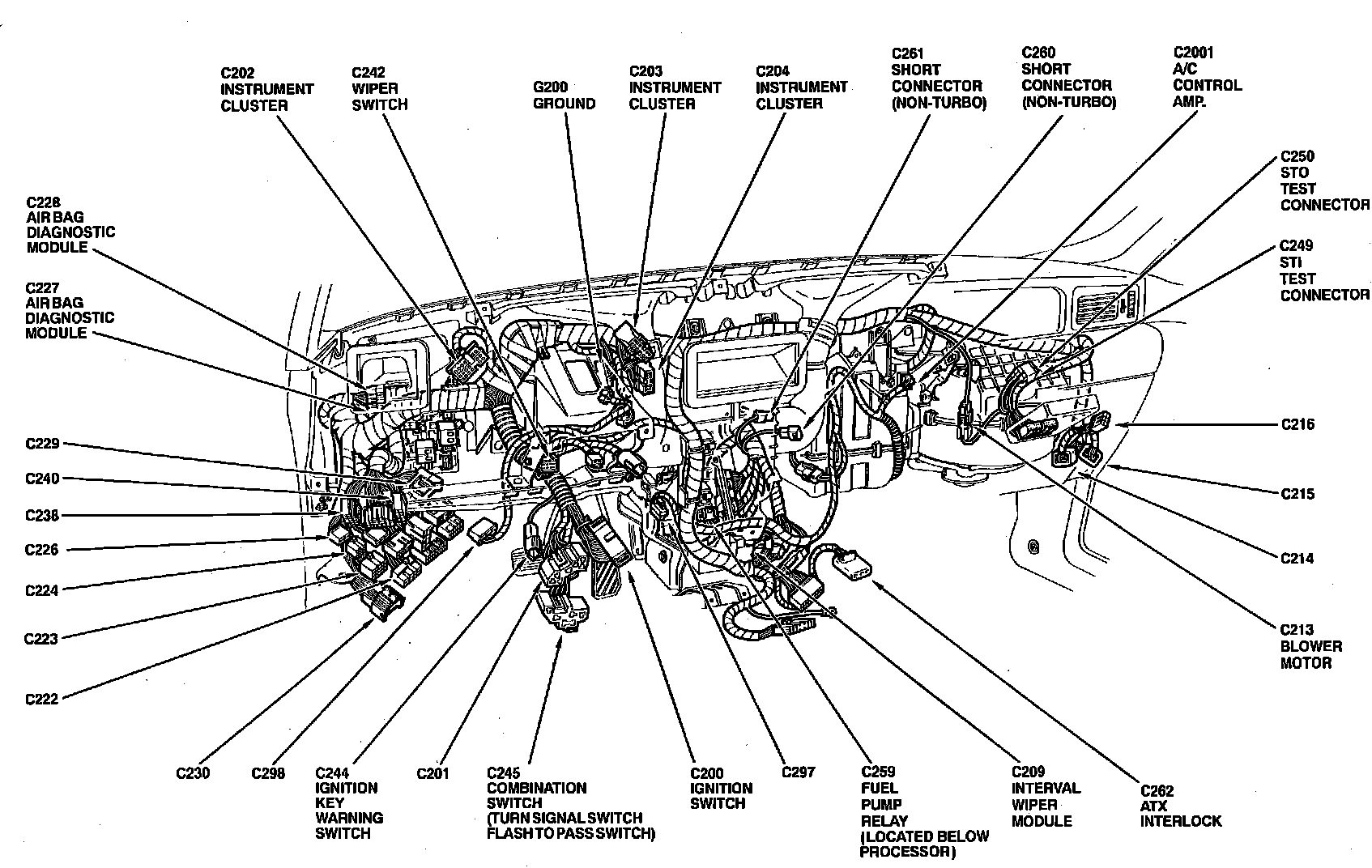

I/P Components.:




Behind RH Side Of I/P

Applicable to: 1991

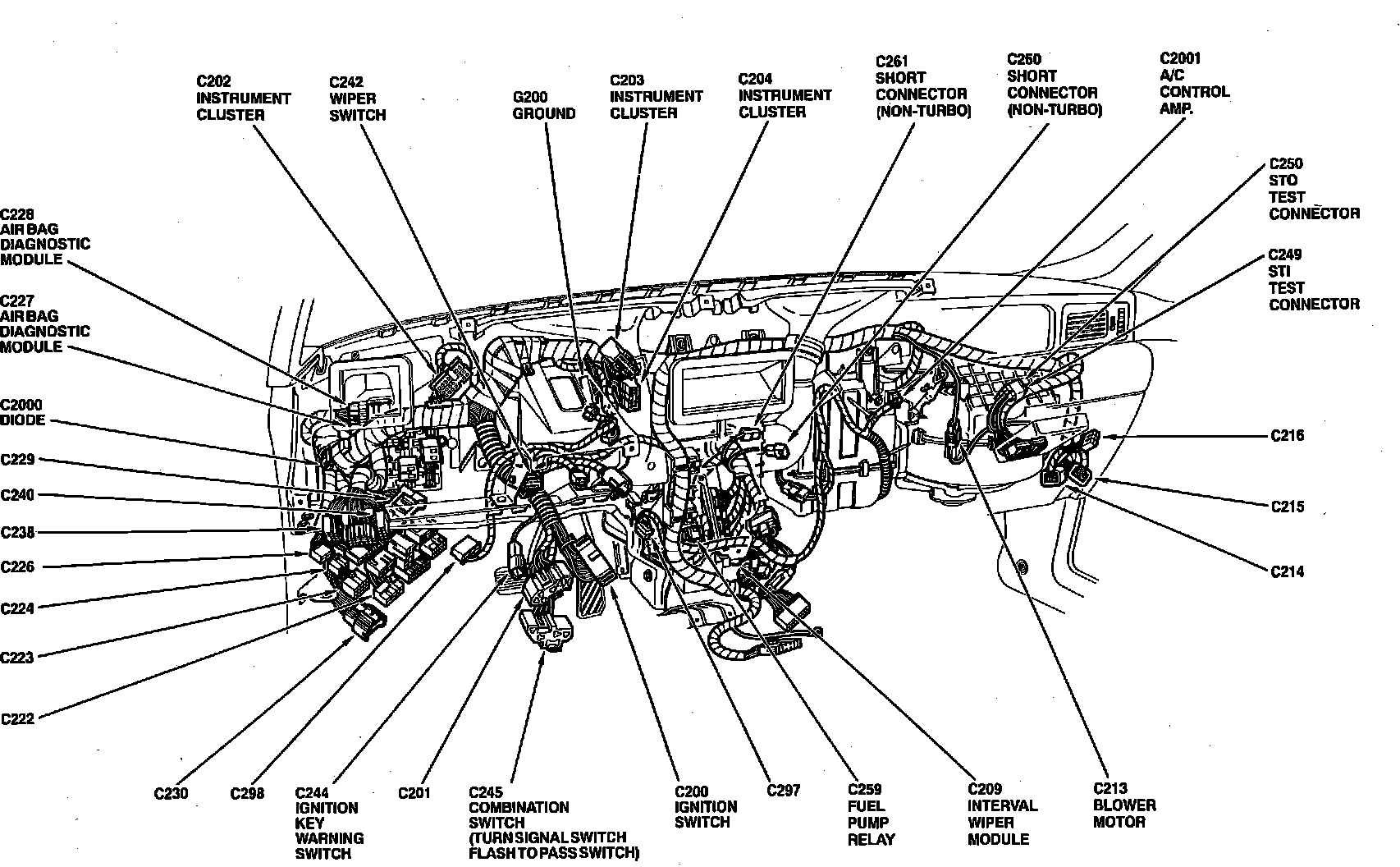

I/P Components.:




Behind RH Side Of I/P

Applicable to: 1992
