Connector Views

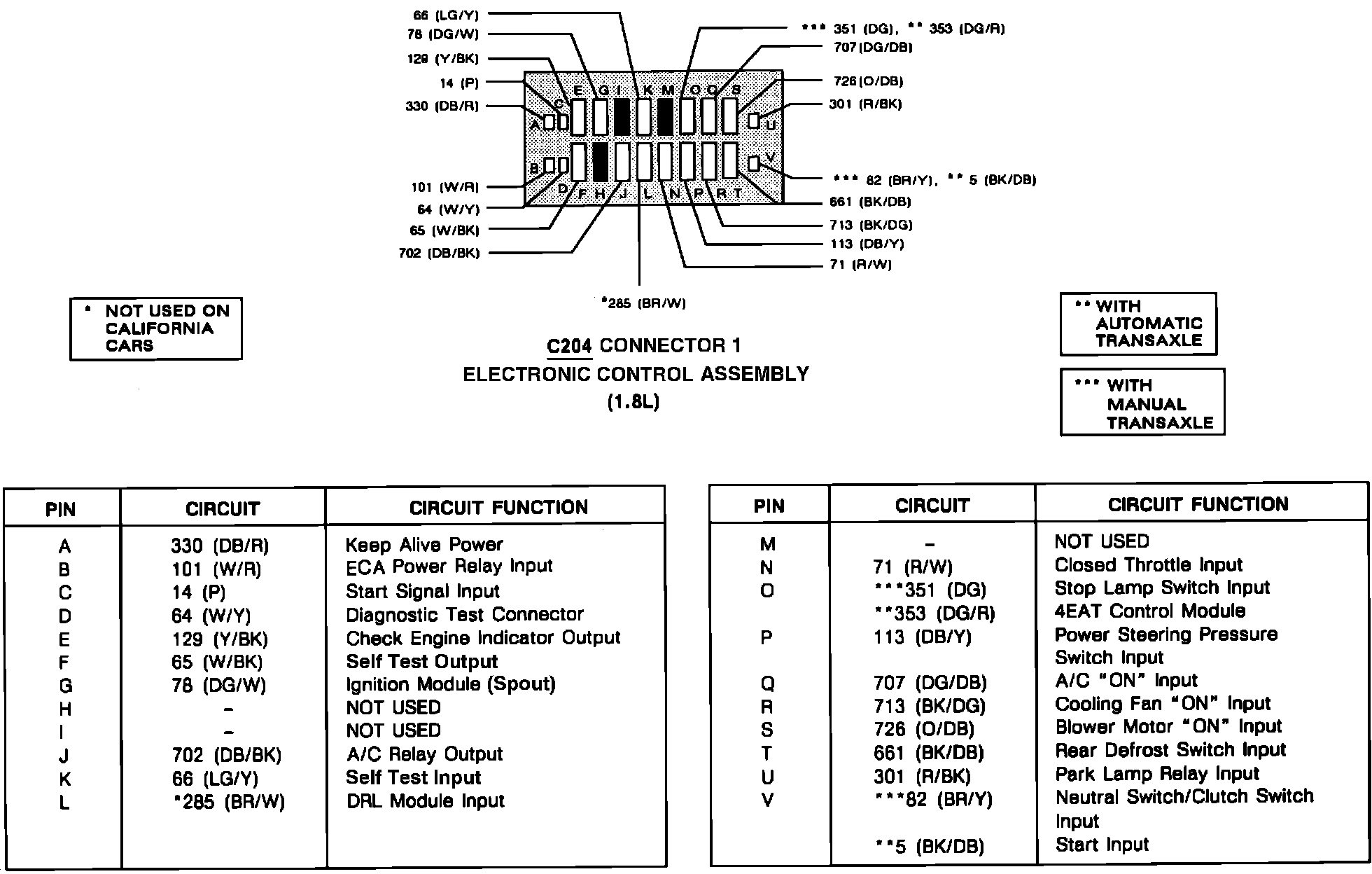

Electronic Control Assembly (ECA) Connector 1 C204:

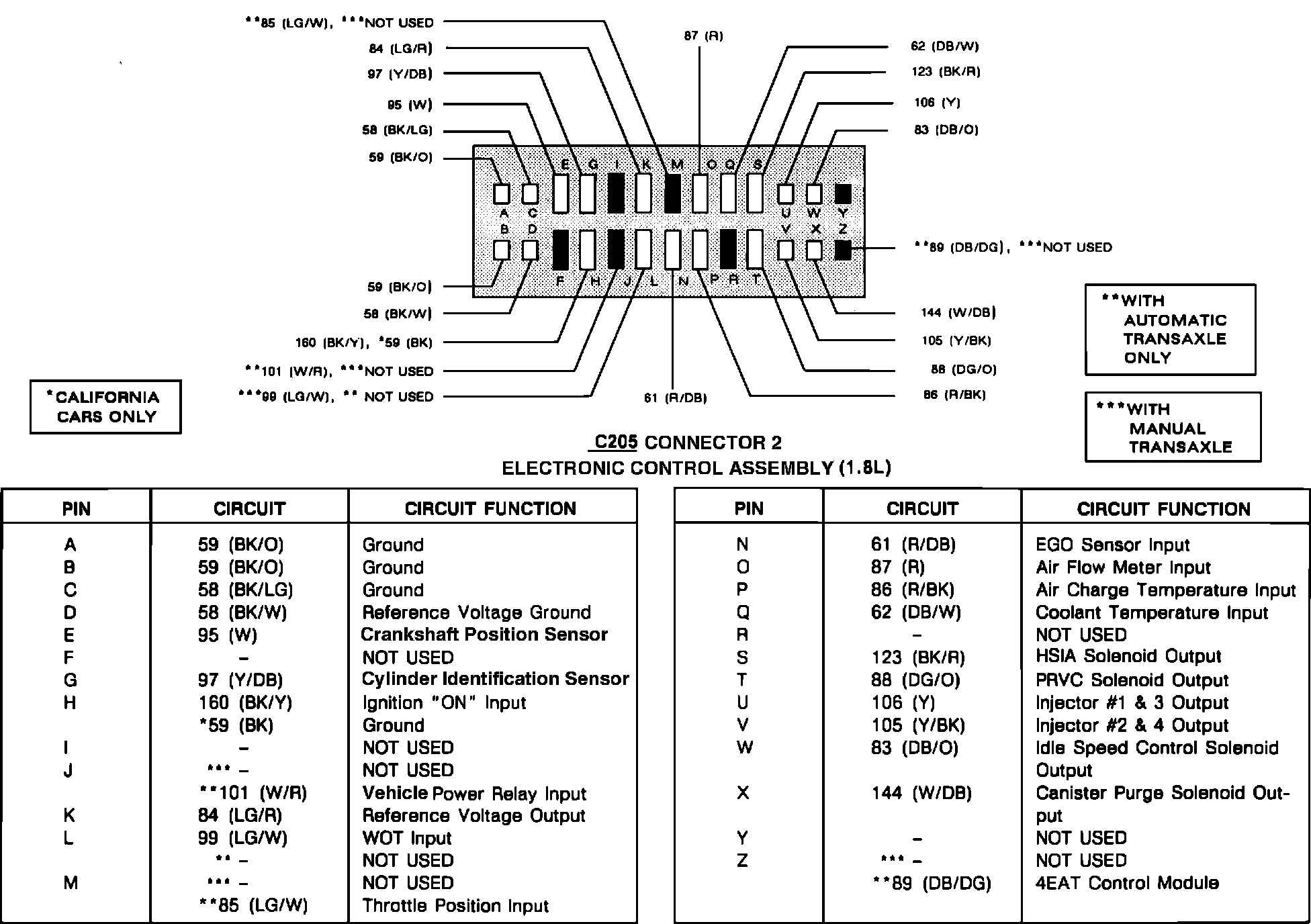

Electronic Control Assembly (ECA) Connector 2 C205:
