Wiring Diagrams

NOTE: Power window amplifier is also know as a power window module.

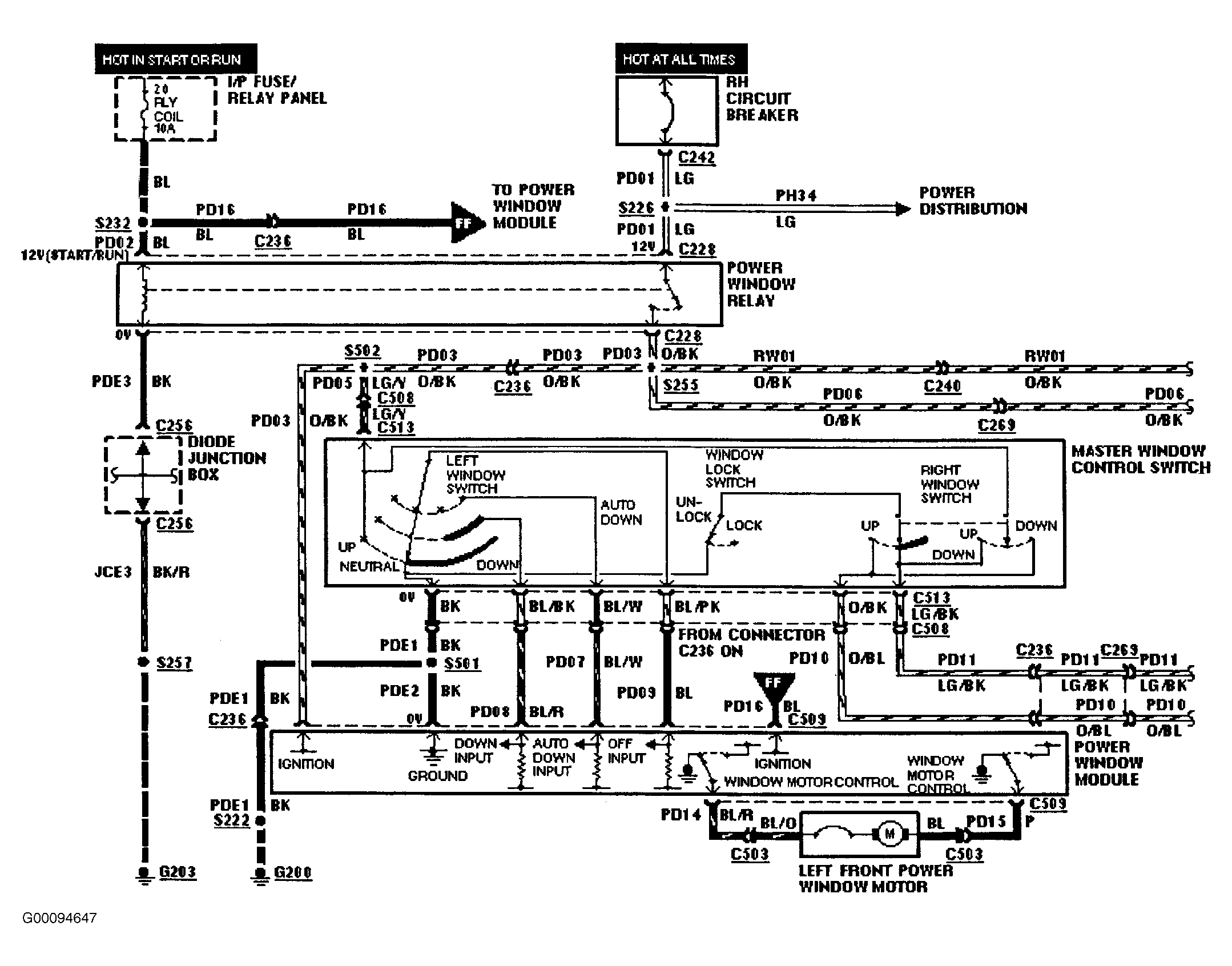

Fig 1: Power Window Wiring Diagram (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 2: Power Window Wiring Diagram (2 Of 2)

Courtesy of FORD MOTOR CO.
