Alignment Specifications

WARNING: This page is about a different car, the 2004 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: All specifications are given in degrees.

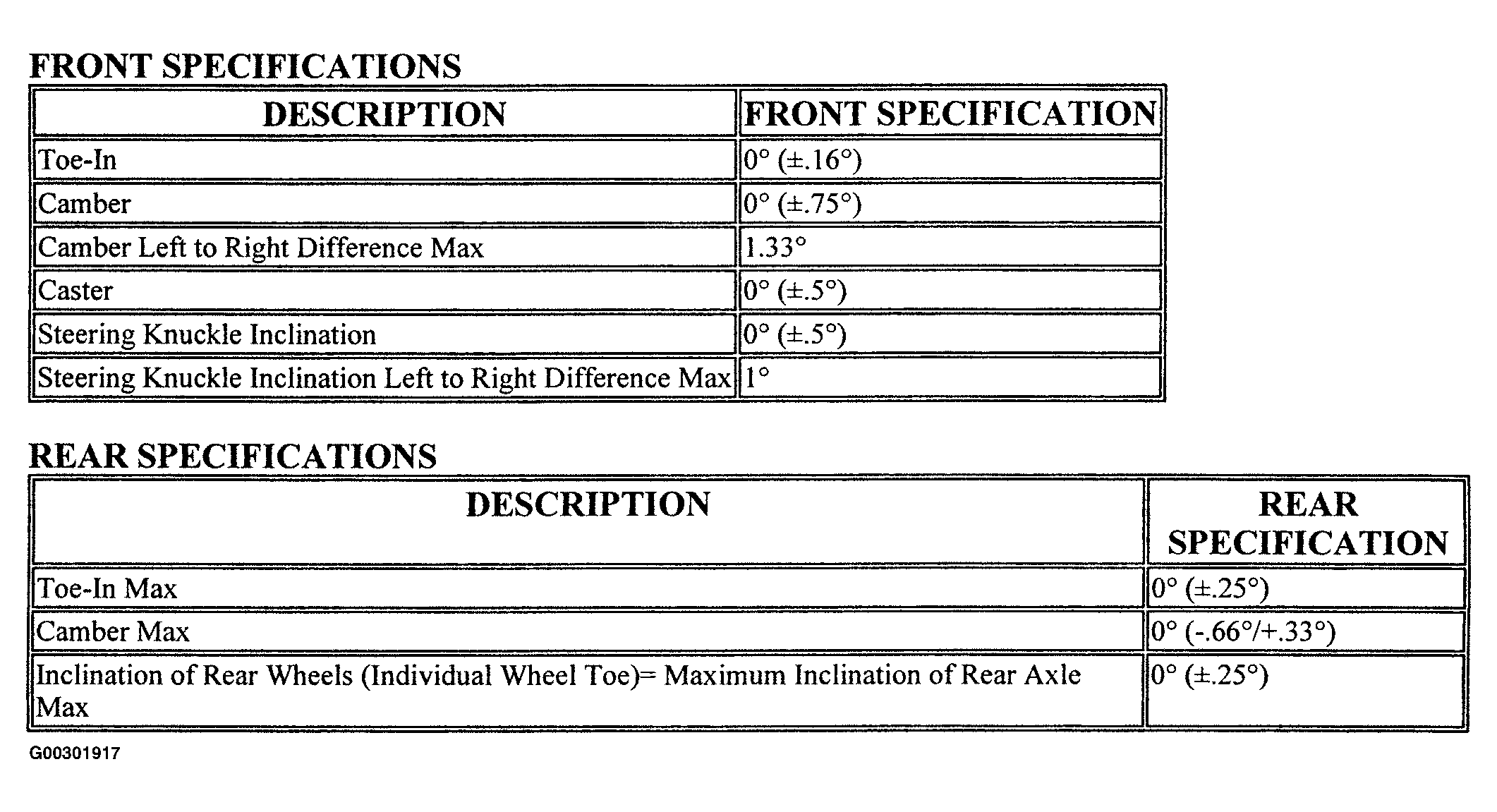

Fig 1: Wheel Alignment Specifications

Courtesy of DAIMLERCHRYSLER CORPORATION
