Glow Plug Control Module C2 - Black Connector End View

WARNING: This page is about a different car, the 2004 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.

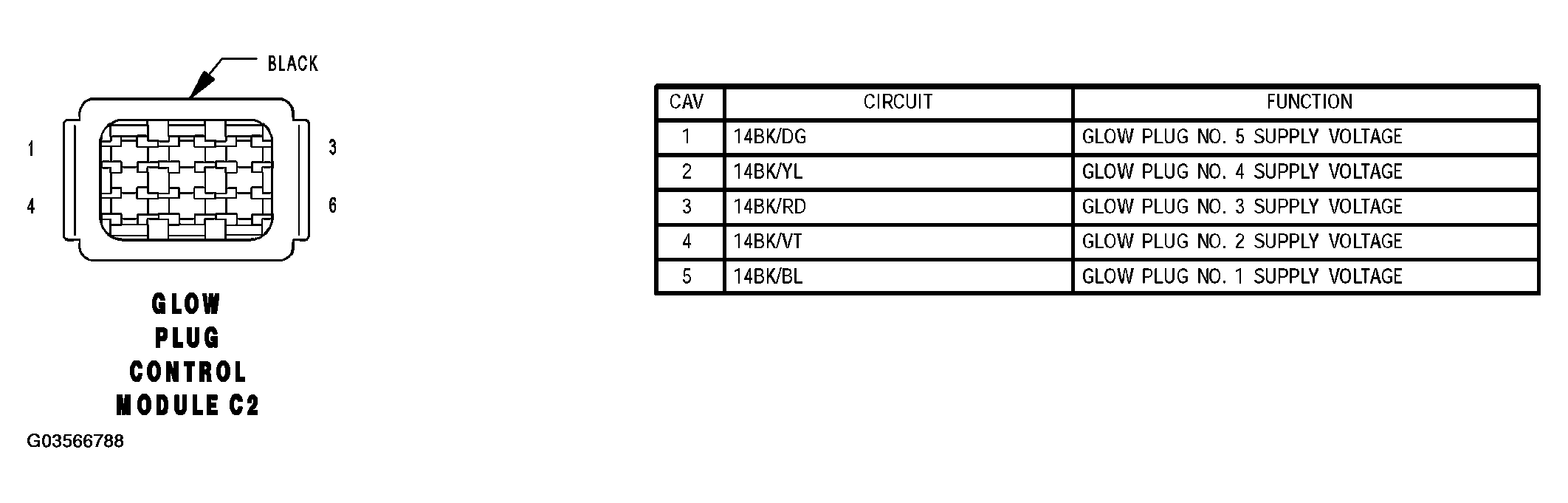

Fig 1: Glow Plug Control Module Connector End View (C2)
G03566788Courtesy of DAIMLERCHRYSLER CORP.
