Power Liftgate Control Module: Removal
WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the battery negative cable.
- Remove left D-pillar trim panel from the vehicle. Refer to INTERIOR article for the procedure.

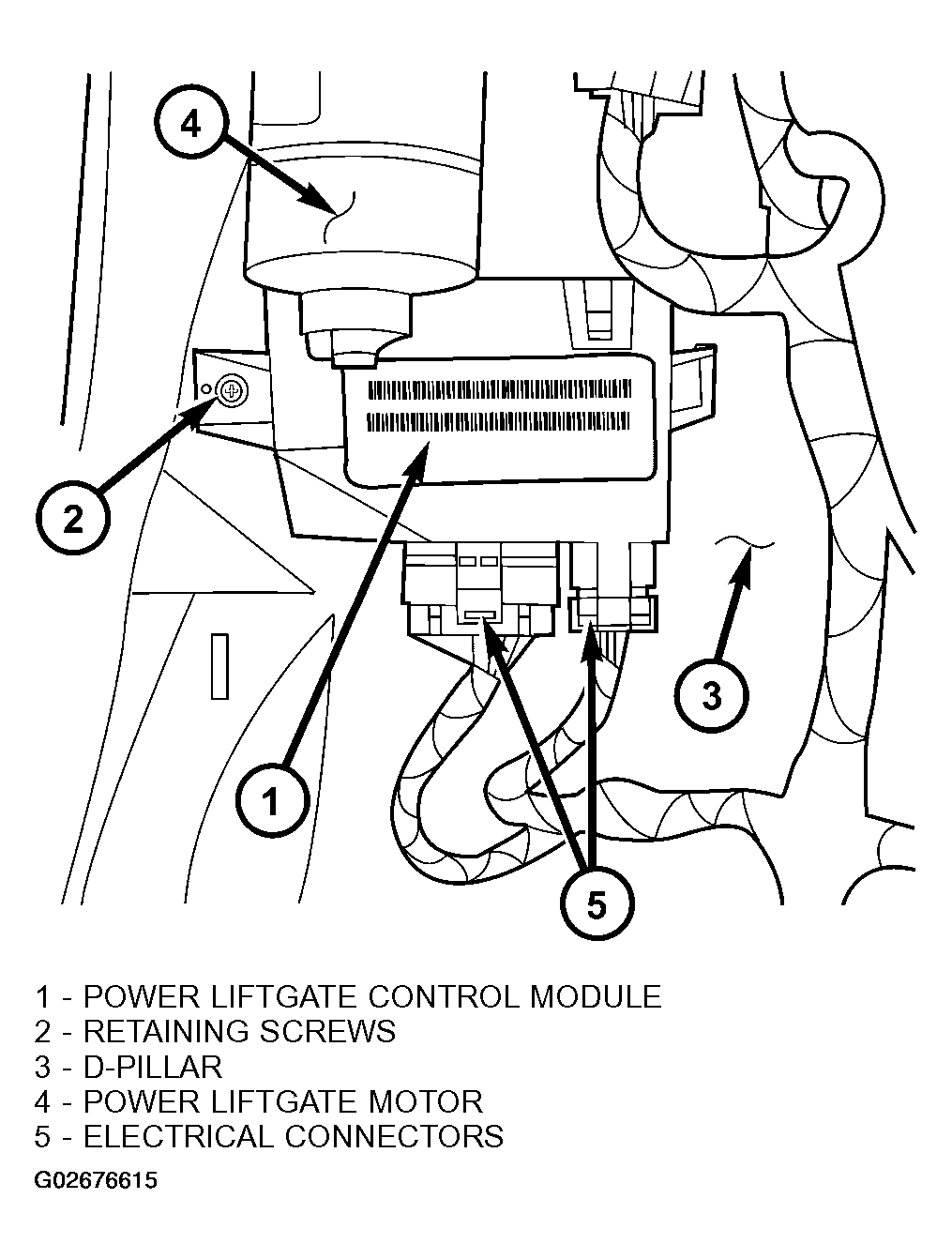

- Disconnect the wire harness connections from the PLG motor assembly (Figure).
- Remove the screw holding the PLG control module to the D-pillar (Figure).
- Remove the PLG control module from the vehicle.
