Removal - SBEC Controller
WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the battery shield.

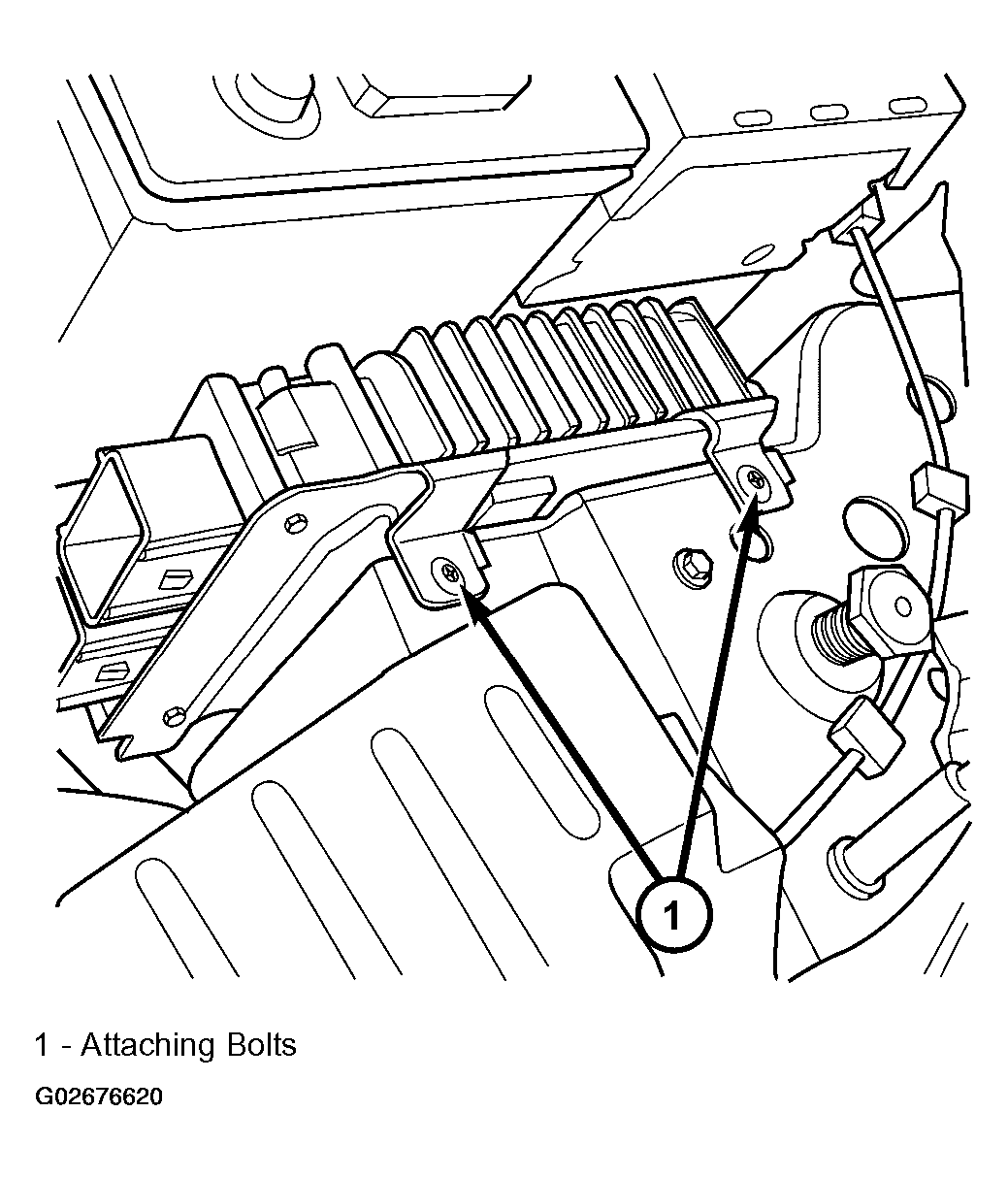

- Remove the 2 upper PCM bracket bolts (Fig 1).
Courtesy of DAIMLERCHRYSLER CORP.
- Remove the 2 PCM connectors.
- Remove the headlamp, refer to the HEADLAMP
for more information.

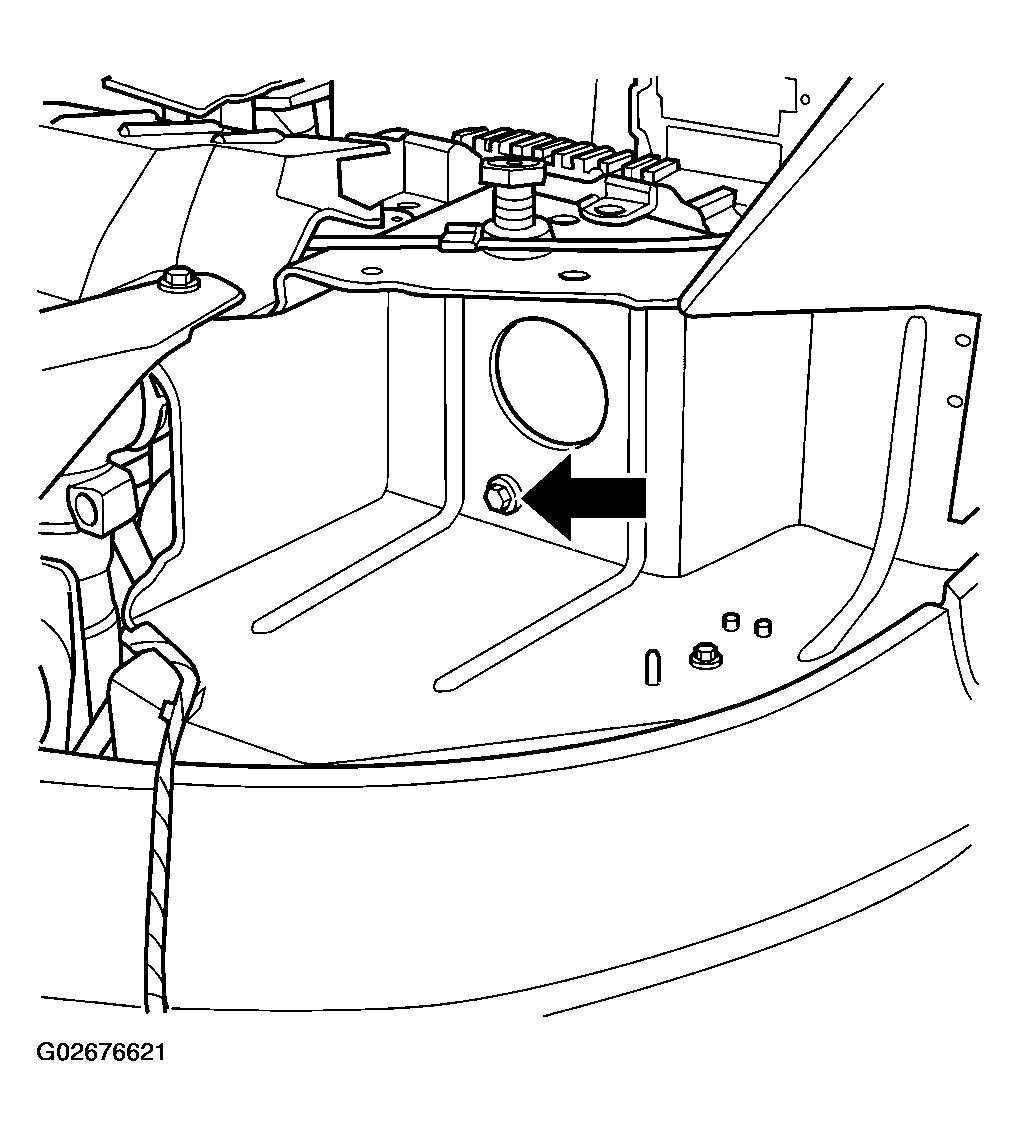

- Remove the lower PCM mounting bolt (Fig 2).
Courtesy of DAIMLERCHRYSLER CORP.
- Remove PCM.
