Integrated Power Module: Description

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

The Integrated Power Module (IPM) is a combination of the Power Distribution Center (PDC) and the Front Control Module (FCM). The IPM is located in the engine compartment, next to the battery on this model (Fig 1 ). The power distribution center mates directly with the Front Control Module (FCM) to form the IPM Fuse and Relay Center. The power distribution center (PDC) is a printed circuit board based module that contains fuses and relays, while the front control module contains the electronics controlling the IPM and other functions. This IPM connects directly to the battery positive via a four pin connector. The ground connection is via two other connectors. The IPM provides the primary means of voltage distribution and protection for the entire vehicle.

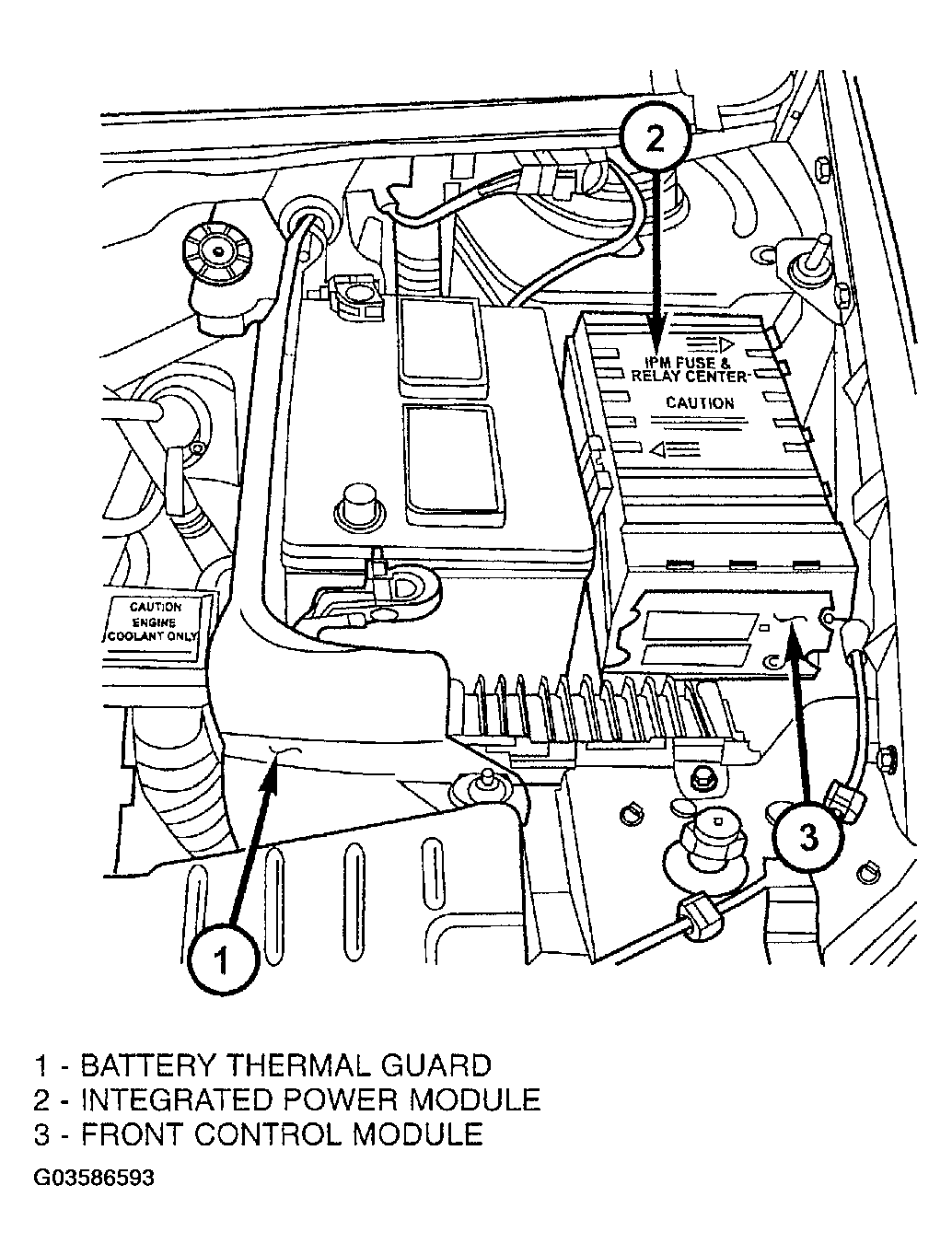

Fig 1: Identifying Battery Thermal Guard

Courtesy of DAIMLERCHRYSLER CORP.

The molded plastic IPM housing includes a base and cover. The IPM cover is easily opened or removed for service access by squeezing the two marked cover latches and has a fuse and relay layout map integral to the inside surface of the cover. This IPM housing base and cover are secured in place by an IPM mounting bracket. This mounting bracket is designed to allow the IPM to rotate counter-clockwise once the locking tab is disengaged. The IPM mounting bracket is secured in place by bolts threaded into the left front wheel house.
