Throttle Position Sensor: Description

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

The throttle position sensor mounts to the side of the throttle body (Fig 1) or (Fig 2).The sensor connects to the throttle blade shaft. The TPS is a variable resistor that provides the Powertrain Control Module (PCM) with an input signal (voltage).

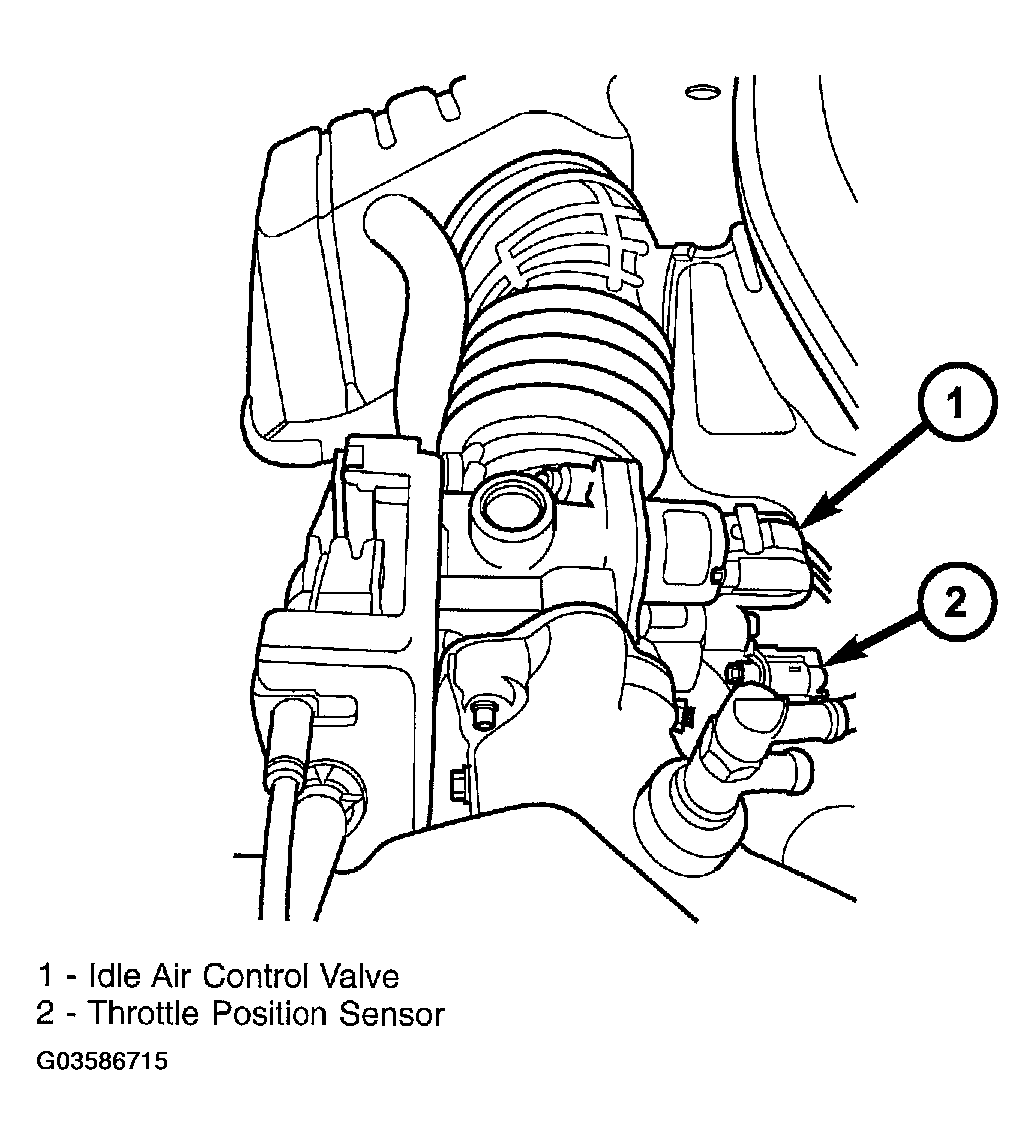

Fig 1: Identifying Throttle Position Sensor - 2.4L Engine

Courtesy of DAIMLERCHRYSLER CORP.

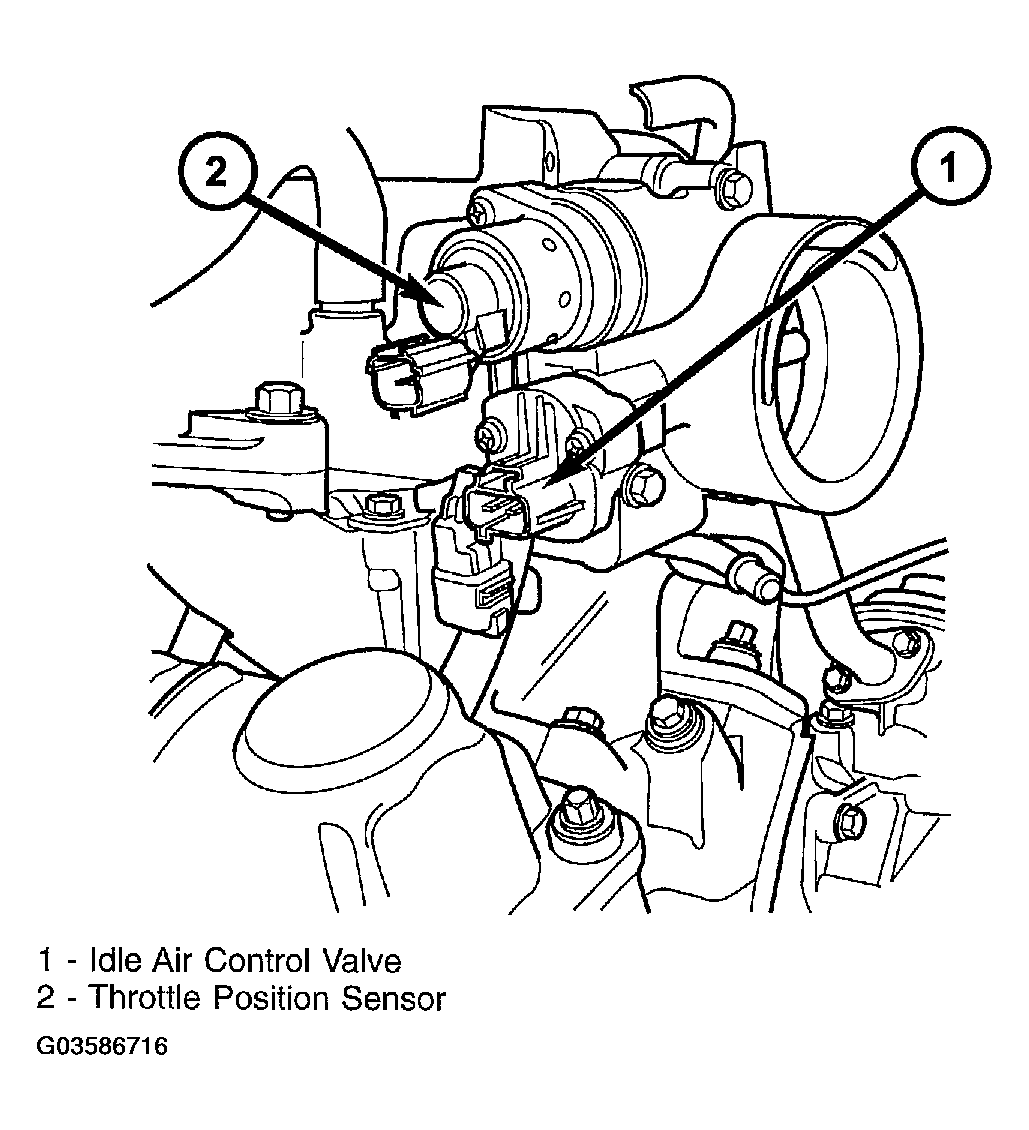

Fig 2: Identifying Throttle Position Sensor - 3.3/3.8L Engine

Courtesy of DAIMLERCHRYSLER CORP.
