Standard Procedure - Module Lamp Replacement

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the overhead console (Refer to REMOVAL  ).
  2. Using a flat blade screwdriver twist out socket/ lamp (Fig 1 ).

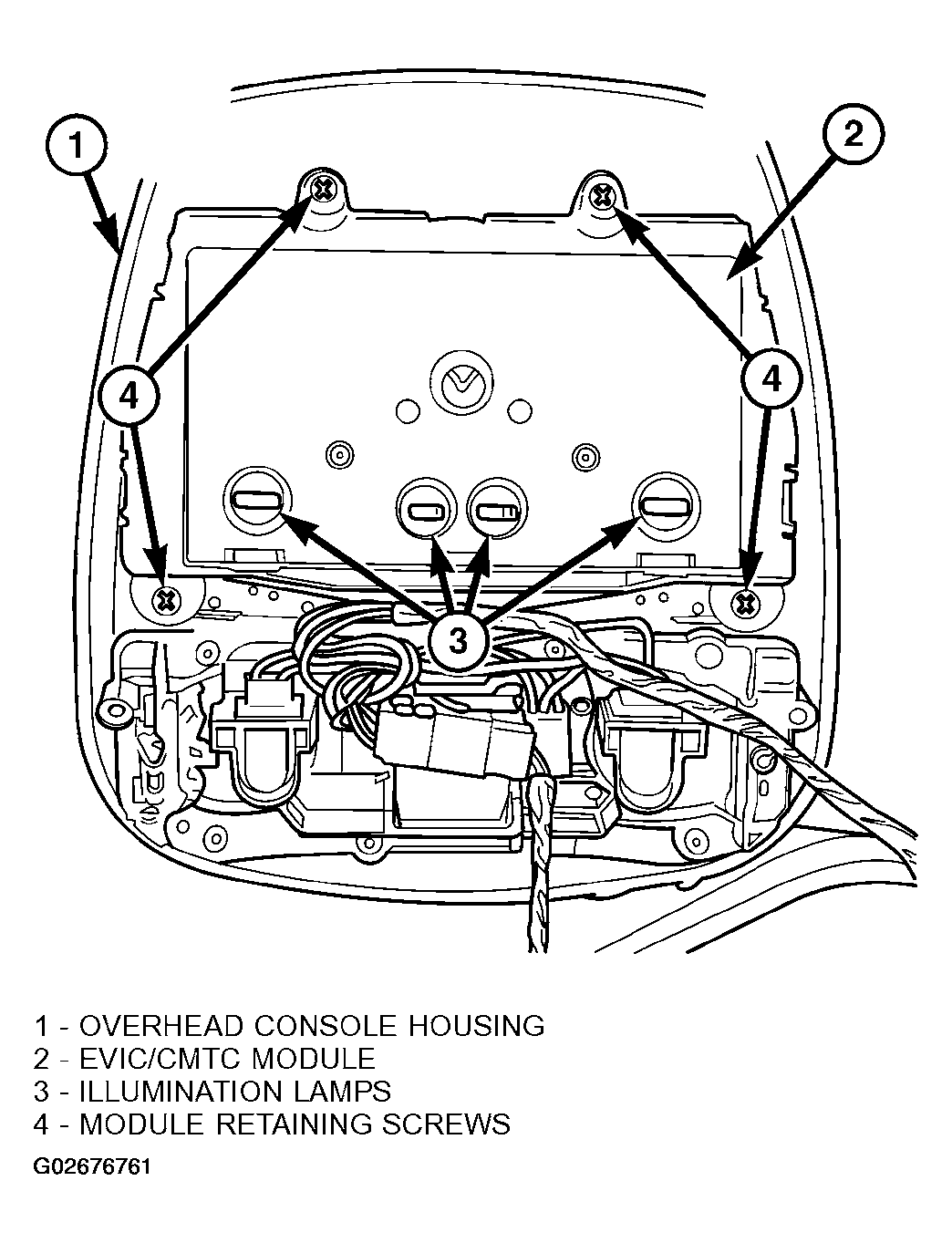

    Fig 1: Identifying EVIC
    G02676761Courtesy of DAIMLERCHRYSLER CORP.
  3. Replace lamp(s) as necessary.
