Fuel Delivery: Notes

Major components of the fuel delivery system are an electric fuel pump, fuel supply and return lines, a pressure regulator, fuel rail, and fuel injectors. See Fig 1.

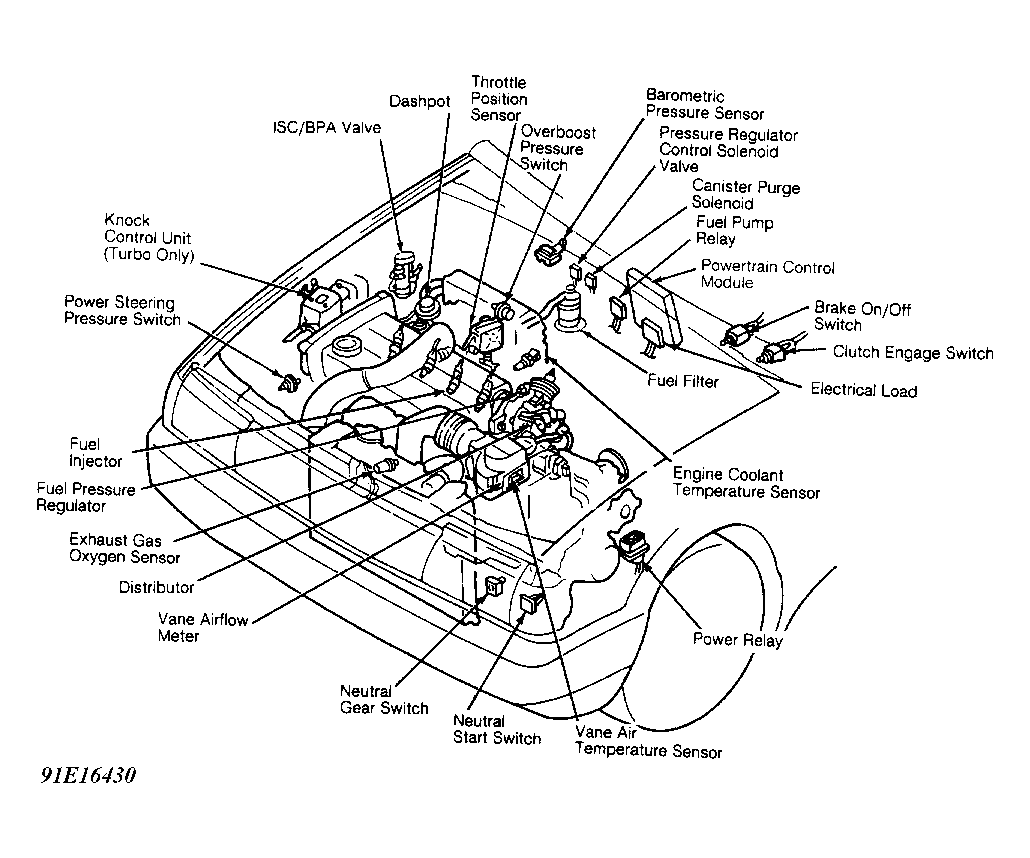

Fig 1: Locating Fuel Delivery System Components (Capri)
G91E16430Courtesy of FORD MOTOR CO.
