Cylinder Head

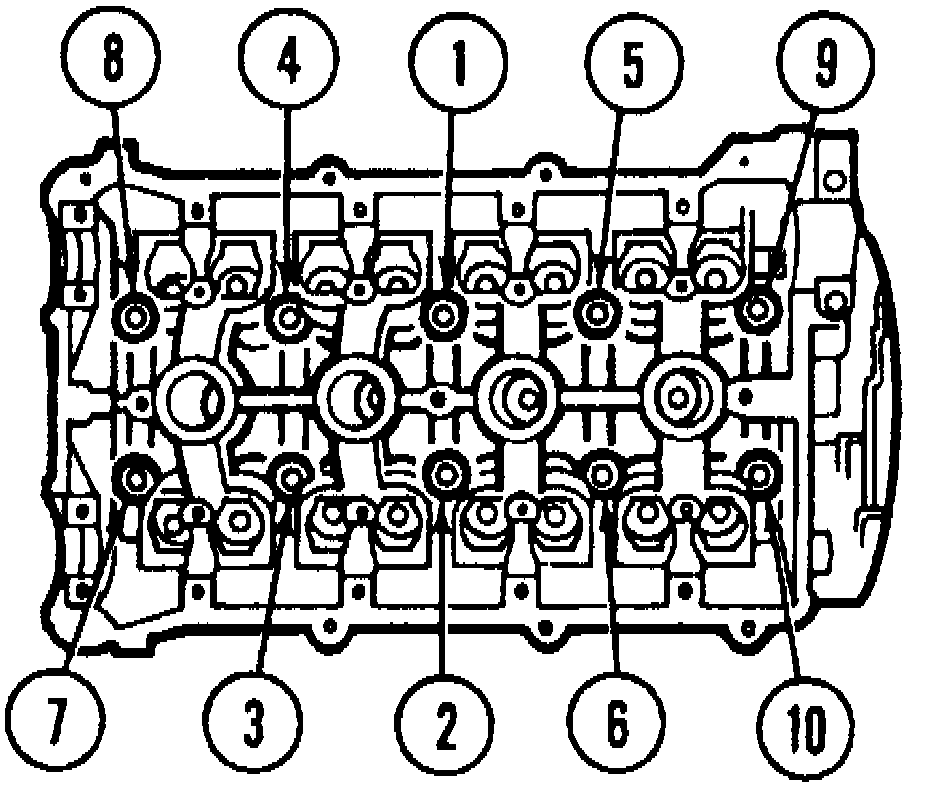

Fig. 5 Cylinder Head Bolt Tightening Sequence:

Tighten cylinder head bolts in sequence in two steps:
- First, Torque bolts to 15 - 25 ft lb
- Then repeat sequence and torque bolts to 56 - 59 ft lb.
