No-Load Test

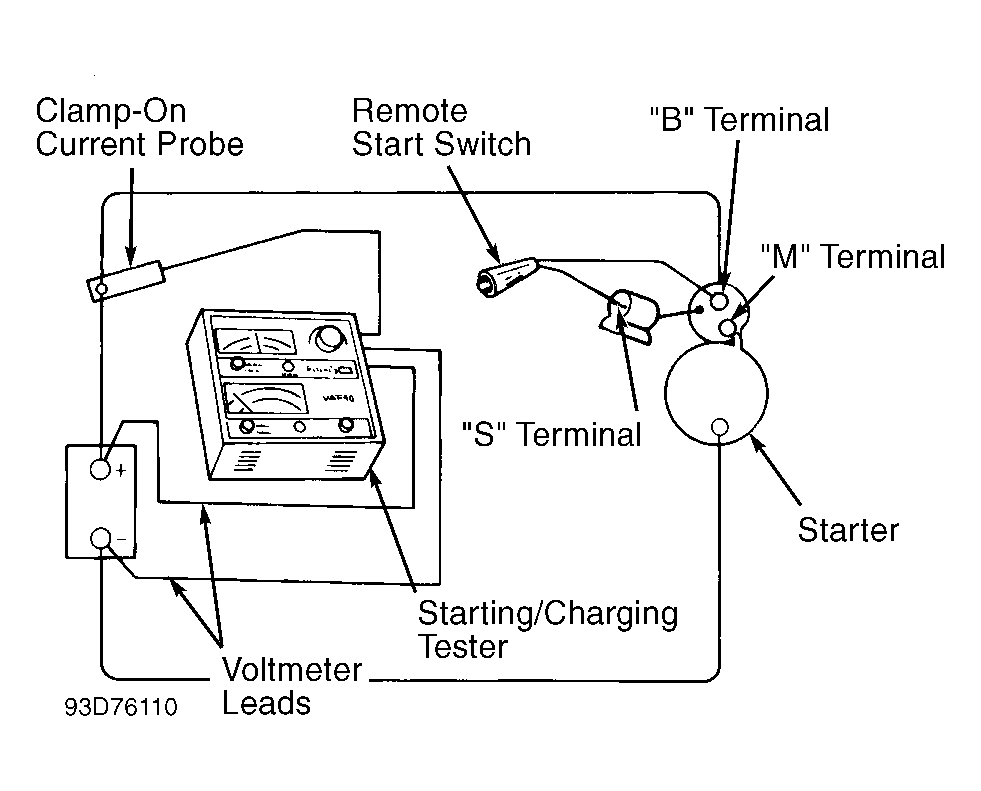

- Secure starter in vise. Connect jumper lead between battery positive post and solenoid terminal "B". Connect remote start switch between battery positive post and solenoid terminal "S". See Fig 1 .
- Starter should rotate at a smooth, consistent speed. If rotation is not smooth, ensure shim adjustment for armature-to-starter housing clearance is correct. Replace or repair starter if current exceeds specification. See STARTER SPECIFICATIONS TABLE .
