Temperature Control Module: Installation
WARNING: This page is about a different car, the 1995 Ford RV Cutaway, 1995 Ford Econoline, 1995 Ford Cutaway, and 1995 Ford Club Wagon. However, it is still accessible from the selected car via links, so may be relevant.
- Center temperature control lever between full warm and full cool positions. Center lever on potentiometer wiper lever on bottom of temperature control module.
- Set module straight down onto mounting bracket so that potentiometer wiper lever fits into temperature control lever slot and the tab on the module housing is lined up with the box on the bracket side of the control faceplate.
- Slide module forward so tab fits into its box and the locating pin on the module foot fits into the hole in the bracket.

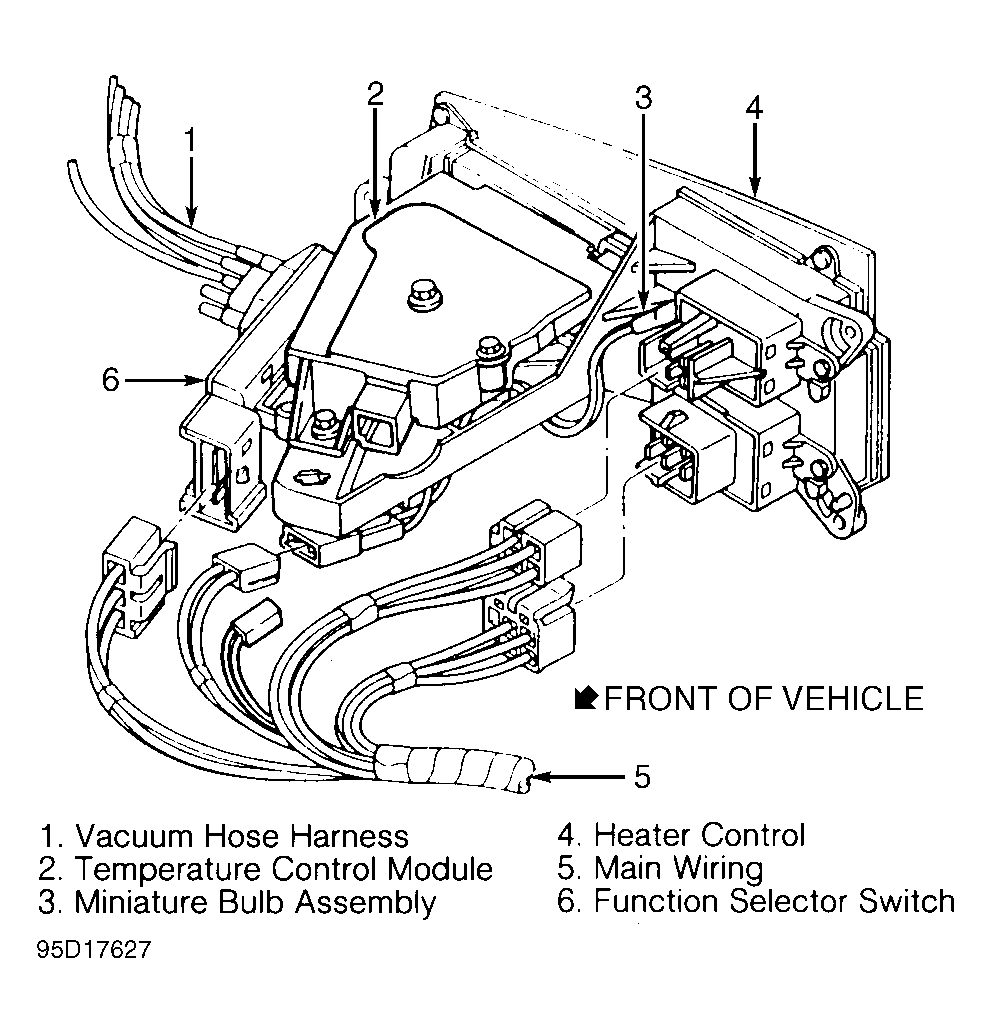

- Install screw nearest the control faceplate. Install screws in remaining attachment locations. Connect electrical connection. To finish installation, reverse removal procedure. See Figure .
