Removal & Installation

  1. Disconnect the battery ground cable.
  2. Remove the left hand cowl side trim panel.
  3. Remove the two timer module bolts. See Fig 1 .
  4. Disconnect the timer module electrical connector and remove the timer module from the vehicle. See Fig 2 .
  5. To install, reverse removal procedure.

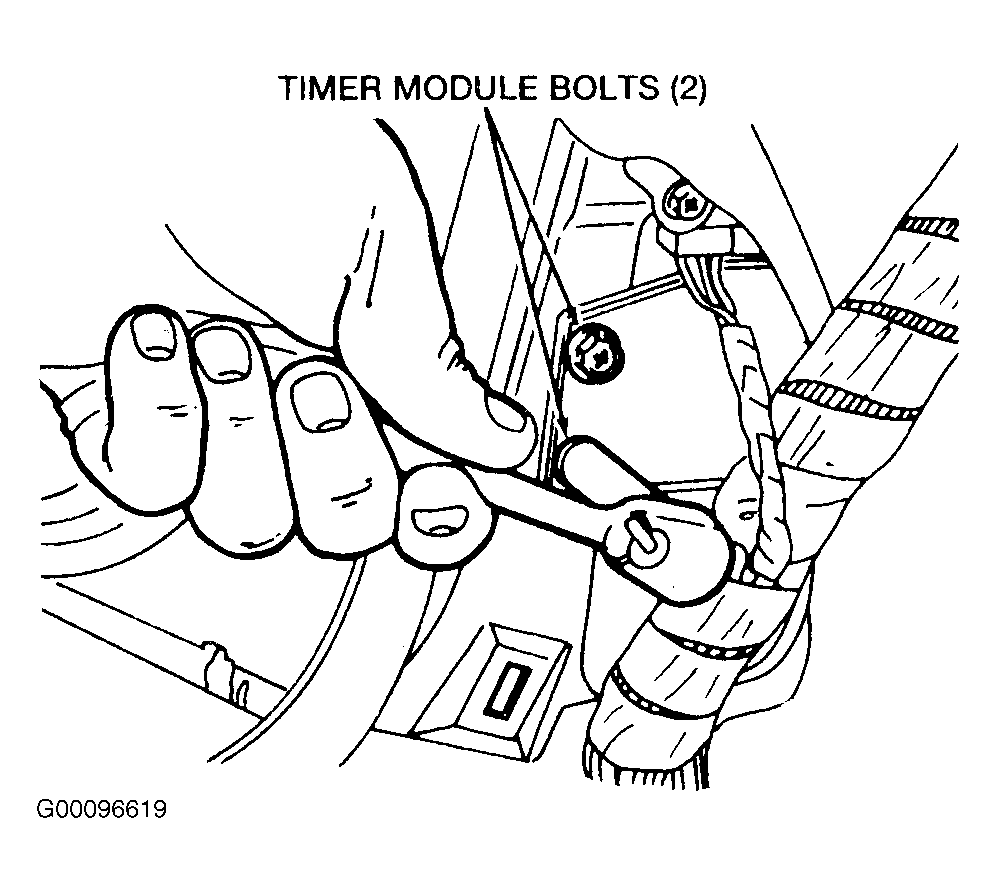

Fig 1: Removing Timer Module
G00096619Courtesy of FORD MOTOR CO.

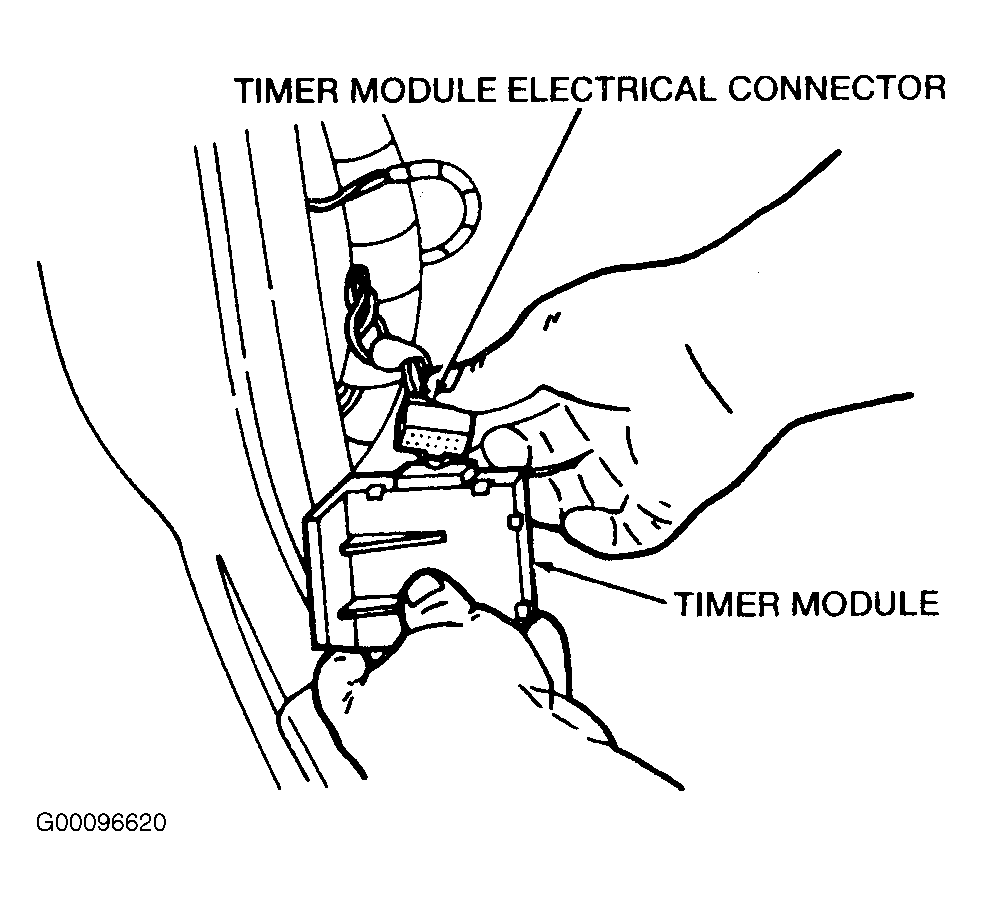

Fig 2: Removing Timer Module Electrical Connector
G00096620Courtesy of FORD MOTOR CO.
