Speed Control Module: Removal

Disconnect the battery ground cable.
Remove the console compartment door from the control console. See Fig 1 .

Fig 1: Removing Console Compartment Door
Courtesy of FORD MOTOR CO.
Remove the right hand inner instrument panel lower cover and left hand inner instrument panel lower cover.

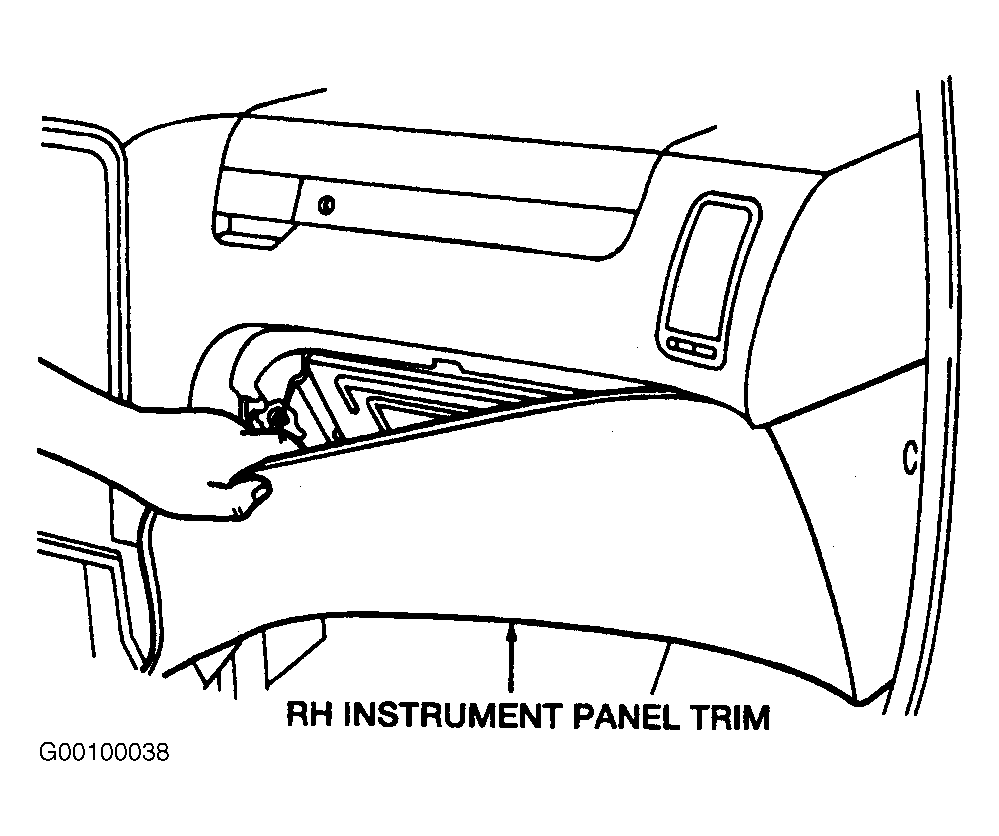

Fig 2: Removing Right Hand Inner Instrument Panel Lower Cover
Courtesy of FORD MOTOR CO.

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

Disconnect the speed control module electrical connector. See Fig 3 .
Remove the three speed control module nuts from the speed control module. See Fig 4 .
Remove the speed control module from the vehicle.

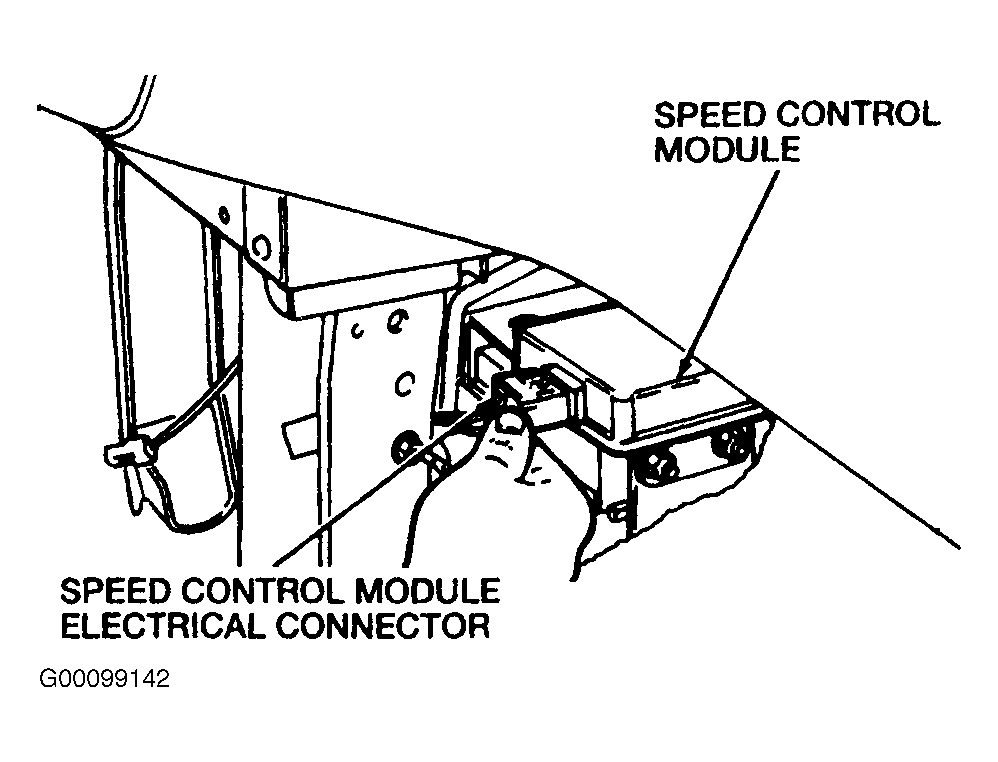

Fig 3: Disconnecting Speed Control Module Connector

Courtesy of FORD MOTOR CO.

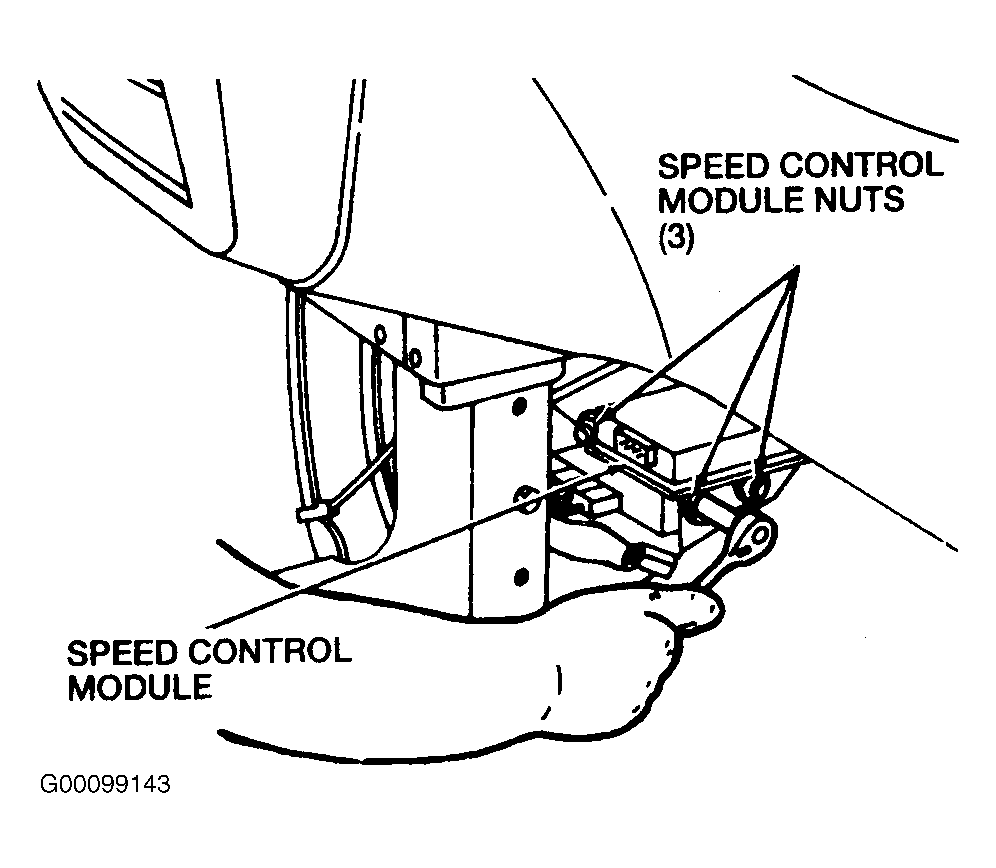

Fig 4: Removing Speed Control Module

Courtesy of FORD MOTOR CO.
