Connector Identification

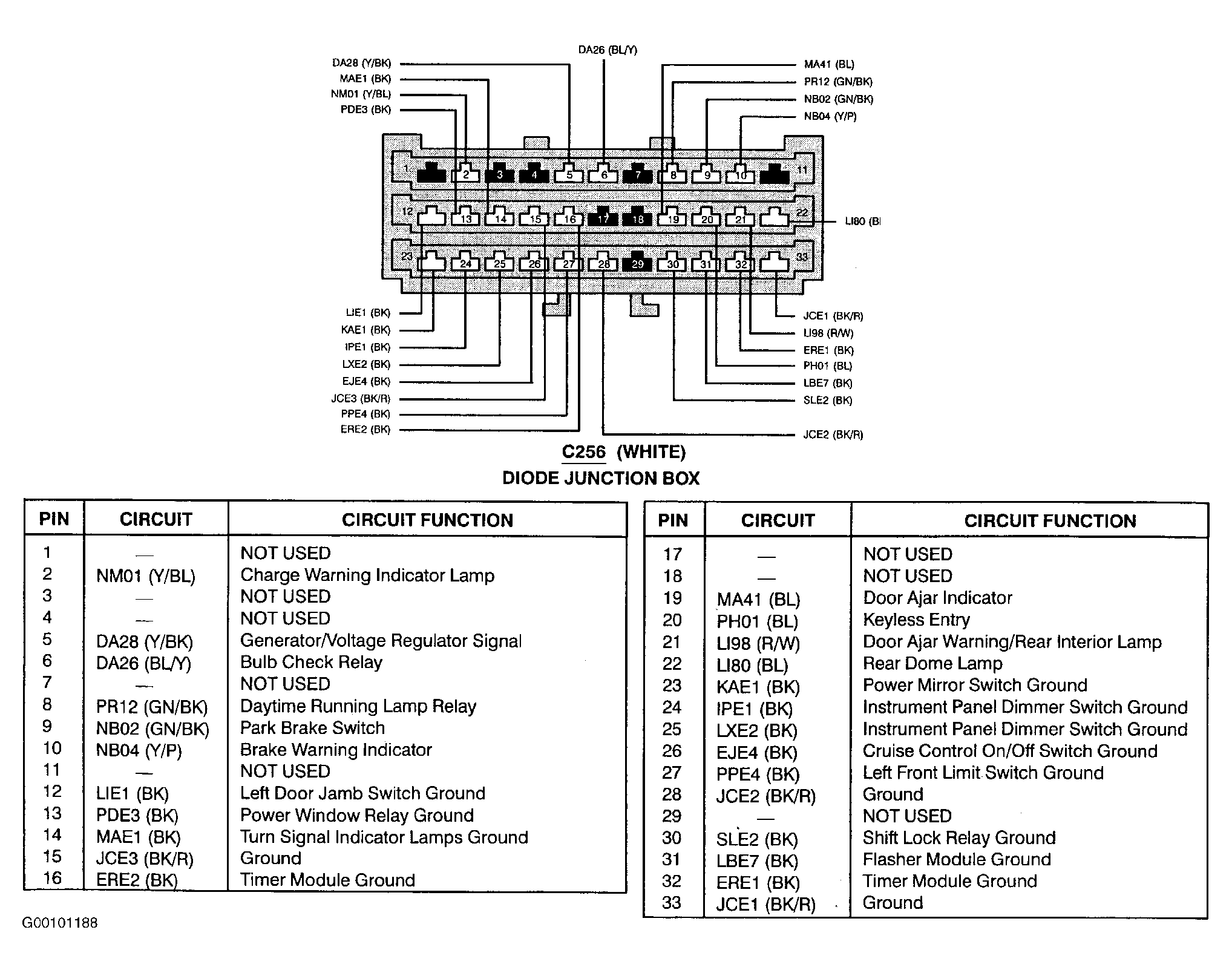

Fig 1: Identifying Diode Junction Box Connector Terminals

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Door Lock Touchpad Connector Terminals

Courtesy of FORD MOTOR CO.

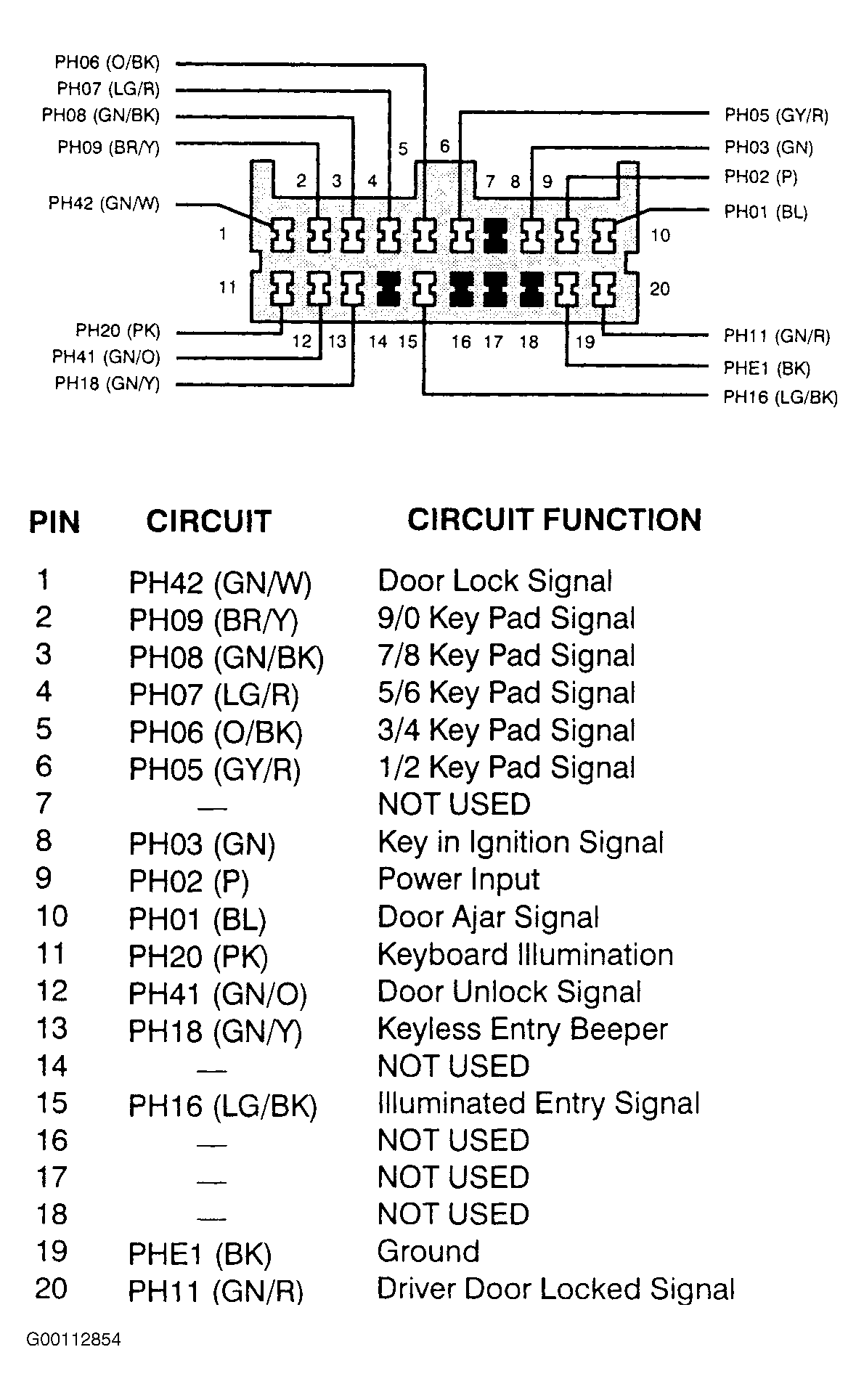

Fig 3: Identifying Electronic Door Lock Control Processor Connector C1 Terminals

Courtesy of FORD MOTOR CO.

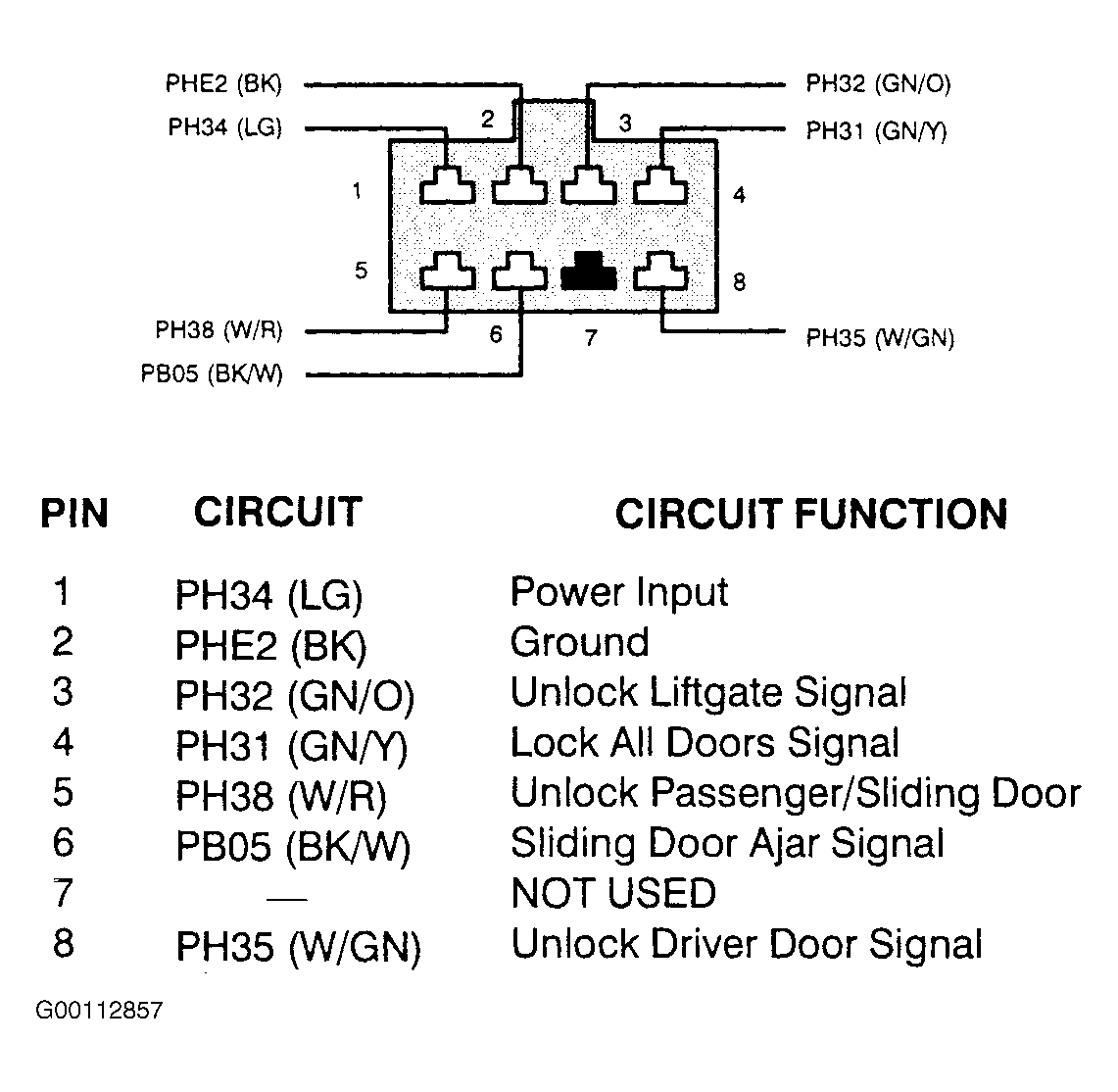

Fig 4: Identifying Electronic Door Lock Control Processor Connector C2 Terminals

Courtesy of FORD MOTOR CO.

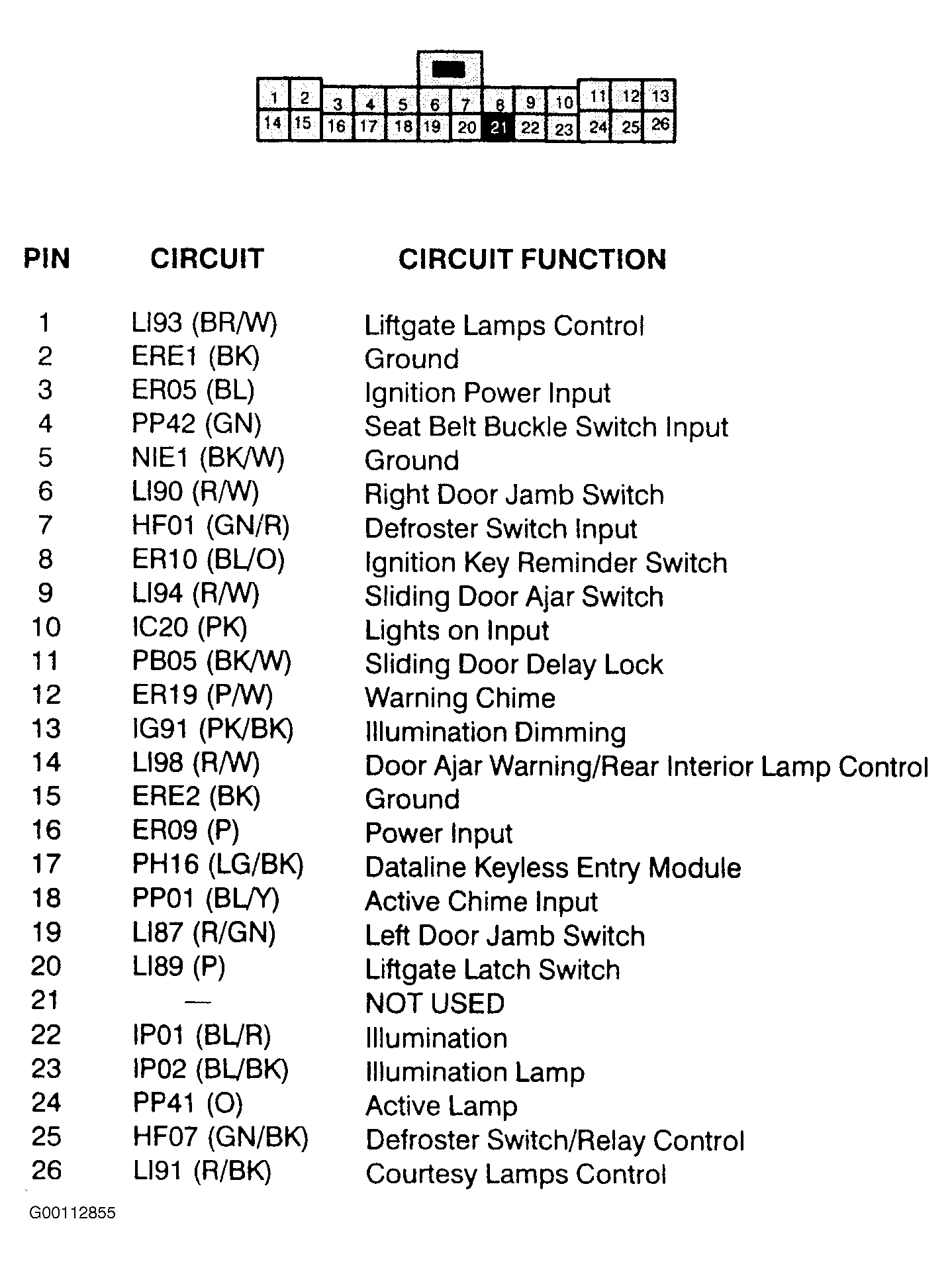

Fig 5: Identifying Timer Module Connector Terminals

Courtesy of FORD MOTOR CO.
